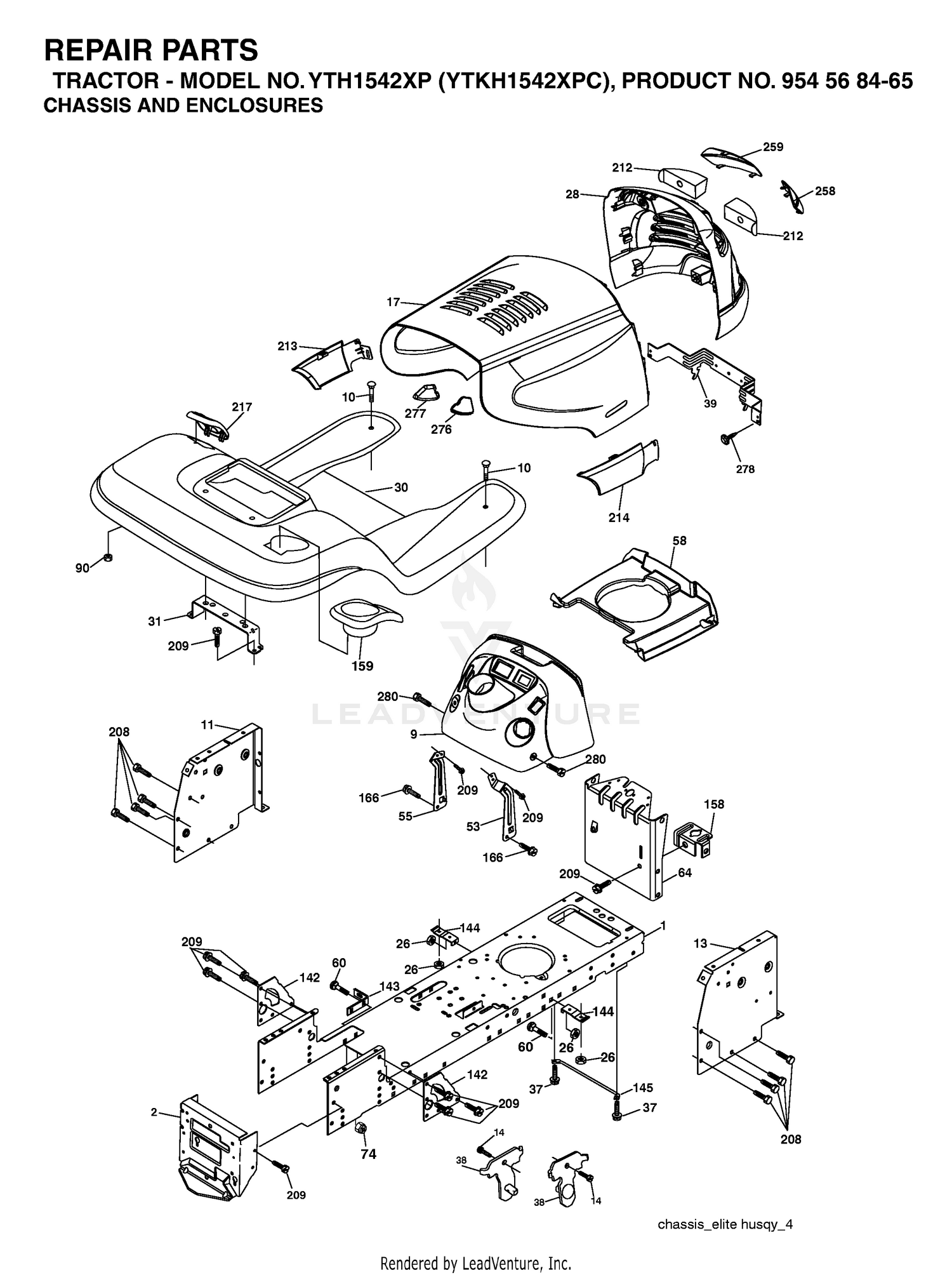

| Ref | Part Number | Description |
|---|
| 1 |
579841401 |
KITS.CHASSIS.STAMPED.SERVICE This part replaces 532174619. Price: $379.99 |
| 2 |
125-7148 |
PLUG Price: $3.26 |
| 2 |
532176554 |
DRAWBAR, 12GA Price: $37.99 |
| 3 |
125-7149 |
GASKET Price: $9.66 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX Price: $9.99 |
| 13 |
532172106 |
PANEL ASM, DASH RH Price: $14.99 |
| 14 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 20 |
125-6993 |
NUT Price: $12.98 |
| 23 |
125-7152 |
SENSOR Price: $104.88 |
| 24 |
125-7150 |
GEAR Price: $29.73 |
| 25 |
125-7176 |
WASHER-SEAL Price: $7.31 |
| 26 |
125-7200 |
O-RING Price: $2.49 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 27 |
125-7208 |
BOLT Price: $3.77 |
| 28 |
125-7209 |
BOLT Price: $2.74 |
| 30 |
532192814 |
FENDER.W/CUPHOLDER.ORANGE This part replaces 532191815. Price: $219.99 |
| 31 |
532139976 |
BRACKET.SUPPORT.FENDER Price: $14.99 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
532175710 |
BRACKET.ASM.PIVOT.MOWER.REAR Price: $9.99 |
| 39 |
532407807 |
BRACKET PIVOT This part replaces 532174714. Price: $27.99 |
| 58 |
532184460 |
DUCT AIR Price: $19.99 |
| 60 |
872140606 |
Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4 Price: $4.99 |
| 64 |
532174997 |
DASH LOWER Price: $24.99 |
| 74 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 90 |
532124346 |
NUT.PUSH.3/16 Price: $6.99 |
| 142 |
532175702 |
PLATE REINFORCEMENT Price: $7.99 |
| 143 |
532186689 |
BRACKET, SWAYBAR CHASSIS Price: $5.99 |
| 144 |
532175582 |
BRKT, FOOT REST Price: $4.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 158 |
532162037 |
BRACKET PARKING BRAKE Price: $3.39 |
| 159 |
532191120 |
CUPHOLDER.RIGHT.GREY This part replaces 532185434. Price: $8.99 |
| 206 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 217 |
532179132 |
CONSOLE FUEL WINDOW GRAY This part replaces 532185436. Price: $7.99 |
| 280 |
817000616 |
SCREW 3/8-16X1 This part replaces 817060616. Price: $5.99 |
