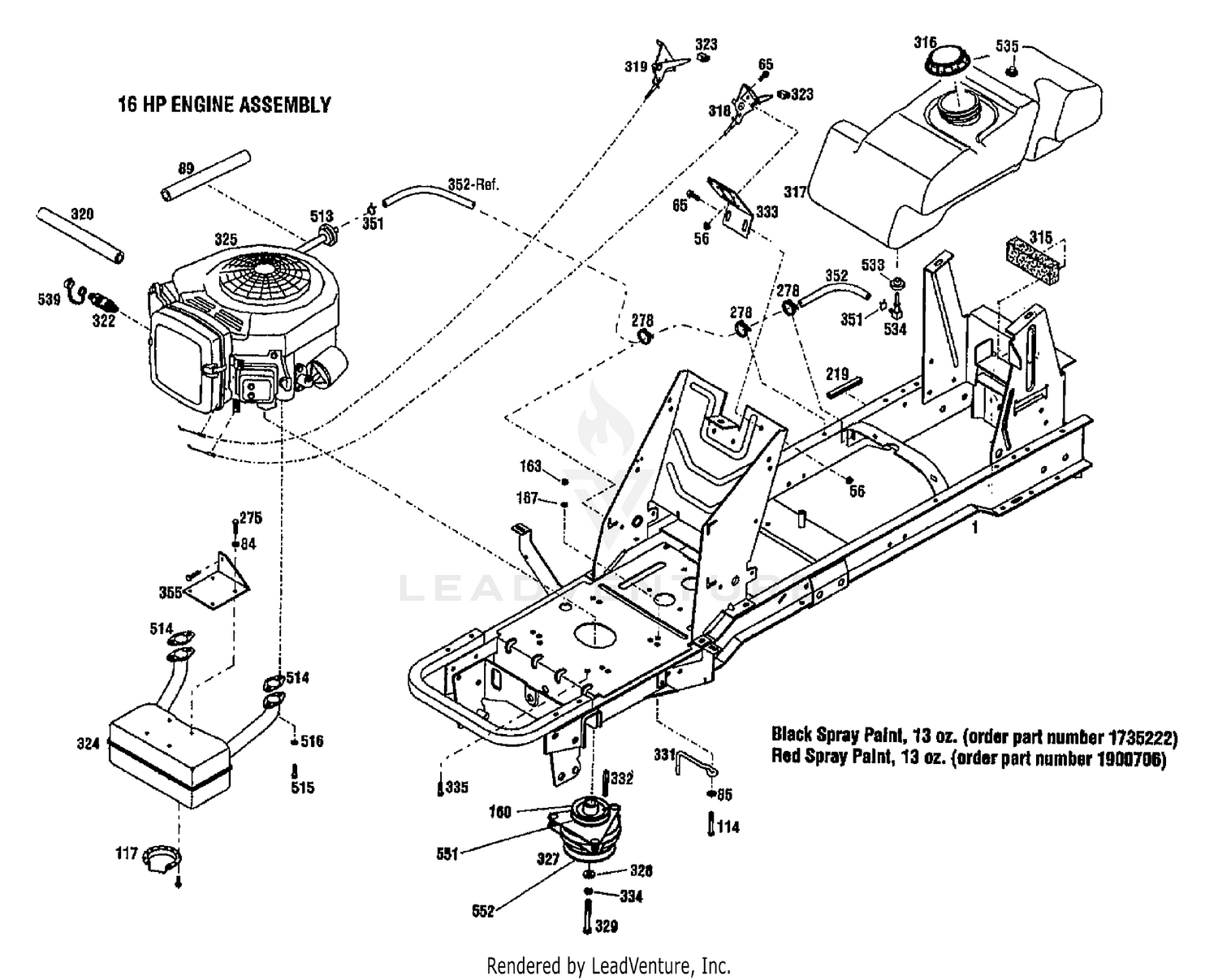

| Ref | Part Number | Description |
|---|
| 1 |
1772924001 |
FRAME BLACK Not Available This part replaces 1765435001. Price: |
| 56 |
1186389 |
NUT-HF/LK 1/4-20 ZP Price: $3.05 |
| 65 |
1186309 |
SCREW-FLANGE Not Available Price: |
| 84 |
936-0329 |
Lock Washer This part replaces 1100241. Price: $3.90 |
| 85 |
736-3050 |
Washer, Plain (flat) 3/8, S.A.E. This part replaces 1107383. Price: $3.90 |
| 89 |
1768830 |
FUEL LINE Not Available Price: |
| 114 |
710-1007 |
TT Sems Screw 3/8-16 x 1.5 This part replaces 1768194. Price: $5.71 |
| 117 |
751-0564B |
Deflector, Muffler This part replaces 1758940. Price: $12.14 |
| 160 |
1766201 |
PULLEY-ENGINE Price: Call Us |
| 163 |
712-3017 |
HEX NUT 3/8-16 GR5 This part replaces 1186231. Price: $3.90 |
| 219 |
1752694 |
TRIM Not Available Price: |
| 275 |
1111599 |
SCR-HH 1/4-20X.625 G5 ZP Price: $3.63 |
| 315 |
1766341 |
PAD-FUEL T Not Available Price: |
| 316 |
1766188 |
FUEL CAP Not Available Price: |
| 317 |
1765404 |
TANK-FUEL Price: Call Us |
| 318 |
1758800P |
CONTROL-CHOKE Not Available This part replaces 1758800. Price: |
| 319 |
1755926P |
THROTTLE CONTROL Not Available This part replaces 1755926. Price: |
| 320 |
751-3141-14 |
Oil Drain, Extension Hose This part replaces 1769006. Price: $10.40 |
| 322 |
951-10517A |
Oil Drain This part replaces 1768865. Price: $22.67 |
| 323 |
1766121 |
KNOB-CONTO Not Available Price: |
| 324 |
1766299 |
MUFFLER Price: Call Us |
| 327 |
917-3497 |
PTO CLUTCH ASSEMBLY This part replaces 1755341. Price: $587.56 |
| 328 |
1744455 |
WASHER-SPE Not Available Price: |
| 329 |
710-3157A |
Screw, 7/16-20 x 3.25 This part replaces 1767165. Price: $9.67 |
| 331 |
1754787 |
CLUTCH-RETAINER Not Available Price: |
| 332 |
1748146 |
SQUARE KEY .25 Not Available Price: |
| 333 |
1766119001 |
BRACKET-MOUNTING CONT Not Available Price: |
| 334 |
736-0171 |
Lock Washer, 7/16 This part replaces 1100244. Price: $3.86 |
| 335 |
1762042 |
SCREW-HH Not Available Price: |
| 351 |
726-0205 |
Hose Clamp This part replaces 1750687. Price: $3.71 |
| 352 |
1767879 |
FUEL HOSE Not Available Price: |
| 355 |
1767903001 |
BRACKET-MUFFL Not Available Price: |
| 513 |
BS-298090S |
Fuel Filter This part replaces 1727491. Price: $5.76 |
| 515 |
1100069 |
SCR-HH 1/4-20X1.0 Price: $3.66 |
| 516 |
936-0329 |
Lock Washer This part replaces 1100241. Price: $3.90 |
| 533 |
935-0149 |
BUSHING This part replaces 1738433. Price: $2.43 |
| 534 |
951-0171 |
Fuel Shut-Off Valve with Screen This part replaces 1751477. Price: $18.13 |
| 535 |
737-0296 |
Vent, 3/8 Dia. This part replaces 1768804. Price: $10.94 |
| 539 |
1766326 |
OIL DRAIN CAP Not Available Price: |
| 551 |
1724194 |
BEARING-UPPER CLUTCH Not Available Price: |
