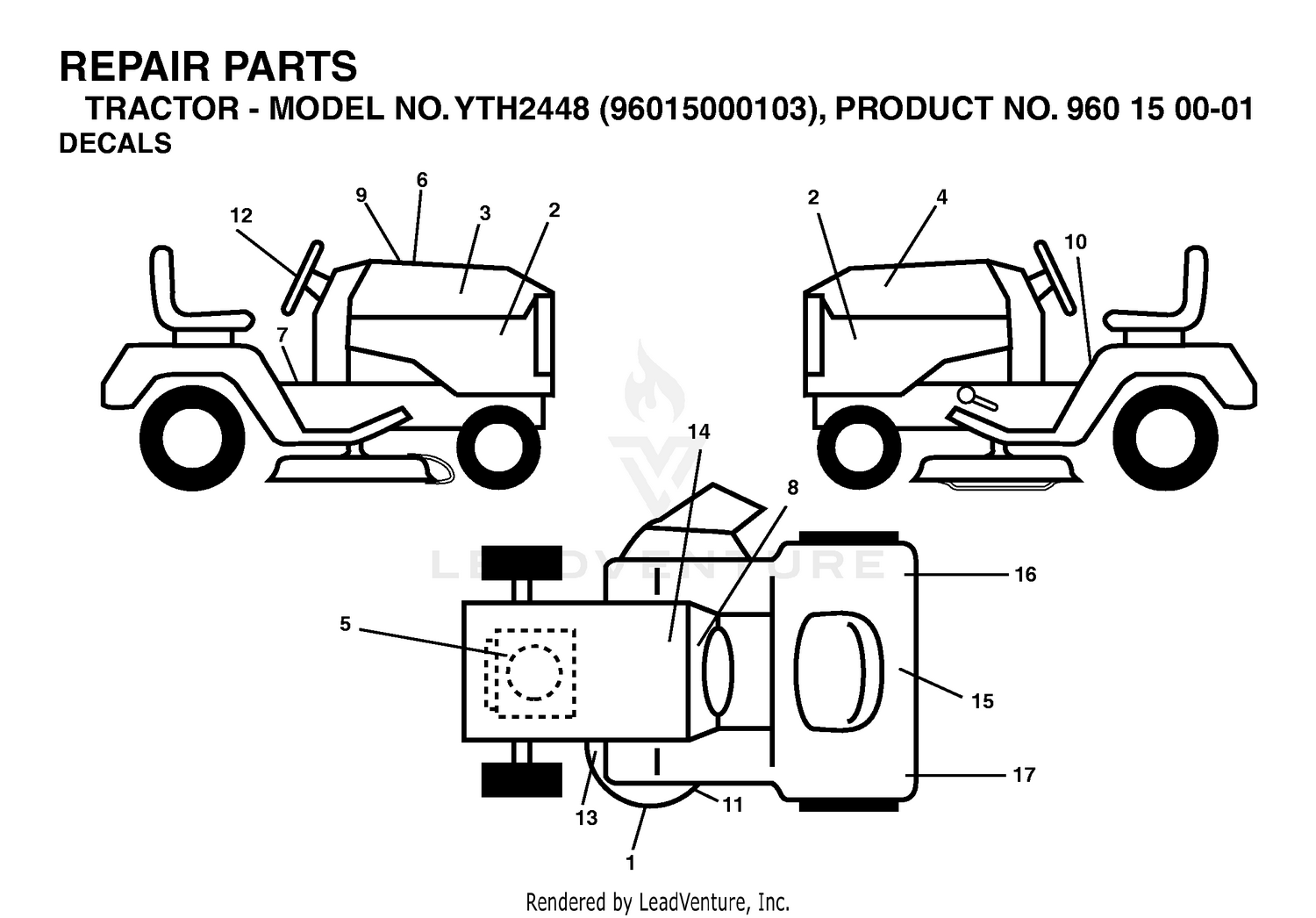

| Ref | Part Number | Description |
|---|
| 1 |
32128-23 |
NUT-HF Price: $1.51 |
| 2 |
532195487 |
DECAL, PANEL YTH2448 Price: $2.99 |
| 3 |
32153-5 |
NUT-HEX Price: $1.59 |
| 4 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 5 |
47-3800-01 |
STRAP-LOCKING This part replaces 47-3800. Price: $156.60 |
| 6 |
325-14 |
SCREW-HH Price: $2.64 |
| 6 |
532423829 |
DECAL.WARNING.CUST.RESP.E85. This part replaces 532180941. Price: $14.99 |
| 7 |
32128-20 |
NUT-HF Price: $0.99 |
| 8 |
47-3480-03 |
SMV BRKT This part replaces 47-3480. Price: $36.01 |
| 9 |
38-6200 |
SOCKET-SLOW MOVING VEHICLE Price: $21.04 |
| 9 |
532196352 |
DECAL Price: $2.99 |
| 10 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 10 |
532157002 |
DECAL Price: $2.66 |
| 11 |
3-2196-01 |
SHEAVE This part replaces 3-2196. Price: $141.72 |
| 11 |
532175291 |
DECAL V-BELT SCHEMATIC Price: $3.99 |
| 12 |
3-0136-01 |
CHAIN KEEPER ASM This part replaces 3-0136. Price: $51.92 |
| 12 |
532188925 |
DECAL.STEERING.HUSQ.BLUE Price: $12.99 |
| 13 |
325-18 |
SCREW-HH Price: $3.19 |
| 13 |
581724502 |
DECAL.MOWER.CAUTION.TENSION.AR This part replaces 532178455. Price: $2.99 |
| 14 |
20-4390 |
SPACER Price: $12.54 |
| 14 |
532145005 |
DECAL BTRY SYMBOLS Price: $3.99 |
| 15 |
47-3990 |
DECAL Price: $19.68 |
| 15 |
532191554 |
DECAL.FENDER Price: $12.99 |
| 16 |
115-4947-01 |
HYDRAULIC CYLINDER ASM (10.69 STROKE) This part replaces 22-7520. Price: $880.23 |
| 17 |
322-3 |
SCREW-HH Price: $0.79 |
| 18 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 19 |
37-2760-01 |
PIN-LIFT, BAIL This part replaces 37-2760. Price: $89.10 |
| 20 |
8-1280-01 |
REAR CROSS CHANNEL ASM This part replaces 8-1280. Price: $998.35 |
| 21 |
3296-50 |
NUT-LOCK, NI Price: $2.68 |
| 22 |
47-3840 |
ELBOW-ORIFICE (.094) Price: $37.03 |
| 23 |
49-8170 |
SPACER Price: $27.34 |
| 24 |
3290-216 |
WASHER Price: $3.83 |
| 25 |
3234-22 |
SCREW-HHF Price: $2.69 |
| 26 |
325-6 |
SCREW-HH Price: $1.42 |
| 27 |
3272-24 |
PIN-COTTER Price: $0.54 |
| 28 |
3-0144 |
SHAFT Price: $53.89 |
| 29 |
65-2710 |
PLATE-INFORMATION Price: $19.40 |
| 30 |
3290-274 |
RIVET-POP Price: $0.25 |
