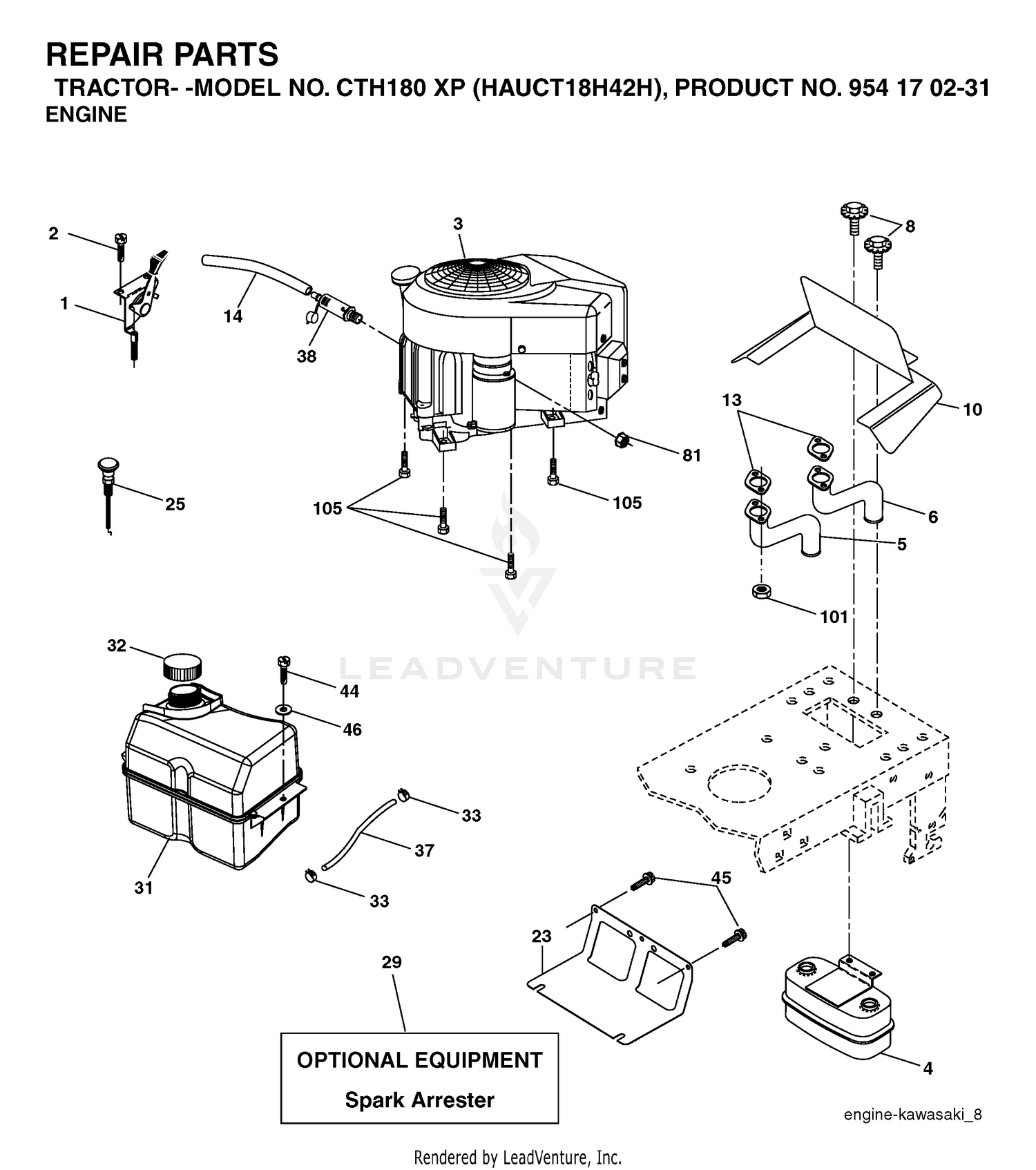

| Ref | Part Number | Description |
|---|
| 1 |
532175437 |
CONTROL.THROTTLE.BLACK This part replaces 532178385. Price: $24.99 |
| 2 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 6 |
532176068 |
EXHAUST.TUBE.RH.KAWASAKI. Price: $99.99 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 10 |
115-3038 |
CYLINDER HEAD COVER ASM Price: $314.51 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 25 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
105-3712 |
GASKET-COVER, HEAD Price: $24.05 |
| 31 |
581289901 |
FUEL.TANK.ASM.NON-EPA This part replaces 532185534. Price: $44.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 40 |
110-3715 |
VALVE-BREATHER Price: $173.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 50 |
110-3714 |
COVER-BREATHER This part replaces 108-2862. Price: $22.08 |
| 60 |
98-9364 |
SCREW (WITH WASHER) Price: $0.32 |
| 70 |
98-7766 |
PIPE-RETURN, WATER Price: $9.95 |
| 80 |
98-9455 |
NUT-CAP Price: $4.77 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 90 |
98-9454 |
GASKET Price: $1.43 |
| 100 |
107-9075 |
PLUG-FILLER, OIL Price: $7.25 |
| 101 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 110 |
99-3446 |
O-RING Price: $7.11 |
| 120 |
108-2858 |
TUBE-BREATHER Price: $8.87 |
| 130 |
108-2859 |
CLAMP-HOSE Price: $2.19 |
