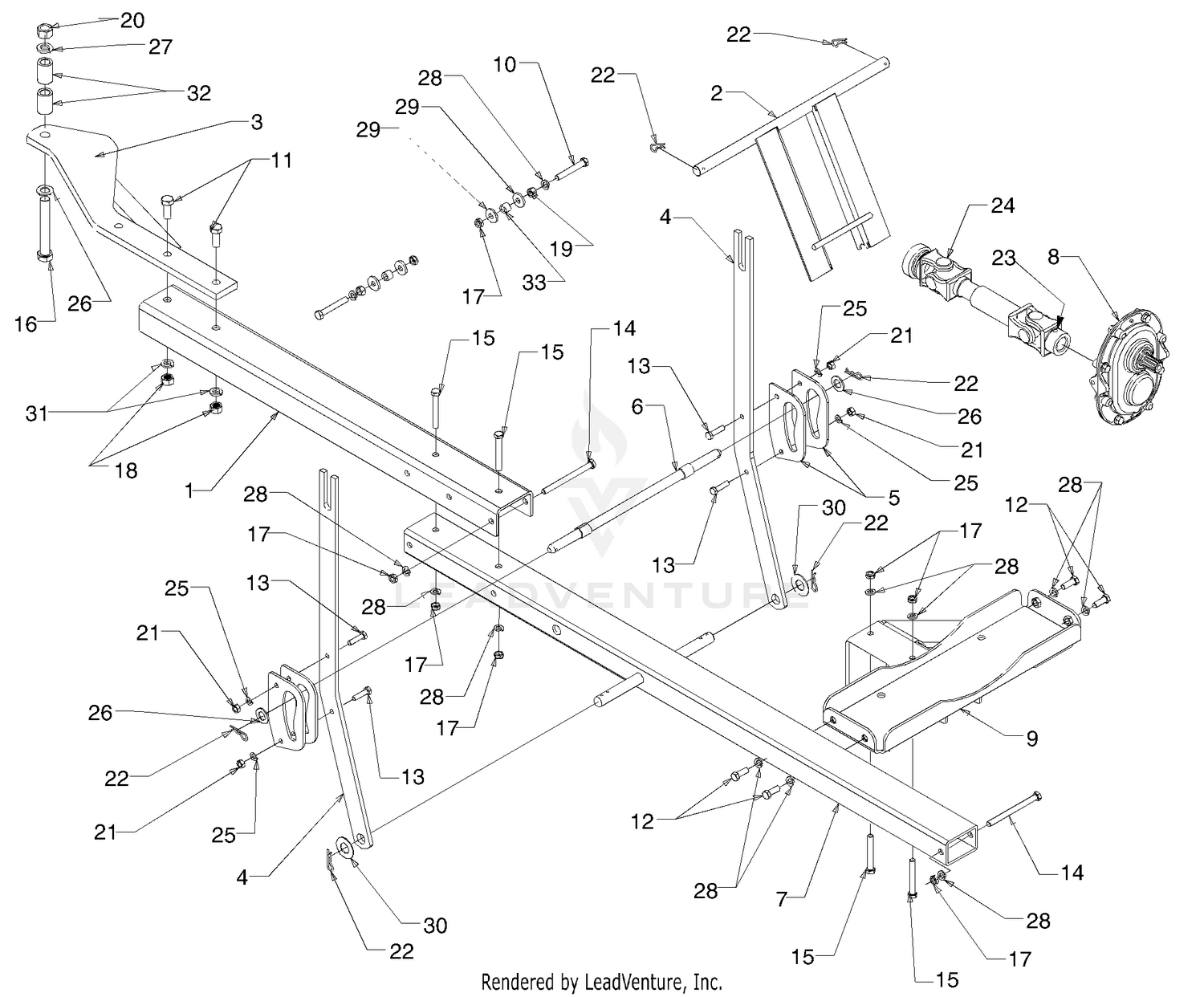

| Ref | Part Number | Description |
|---|
| 1 |
05611A |
LIFT BRKT Not Available Price: |
| 2 |
05613 |
BRACKET ASSEMBLY-GUARD Not Available Price: |
| 3 |
05646-0637 |
PLATE ASSEMBLY Not Available This part replaces 05646. Price: |
| 4 |
13780 |
BAR-LIFT Not Available Price: |
| 5 |
13781 |
CAM:LIFT Not Available Price: |
| 6 |
13789 |
SHAFT ASSEMBLY Not Available Price: |
| 7 |
684-0094 |
TUBE ASSEMBLY LIFT Not Available Price: |
| 8 |
684-0097 |
GEARBOX Not Available Price: |
| 9 |
684-0124 |
BRKT ASM:HSG:MT Price: Call Us |
| 10 |
710-0369 |
HHCS:3/8-24:2.50:GR5:SPEC Price: $5.59 |
| 11 |
710-0474 |
SCREW 1/2-13 x 1.25 GR5 Not Available Price: |
| 12 |
710-0514 |
HHCS:3/8-16:1.00:GR5:STD Price: $3.78 |
| 13 |
710-0528 |
HHCS:5/16-18:1.25:GR5:STD Price: $3.90 |
| 14 |
710-0620 |
HHCS:3/8-24:4.50:GR5:STD Price: $10.47 |
| 15 |
710-0629 |
SCREW 3/8-24 x 2.75 GR.5 Not Available Price: |
| 16 |
710-3151A |
Hex Bolt 5/8-18 x 4.5" Lg. This part replaces 710-0929. Price: $16.85 |
| 17 |
712-0116 |
NUT:JAM:3/8-24:INS LOCK Price: $3.95 |
| 18 |
712-0206 |
HEX NUT This part replaces 7120206. Price: $3.90 |
| 19 |
712-0241 |
NUT:3/8-24:GRA:HX Price: $3.86 |
| 20 |
712-0337 |
HEX NUT 5/8-18 Not Available Price: |
| 21 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 22 |
714-0147 |
PIN:COT:.125 X 1.75 INTERNAL Price: $4.20 |
| 23 |
715-0113 |
SPRING PIN 5/16 x 2.50 Not Available Price: |
| 24 |
717-0366 |
UNIVERSAL DRIVE SHAFT Not Available Price: |
| 25 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 26 |
736-0156 |
WASH:FL:.635 X 1.125 X .090 Price: $3.95 |
| 27 |
736-0158 |
WASH:LOCK:5/8:REGULAR DUTY Price: $3.90 |
| 28 |
736-0169 |
WASH:LOCK:3/8:REGULAR DUTY Price: $3.33 |
| 29 |
736-0258 |
WASH:FLAT:.385 X 1.0 X .135 Price: $3.93 |
| 30 |
736-0316 |
WASH:FL:.78 ID X 1.590 OD X .06 Price: $4.02 |
| 31 |
736-0921 |
WASH:LOCK:1/2:REGULAR DUTY Price: $3.90 |
| 32 |
750-0156 |
HUB .635 ID X 1.00 OD X 1.50 Price: Call Us |
