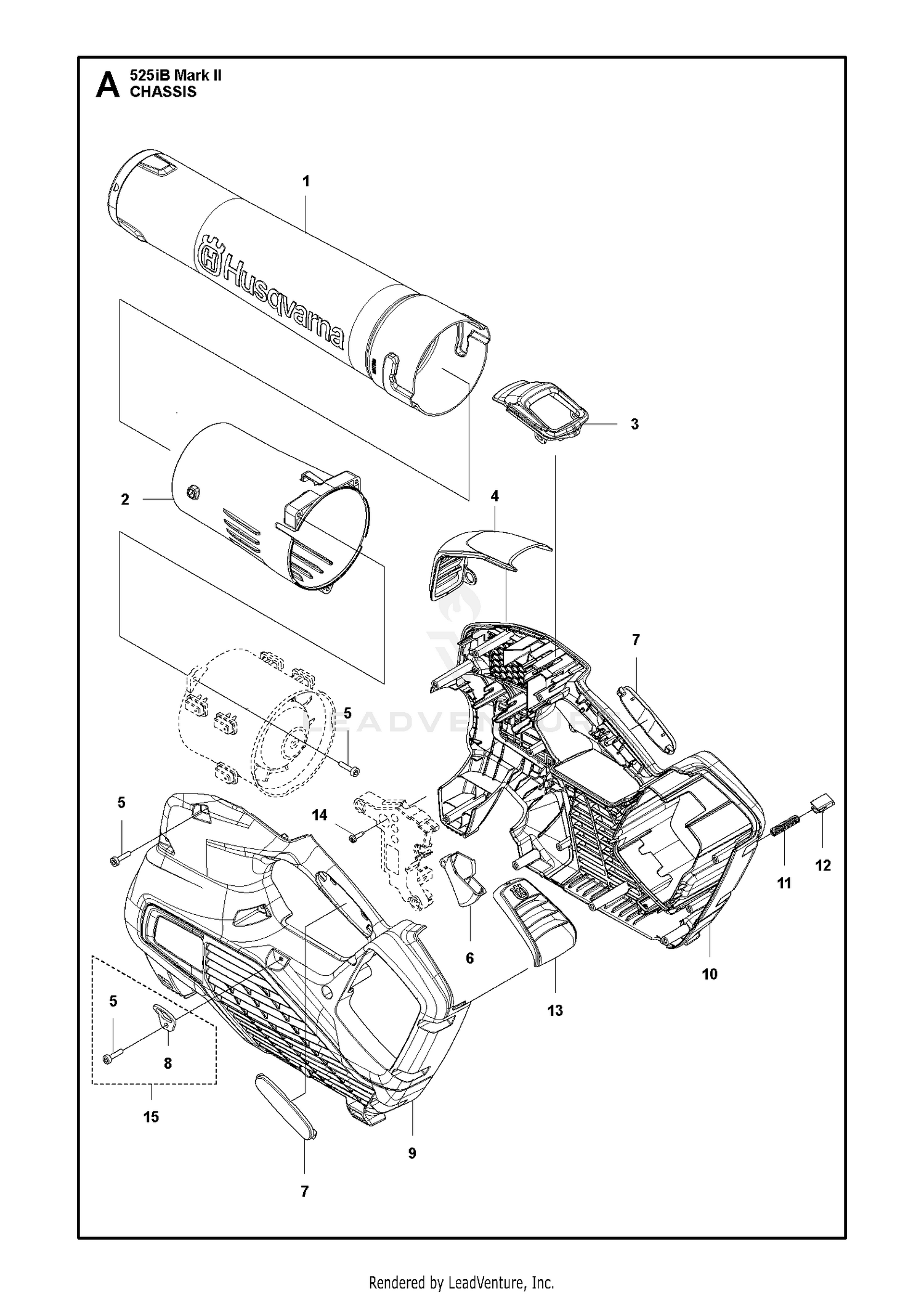

CHASSIS
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 586106302 | TUBE ASSY NOZZLE 536LIBX Price: $27.99 |
| 2 | 582501601 | TUBE FAN SYSTEM Price: $17.99 |
| 3 | 584213703 | KEYPAD FRAME Price: $5.99 |
| 4 | 584914703 | FRONT COVER Price: $11.99 |
| 5 | 580292901 | SCREW ITXSCT PW4.2X18 10.9 ZN Price: $2.99 |
| 6 | 579564102 | THROTTLE CONTROL Price: $5.99 |
| 7 | 544042003 | HANDLE INSERT GREY Price: $5.99 |
| 8 | 586514201 | EYELET Price: $5.99 |
| 10 | 584157302 | HOUSING RIGHT Price: $37.99 |
| 11 | 585480001 | SPRING PUSH OUT Price: $4.99 |
| 12 | 577996601 | PUSH BUTTON Price: $3.99 |
| 13 | 576901201 | COVER Price: $5.99 |
| 14 | 503212813 | SCREW This part replaces 525887401. Price: $2.99 |
| 15 | 588009701 | KIT EYELET Price: $9.99 |
