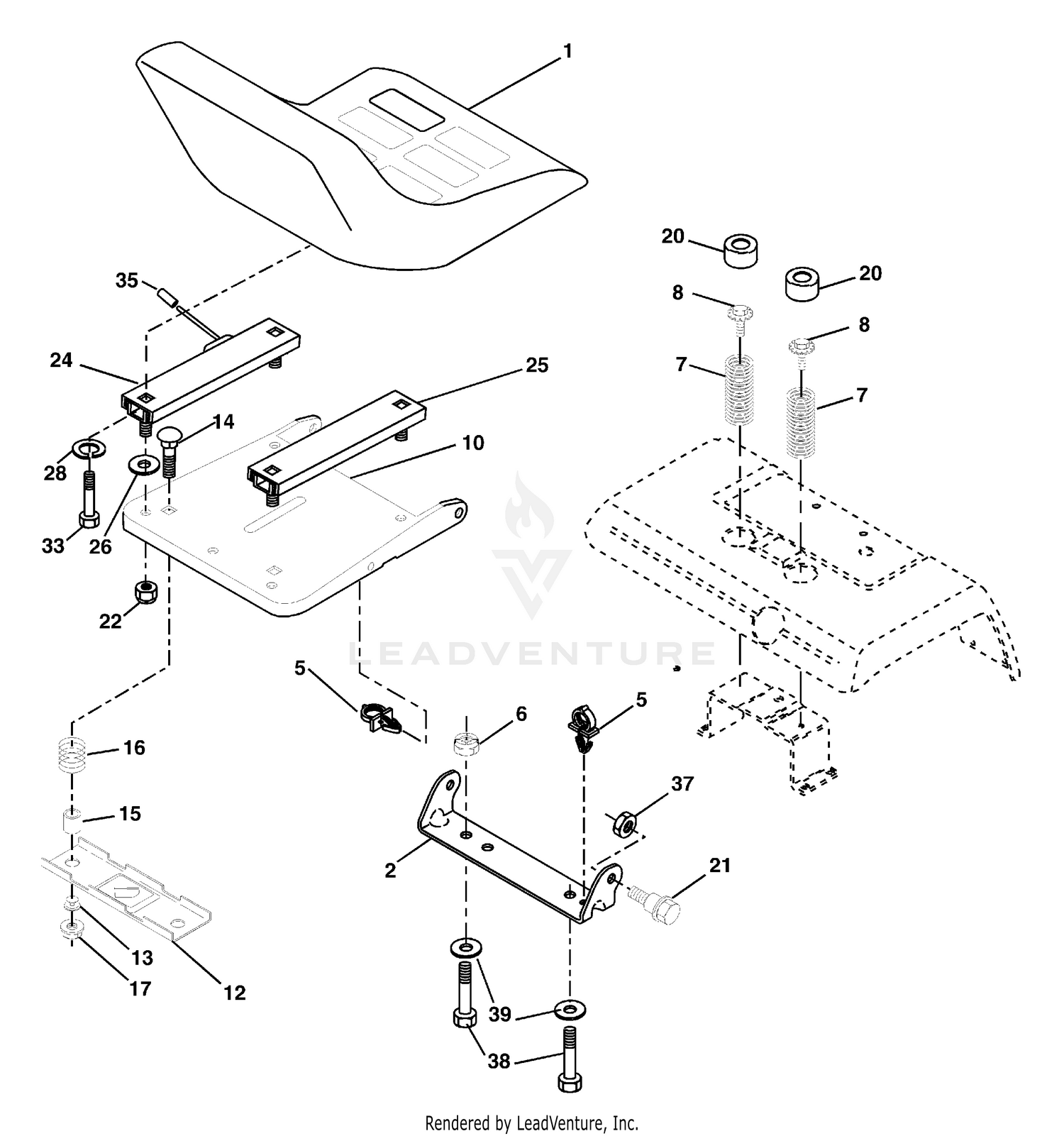

| Ref | Part Number | Description |
|---|
| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532184995. Price: $219.99 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 2 |
70-4980 |
BOLT Price: $19.50 |
| 3 |
60-7120 |
NUT Price: $1.55 |
| 4 |
70-3480 |
STUD Price: $16.18 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 5 |
70-3430 |
DISCONTINUED Price: Call Us |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 6 |
70-6080 |
HOSE Price: $72.55 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 7 |
70-6070 |
PIPE Price: $129.52 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 8 |
70-4950 |
HOSE Price: $100.72 |
| 9 |
70-3440 |
CLAMP Price: $35.07 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532182493. Price: $17.99 |
| 10 |
70-6240 |
GASKET Price: $11.02 |
| 11 |
70-3340 |
CONNECTOR Price: $21.43 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 12 |
70-5310 |
ELBOW Price: $59.85 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 13 |
70-3090 |
CLAMP Price: $3.60 |
| 14 |
70-3040 |
HOSE Price: $11.71 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
532121249 |
SPACER SPLIT Price: $4.99 |
| 15 |
70-5490 |
PIPE Price: $170.50 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 16 |
70-5480 |
DISCONTINUED Price: Call Us |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 17 |
70-2830 |
BOLT Price: $3.08 |
| 18 |
51-7400 |
WASHER Price: $1.31 |
| 19 |
99-2121 |
GASKET-PIPE, OIL This part replaces 70-4970. Price: $11.38 |
| 20 |
532124238 |
CAP SPRING Price: $4.99 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 24 |
532177946 |
TRACK SLIDE, SEAT(L) Price: $59.99 |
| 25 |
532177947 |
TRACK SLIDE, SEAT(R) Price: $119.99 |
| 26 |
596039901 |
Washers This part replaces 819111012. Price: $2.99 |
| 28 |
810010500 |
WASHER Price: $3.99 |
| 33 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874780512. Price: $3.99 |
| 35 |
583670601 |
CAP.VINYL.BLK.SERVICE This part replaces 532178426. Price: $2.99 |
| 38 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $3.99 |
