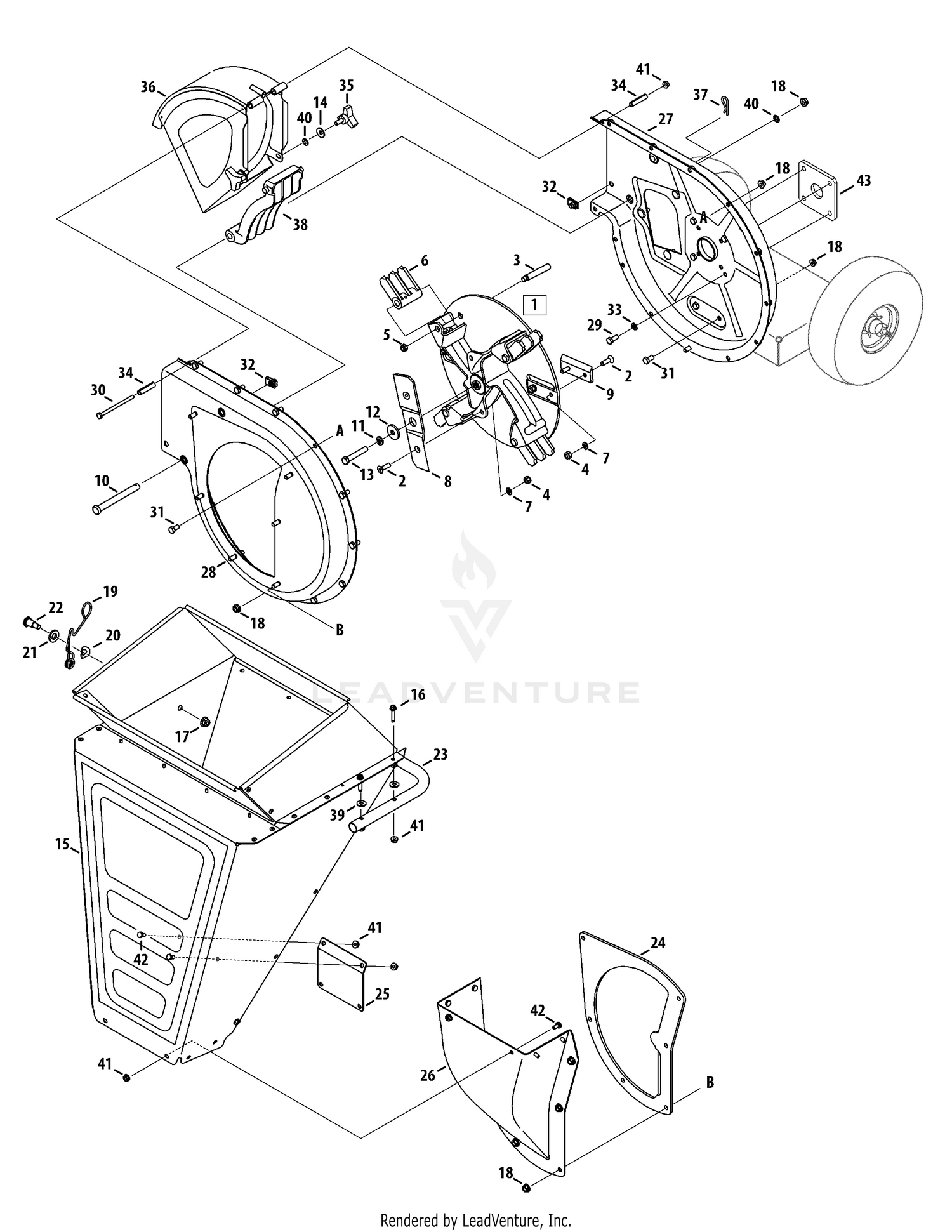

| Ref | Part Number | Description |
|---|
| 1 |
981-04094 |
Impeller Assembly Complete Price: $538.68 |
| 2 |
710-1054 |
Machine Screw, 5/16-24 x 1.0 Price: $3.71 |
| 3 |
738-04286A |
Shoulder Pin, .5 x 2.625 Price: $4.38 |
| 4 |
712-0411 |
Hex Top Lock Nut 5/16-24 This part replaces 912-0411. Price: $3.71 |
| 5 |
712-0266A |
Nut, Jam Lock, 3/8-16 Price: $3.43 |
| 6 |
719-04308 |
Flail Blade Price: $16.36 |
| 7 |
936-0119 |
Lock Washer, 5/16 Price: $4.29 |
| 8 |
742-04050-0637 |
IMPELLER BLADE This part replaces 942-04050. Price: $30.73 |
| 9 |
942-0544B |
Chipper Blade Price: $78.87 |
| 10 |
911-0835 |
Clevis Pin,.50 x 4.62 Price: $11.12 |
| 11 |
736-0217 |
Lock Washer, 3/8 This part replaces 936-0217. Price: $3.86 |
| 12 |
736-0247 |
Flat Washer,.406 x 1.25 Price: $8.82 |
| 13 |
710-1254 |
SCREW 3/8-24X2.25 GR8 Price: $6.26 |
| 14 |
736-0242 |
Bell Washer.340 ID x.872 OD Price: $3.75 |
| 15 |
981-04011-0638 |
SHREDDER HOPPER ASSEMBLY (MTD RED) This part replaces 681-04011-0638. Price: $325.07 |
| 16 |
710-0809 |
Hex Cap Screw, 1/4-20 x 1.250 Price: $6.37 |
| 18 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 23 |
749-04103-0637 |
Hopper Handle Price: $37.08 |
| 24 |
781-04007-0638 |
Shredder Plate Price: $40.75 |
| 25 |
781-04027-0638 |
Hopper Support Bracket Price: $18.33 |
| 26 |
781-04033-0638 |
Inlet Guide Price: $82.21 |
| 27 |
681-05063 |
INNER FLAIL HOUSING This part replaces 681-04116-0638. Price: $115.28 |
| 28 |
681-0004A-0637 |
Outer Impeller Housing Assembly This part replaces 681-0004A-0638. Price: $207.63 |
| 28 |
681-04002 |
FLAIL HOUSING ASSEMBLY (OUTER) This part replaces 681-04002-0638. Price: $124.00 |
| 29 |
710-0157 |
Hex Cap Screw, 5/16-24 x .75 Price: $3.90 |
| 30 |
710-0825 |
Hex Cap Screw, 1/4-20 x 3.75 Price: $4.73 |
| 31 |
710-3025 |
Hex Cap Screw, 5/16-18 x .625 Price: $3.64 |
| 32 |
726-0211 |
One Mulch Plug Drill Guide This part replaces 926-0211. Price: $3.90 |
| 33 |
936-0119 |
Lock Washer, 5/16 Price: $4.29 |
| 34 |
950-0793 |
Hinge Spacer,.265 x.380 x 1.66 Price: $3.15 |
| 35 |
720-0170 |
Knob, 5/16-18 Price: $9.85 |
| 36 |
681-0094A-0637 |
DISCHARGE CHUTE ASSEMBLY(POWDER BLACK) This part replaces 681-0094A-0638. Price: $113.97 |
| 37 |
714-0149B |
Internal Cotter Pin This part replaces 914-0149B. Price: $3.95 |
| 38 |
719-04070 |
Shredder Screen Price: $44.81 |
| 39 |
736-0173 |
Flat Washer, .28 x .74 x .063 Price: $3.76 |
| 40 |
726-0201 |
Speed Nut,.3125ID Price: $6.01 |
| 41 |
712-04064 |
Nut, Flange, Lock, 1/4-20 Price: $3.64 |
| 42 |
710-0599 |
TT Screw, 1/4-20 x .5 Price: $3.86 |
