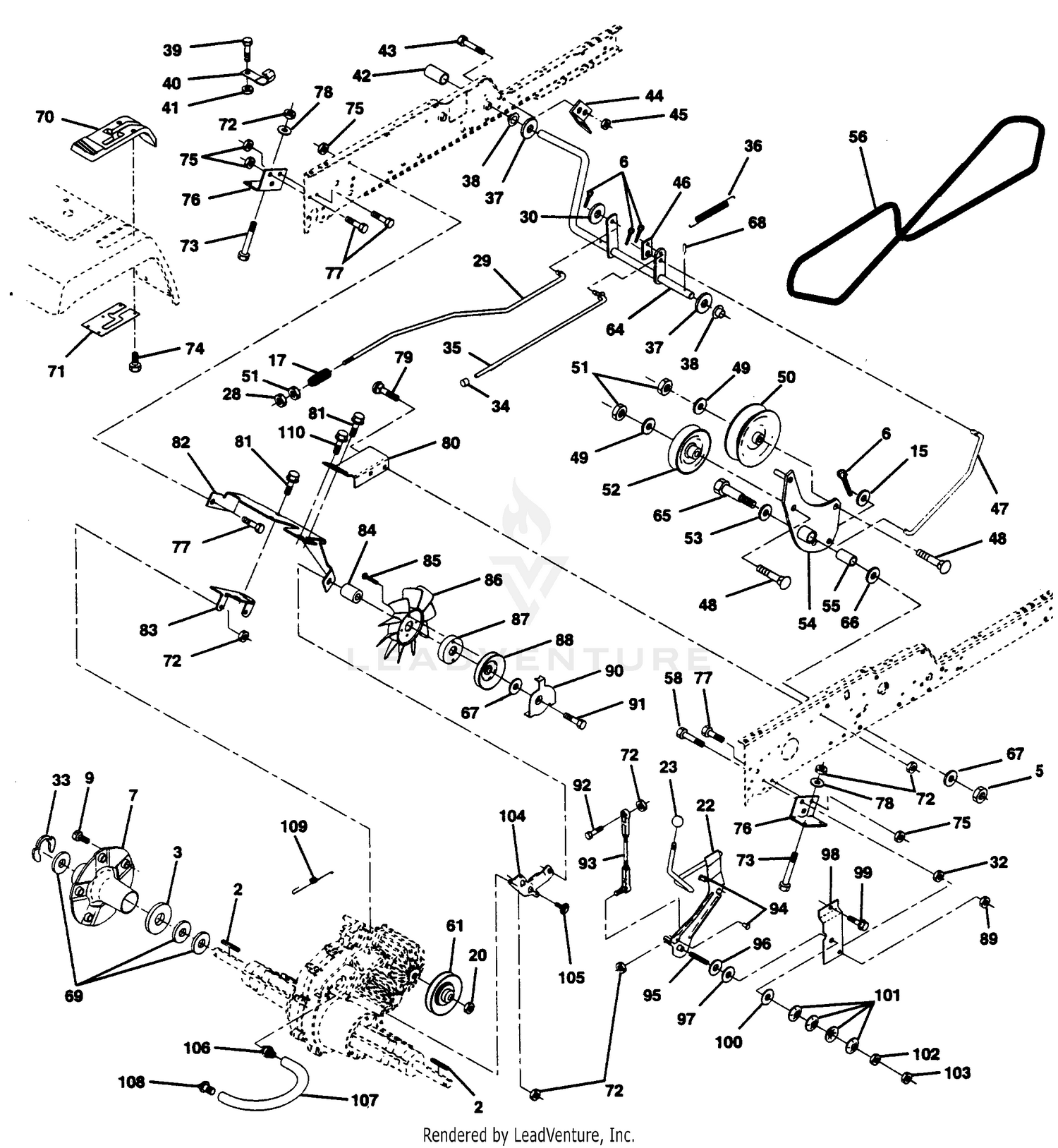

| Ref | Part Number | Description |
|---|
| 2 |
532007070 |
Key 1/4 x 2.5 Price: $3.99 |
| 3 |
532007563 |
Washer Thrust Axle Harden Price: $4.99 |
| 5 |
873680600 |
Nut Crownlock 3/8-16 Price: $1.99 |
| 6 |
876020412 |
Pin Cotter 1/8 x 3/4 Price: $3.99 |
| 7 |
532140507 |
Wheel Hub Asm. Price: $120.99 |
| 9 |
532140080 |
Bolt Hub Price: $2.99 |
| 15 |
819131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: $2.99 |
| 17 |
532140921 |
Spring Rod Brake Price: $3.99 |
| 20 |
873940800 |
Nut Hex Jam Toplock 1/2-20 Price: $3.99 |
| 22 |
532140498 |
Shaft Arm Asm Price: $27.44 |
| 23 |
532121274 |
Knob Price: $5.99 |
| 28 |
873220600 |
Nut, Hex 3/8-16 This part replaces 873350600. Price: $3.99 |
| 29 |
532140494 |
Brake Rod Price: $10.99 |
| 30 |
819131612 |
Washer 13/32 x 1 x 12 Ga. This part replaces 819131614. Price: $3.99 |
| 31 |
532003145 |
COTTER PIN This part replaces 876020312. Price: $1.40 |
| 32 |
873220700 |
Nut Hex 7/16-14 Price: $2.99 |
| 33 |
812000053 |
Ring E Price: $3.99 |
| 34 |
532071673 |
Cap Plunger Price: $3.99 |
| 35 |
532137648 |
Rod Parking Brake Price: $6.99 |
| 36 |
532149412 |
SUB= 149412 This part replaces 532138364. Price: $3.99 |
| 37 |
532121749 |
Washer 25/32 x 1-1/4 x 16 Ga. Price: $1.99 |
| 38 |
532110895 |
Nyliner Price: $3.10 |
| 39 |
874321016 |
Screw Fin #10-24 x 1 Price: $2.99 |
| 40 |
532178575 |
Actuator, Interlock Switch This part replaces 532005304. Price: $3.99 |
| 41 |
532069180 |
Nut, Crownlock #10-24 This part replaces 873631000. Price: $2.69 |
| 42 |
532123533 |
Cover Pedal Price: $6.99 |
| 43 |
874760412 |
Bolt Hex Head 1/4-20 x 3/4 Price: $3.99 |
| 44 |
532104601 |
Bracket Interlock Price: $5.46 |
| 45 |
539976978 |
NUT.1/4C.NYLOC This part replaces 873800400. Price: $1.49 |
| 46 |
532145170 |
Retainer Spring Price: $2.99 |
| 47 |
532138228 |
Clutch Rod Price: $8.99 |
| 48 |
872110614 |
Bolt Carriage 3/8-16 x 1-3/4 Gr. 5 Price: $3.99 |
| 49 |
819131413 |
Washer 13/32 x 7/8 x 13 Ga Price: $2.99 |
| 50 |
532173438 |
PULLEY.IDLER.FLAT This part replaces 532131494. Price: $14.99 |
| 51 |
873680600 |
Nut, Crownlock 3/8-16 Price: $1.99 |
| 52 |
532139123 |
Pulley Idler Grooved Price: $22.99 |
| 53 |
532000207 |
Washer Hartdened Price: $3.99 |
| 54 |
532138390 |
Clutch Arm Asm Price: $17.67 |
| 55 |
532105706 |
Bearing, Idler Price: $3.99 |
| 56 |
532140218 |
V-Belt Price: $44.99 |
| 58 |
874760724 |
Bolt Fin Hex 7/16-14 x 1-1/2 Price: $2.99 |
| 61 |
532140488 |
Pullery Transaxle Price: $22.99 |
| 64 |
532154752 |
SUB= 154752 This part replaces 532137649. Price: $35.99 |
| 65 |
532179613 |
Bolt, Shoulder This part replaces 532067609. Price: $2.99 |
| 66 |
532140296 |
Washer Hardened Price: $2.99 |
| 67 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 68 |
532005142 |
Pin Roll Price: $3.99 |
| 69 |
532123800 |
Washer Price: $3.99 |
| 70 |
532153762 |
KIT CONS HYD ADJ YT GT This part replaces 532139989. Price: $21.02 |
| 71 |
532140927 |
Plate Console Shift Price: $4.99 |
| 72 |
873800500 |
Locknut Hex W/Washer Insert Price: $2.69 |
| 73 |
874780548 |
Bolt Fin Hex 5/16-18 x 3 Price: $2.99 |
| 74 |
532142432 |
Screw, Hex Wsh Hi-Lo 1/4-1/2 Price: $3.99 |
| 75 |
873800700 |
Nut Lock Hex 7/16 Price: $2.99 |
| 76 |
532140481 |
Bracket Transaxle Price: $4.99 |
| 77 |
874780716 |
Bolt 7/16-14 x 1 Gr 5 This part replaces 874760716. Price: $2.99 |
| 78 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111212. Price: $2.02 |
| 79 |
872110505 |
Bolt Carriage 5/16-18 x 5/8 Price: $3.49 |
| 80 |
532140484 |
Bracket Torque RH Price: $2.99 |
| 81 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 This part replaces 817490612. Price: $3.99 |
| 82 |
532154561 |
KIT.BRAKET/HDW.MOUNT.HYDRO This part replaces 532140482. Price: $14.99 |
| 83 |
532140479 |
Strap Torque Mid Price: $4.99 |
| 84 |
532140490 |
Spacer Price: $5.99 |
| 85 |
817541020 |
Screw #10-24 x 1-1/4 Price: $3.99 |
| 86 |
532140462 |
Fan 7" Hydro Price: $7.99 |
| 87 |
532140491 |
Adapter Fan Price: $6.99 |
| 88 |
532161592 |
PULLEY This part replaces 532140492. Price: $25.99 |
| 89 |
873680700 |
Nut, Crownlock 7/16-14 Price: $2.99 |
| 90 |
532140489 |
Keeper Belt Price: $5.99 |
| 91 |
817490644 |
Screw Thdrol 3/8-16 x 2-3/4 Price: $4.99 |
| 92 |
874520520 |
Bolt 5/16-18 x 1-1/4 This part replaces 874760520. Price: $2.99 |
| 93 |
532140502 |
Link Shift Asm Price: $52.99 |
| 94 |
532133835 |
Fastner Christmas Tree Price: $3.99 |
| 95 |
823200528 |
Screw Set 5/16-18 x 1.75 Price: $3.99 |
| 96 |
532141103 |
Washer Nickel Plated Price: $3.99 |
| 97 |
532126874 |
Bearing Trust Price: $3.73 |
| 98 |
532141004 |
Bracket Shift Price: $2.99 |
| 99 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 817490624. Price: $3.99 |
| 100 |
532126881 |
Washer Compression Price: $3.99 |
| 101 |
532059285 |
Washer Bellville Price: $3.99 |
| 102 |
873930500 |
Nut, Hex, Lock This part replaces 873560500. Price: $3.99 |
| 103 |
873220500 |
Hex, Nut 5/16-18 This part replaces 873350500. Price: $3.99 |
| 104 |
532140480 |
Bracket Idler Price: $3.99 |
| 105 |
539990071 |
HCS.1/4-20.X1/2 This part replaces 817580408. Price: $1.99 |
| 106 |
532142576 |
Fitting Vent Hose Price: $11.99 |
| 107 |
532142577 |
Vent Hose Price: $6.99 |
| 108 |
532142578 |
Cap Vent Price: $31.99 |
| 109 |
532140929 |
Spring Return Brake Price: $13.99 |
| 110 |
532088652 |
Screw, Hinge Price: $3.99 |
