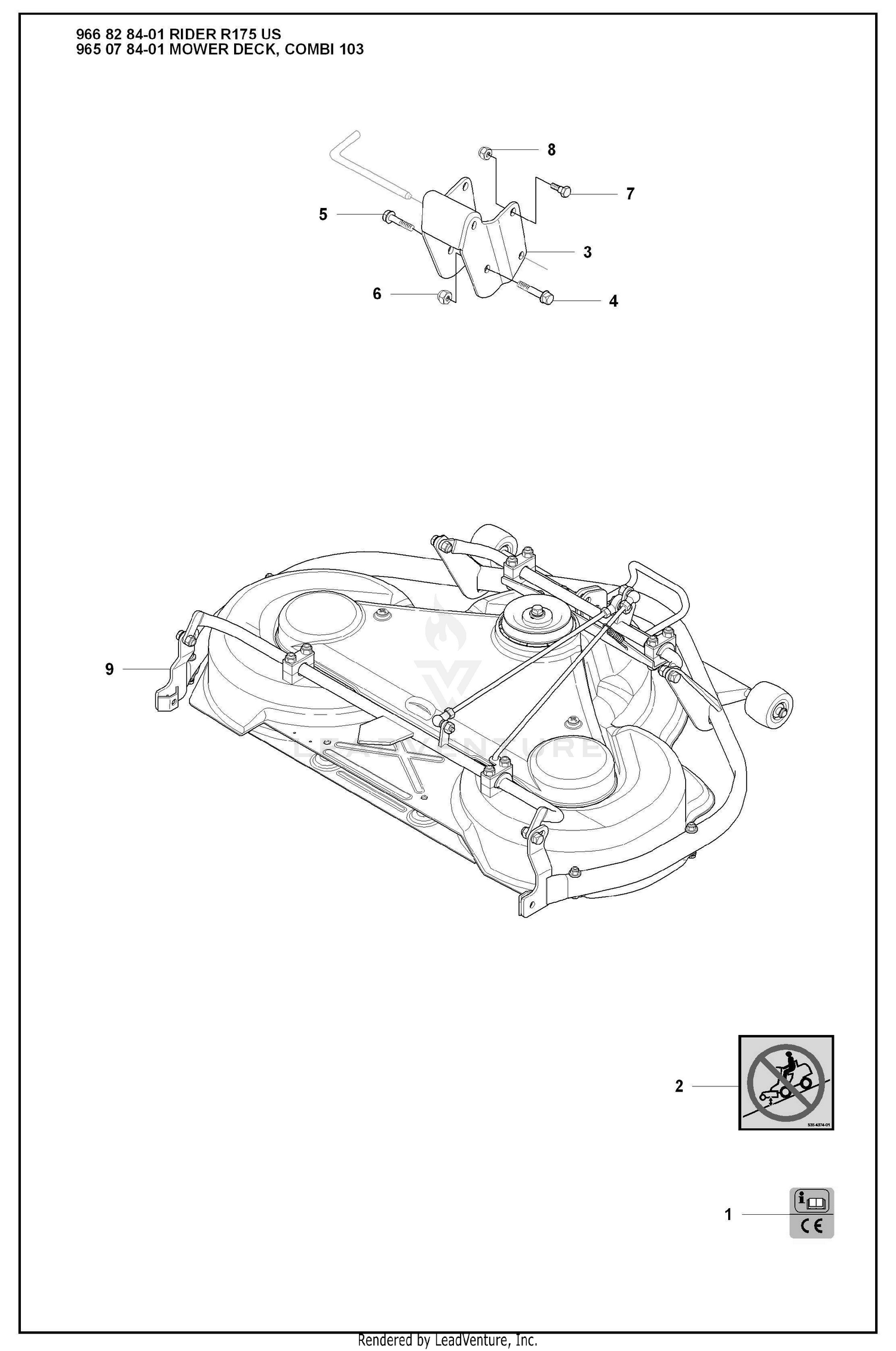

Mower Deck (Part 1)
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 302-5 | FITTING-GREASE Price: $0.59 |
| 1 | 506929001 | DECAL Price: $3.99 |
| 2 | 106-6895-03 | BALL JOINT ASM This part replaces 69-9810. Price: $258.08 |
| 2 | 535437401 | DECAL Price: $3.99 |
| 3 | 535431301 | BRACKET Price: $107.99 |
| 4 | 725254251 | Screw Price: $4.99 |
| 4 | 98-0666 | DISCONTINUED Price: Call Us |
| 5 | 725253671 | Price: $3.43 |
| 6 | 732252201 | Nut Price: $2.65 |
| 7 | 506597401 | BOLT Price: $5.99 |
| 7 | 98-0664 | HEAD Price: $83.64 |
| 8 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 11 | 98-0665 | PISTON Price: $77.53 |
| 14 | 32152-10 | LOCKNUT This part replaces 43-5130. Price: $0.81 |
| 16 | 82-5740 | NUT-JAM This part replaces 69-1980. Price: $29.95 |
| 17 | 82-5730-01 | END-ROD, TIE This part replaces 69-1970. Price: $310.82 |
| 18 | 32121-34 | PIN-ROLL Price: $1.31 |
