Parts Catalog

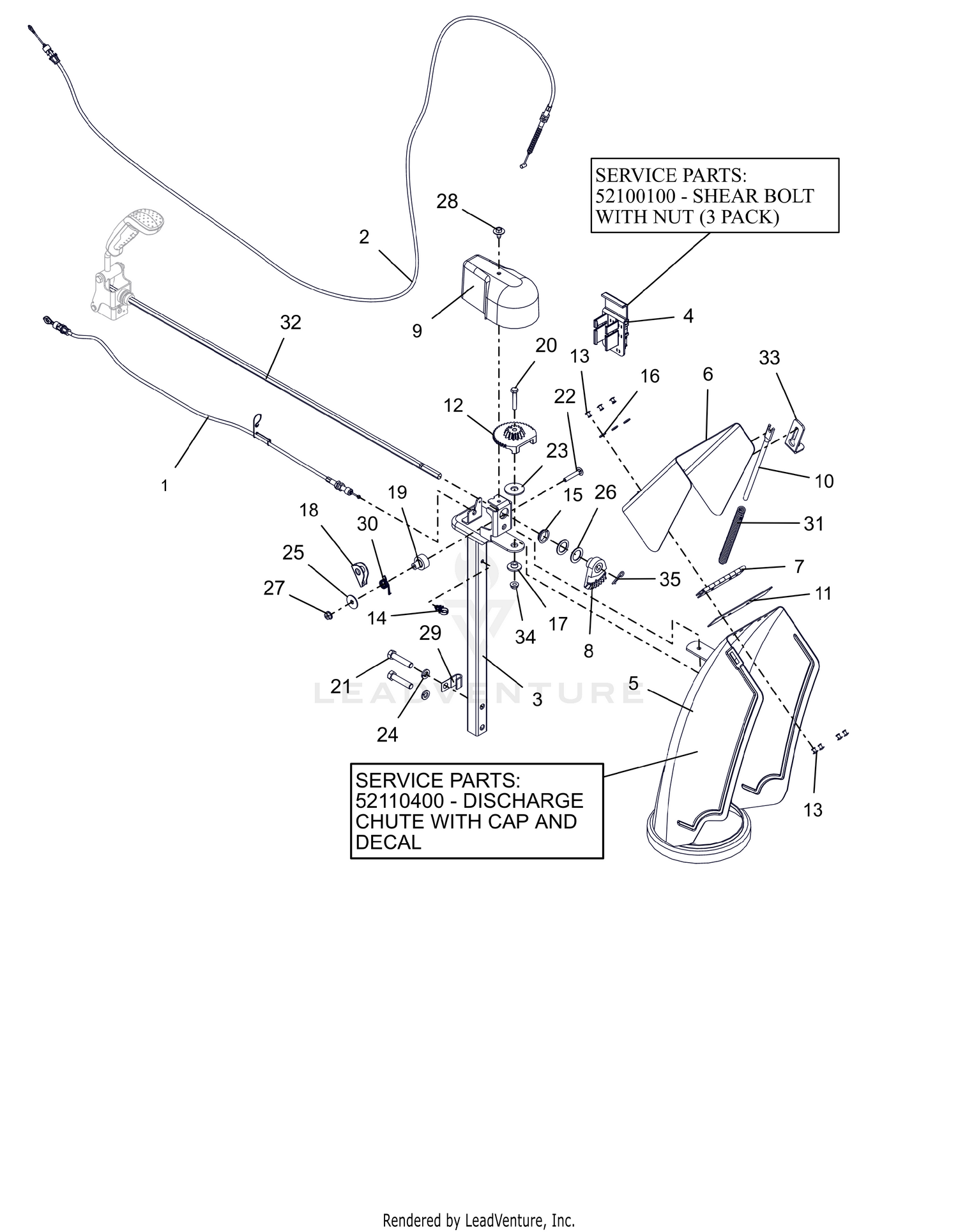

Discharge Chute - Track

Parts (34)

Ref	Part Number	Description
1	06900615	CABLE, CHUTE LOCK, PRO Price: $38.45
2	06900614	CABLE, DEFLECTOR - DELUXE Price: $49.45
3	03897451	PEDESTAL, CHUTE - QUICK STICK Price: $36.95
4	52104700	HOLDER W LARGE SHEAR BOLT /NUT Price: $21.45
5	52110400	CHUTE, DISCHARGE W/CAP This part replaces 04753259. Price: $142.95
6	52110100	CAP, LARGE REMOTE W/DECAL Price: $40.95
7	00170100	HINGE Price: $10.45
8	09478700	GEAR- CHUTE-ACTUATION This part replaces 00184300. Price: $7.45
9	00261700	COVER, CHUTE GEAR Price: $17.95
10	00389000	ROD, DEFLECTOR CAP Price: $13.45
11	00628400	CAP SEAL 5.50 Price: $4.45
12	09478600	GEAR- CHUTE-LOCKING This part replaces 03898700. Price: $12.45
13	06800140	RVT, POP .1875 ZCC Price: $0.95
14	04451600	CLIP, CABLE GUIDE Price: $1.95
15	05500027	BUSHING, POLYLINER-.75 SNAPIN Price: $1.95
16	06401029	WSHR,FLT .196X.500X.066 ZCC Price: $1.95
17	05500920	BSHG-FLG .265X.477X.375X1.00 Price: $3.45
18	05081900	ARM, LOCKING Price: $4.95
19	05500024	BUSHING, LOCK ARM Price: $3.45
20	05901739	BLT, HEX .25-20X1.50 G5 ZCC Price: $1.45
21	05901809	BLT, HEX .38-16X1.75 G5 ZCC Price: $1.45
22	06200331	BLT, RHSN .25-20X1.50 G5 ZCC Price: $1.45
23	06400904	WSHR-FLT-NYL .515X1.375X.093 Price: $2.45
24	06300116	WSHR,LK-REG .375X.094 ZCC Price: $0.95
25	06401020	WSHR,FLT .281X1.000X.063 ZCC Price: $0.95
26	06401119	WSHR, FLT .754X1.125X.062 ZCC Price: $0.95
27	06500821	NUT-LK-CTR-FLG .25-20 ZC120 Price: $0.45
28	07400138	SCR, TAP .25-20X.50 LG HWH ZCC Price: $1.45
29	06909400	J-CLAMP Price: $3.45
30	08300014	SG-TORS Price: $0.95
31	08300013	SG-COMP .08X.40X6.50 14#/IN Price: $8.45
32	04507700	ROD, HEX - CHUTE ROTATION Price: $22.45
33	05108300	BRKT, ANCHOR - CABLE This part replaces 05108359. Price: $3.45
34	06500821	NUT-LK-CTR-FLG .25-20 ZC120 Price: $0.45
