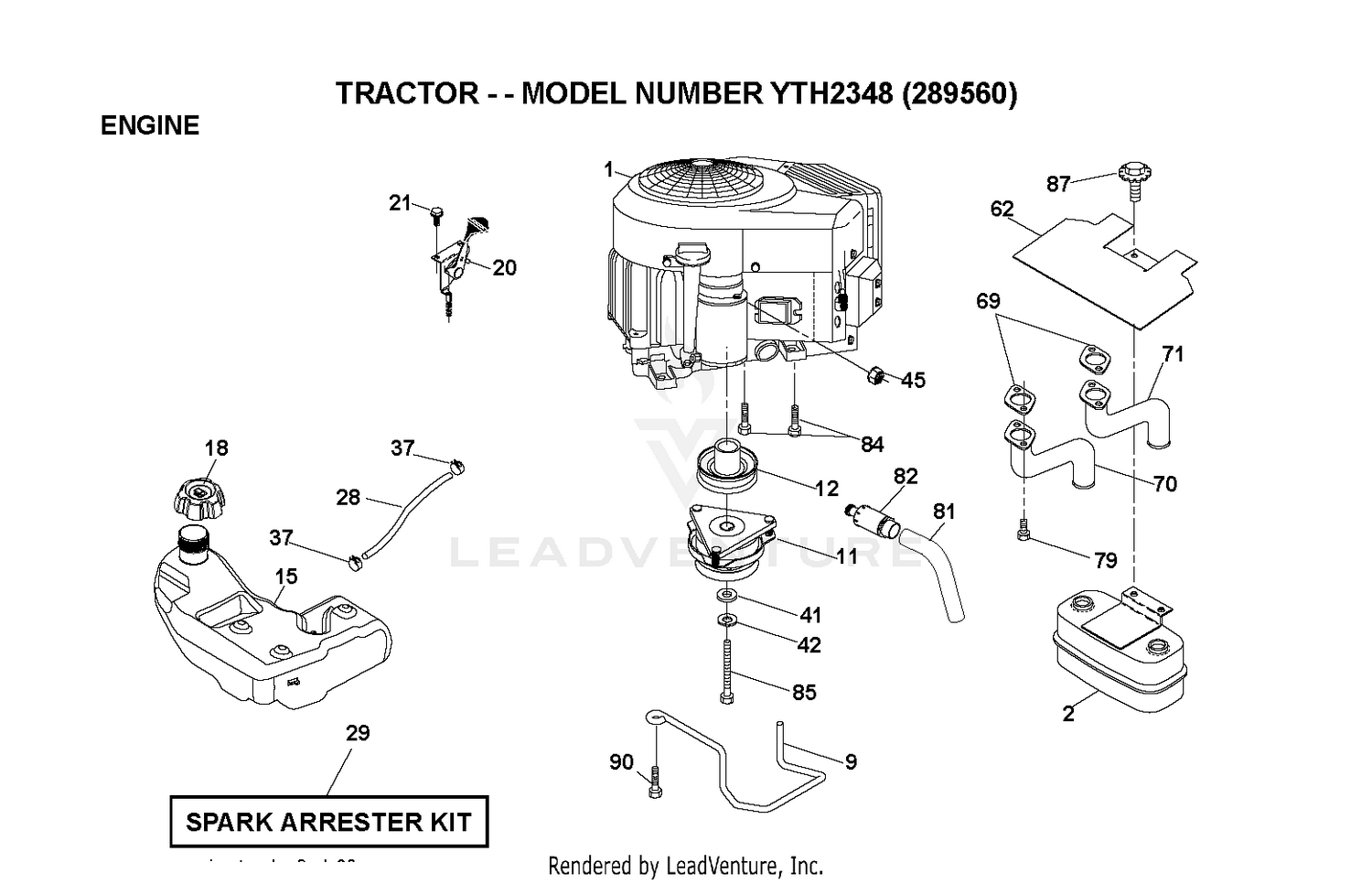

| Ref | Part Number | Description |
|---|
| 1 |
115-8486 |
SCREW-HH Price: $0.68 |
| 2 |
114-3825 |
FAN Price: $353.82 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 3 |
140-6482 |
HUB-FAN This part replaces 117-2364. Price: $160.95 |
| 4 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 5 |
117-4769 |
HYD MOTOR ASM Price: $932.88 |
| 6 |
120-8935-03 |
BRACKET-FAN Price: $221.61 |
| 7 |
324-5 |
SCREW-HH Price: $0.54 |
| 8 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 9 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
340-4 |
FITTING-STRAIGHT Price: $11.58 |
| 11 |
532414336 |
KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532400008. Price: $329.99 |
| 11 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 12 |
104-7201 |
NUT-HF Price: $0.69 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 13 |
99-6810 |
SCREW-HHF Price: $3.09 |
| 14 |
125-4610 |
SHIM-SUPPORT Price: $3.94 |
| 15 |
532400021 |
TANK.FUEL.SIDE-FILL.3.NON-EPA Price: $99.99 |
| 16 |
125-4598 |
TUBE ASM Price: $62.39 |
| 17 |
125-4596 |
TUBE ASM Price: $75.61 |
| 18 |
125-4597 |
TUBE ASM Price: $94.77 |
| 18 |
584248702 |
CAP.ASSY.FUEL.3".N-EPA.GRY.498 This part replaces 532194267. Price: $14.99 |
| 19 |
340-70 |
NUT-LOCK Price: $2.10 |
| 20 |
532423502 |
CONTROL.TH/CK.COBRA.B&S.TWN.BK Price: $24.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
