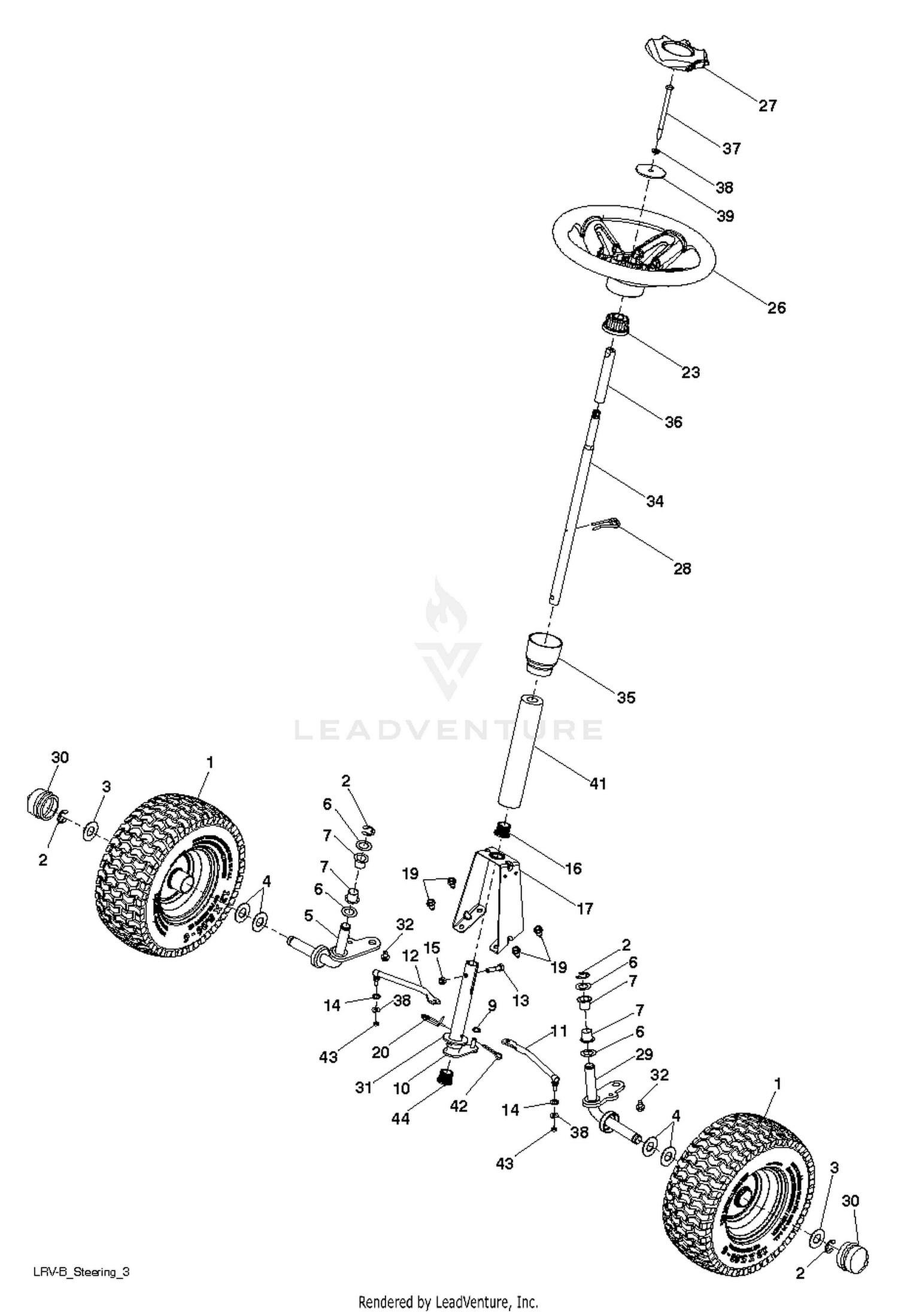

| Ref | Part Number | Description |
|---|
| 1 |
117-8255 |
HUB AND AXLE ASM Price: $323.06 |
| 1 |
532442139 |
WHEEL.TUBE.13 X 5 .00-6 MS613 Price: $74.99 |
| 2 |
144-3664 |
WHEEL-ASSEMBLY This part replaces 98-8691. Price: $177.38 |
| 2 |
812000001 |
E-RING LT Price: $2.99 |
| 3 |
232-37 |
TUBE Price: $31.26 |
| 3 |
532188967 |
WASHER.HARDENED Price: $2.99 |
| 4 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 4 |
532121749 |
WASHER Price: $1.99 |
| 5 |
532436181 |
WELDMENT.SPINDLE.RH.LRV2 Price: $19.99 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $5.99 |
| 7 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $1.99 |
| 9 |
819131414 |
WASHER Price: $3.99 |
| 10 |
532428057 |
WELDMENT, LWR STRG SHAFT Price: $22.99 |
| 11 |
532436183 |
SUBASM.LINKS.STEERING.LH.LRV2 Price: $14.99 |
| 12 |
532436184 |
SUBASM.LINK.STEERING.RH.LRV2 Price: $14.99 |
| 13 |
539976935 |
CAPSCREW 5/16 X 1/1/2 HEX HEAD This part replaces 874780524. Price: $1.99 |
| 14 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.99 |
| 15 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.99 |
| 16 |
532076715 |
BEARING.FLANGE.PWD.BRZ.885/865 Price: $2.99 |
| 17 |
532436178 |
SUPPORT.STEERING.UPPER.LRV2 Price: $8.99 |
| 19 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.99 |
| 20 |
532428045 |
CLIP.SPRING.STEERINGG Price: $2.99 |
| 23 |
532437747 |
STEERING.WHEEL.ADAPTER Price: $19.99 |
| 26 |
532442140 |
WHEEL.STEERING.STDSRR.659.OVRM Price: $59.99 |
| 27 |
532442141 |
CAP.WHEEL.STRG.STDSRRD.SRS.659 Price: $4.99 |
| 28 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $2.99 |
| 29 |
532436180 |
WELDMENT.SPINDLE.LH.LRV2 Price: $19.99 |
| 30 |
532436499 |
CAP.HUB.AXLE.LRVA/B Price: $3.99 |
| 31 |
819343210 |
WASHER Price: $1.99 |
| 32 |
817490528 |
SCREW Price: $2.99 |
| 34 |
532436182 |
SHAFT.STEERING.UPPER.LRV2 Price: $32.99 |
| 35 |
532442066 |
BOOT.LOWER.STEERING.WHEEL.LRVB Price: $5.99 |
| 36 |
532196075 |
SHAFT EXTENSION STEERING Price: $12.99 |
| 37 |
874780580 |
BOLT.FIN.HEX.5/16-18 Price: $2.99 |
| 38 |
810040500 |
LOCKWASHER Price: $2.99 |
| 39 |
819113812 |
WASHER.11/32 Price: $3.99 |
| 41 |
532436590 |
FOAM.SHAFT.STEERING Price: $5.99 |
| 42 |
532421076 |
PIN.COTTER.5/64X3/4 Price: $2.99 |
| 43 |
873540500 |
NUT, CROWNLOCK Price: $3.99 |
