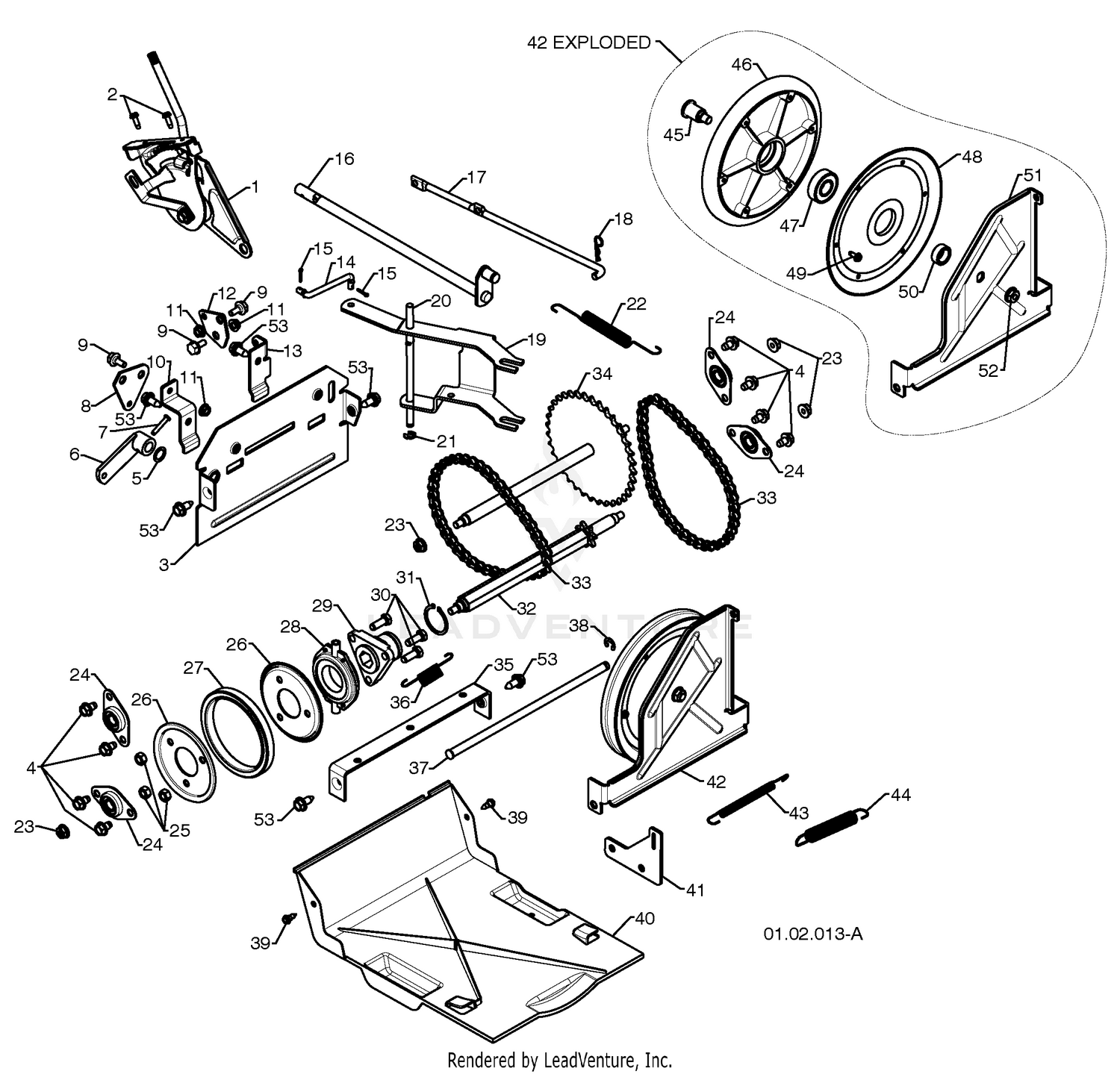

| Ref | Part Number | Description |
|---|
| 1 |
198875 |
SPEED SELECTOR ASSEMBLY Price: Call Us |
| 1 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 2 |
17501010 |
SCREW 10-24 X .625 Price: Call Us |
| 2 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 3 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 3 |
402685X421 |
END PLATE Price: Call Us |
| 4 |
17490508 |
SCREW 5/16-18 X .50 Price: Call Us |
| 4 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 5 |
3220-3 |
NUT-HJ Price: $0.28 |
| 5 |
57079 |
WASHER Price: Call Us |
| 6 |
147-3120 |
BALL JOINT RECEIVER ASM This part replaces 99-1460. Price: $16.35 |
| 6 |
405485 |
CONTROL ARM Price: Call Us |
| 7 |
145-4593 |
HYD CYLINDER SERVICE KIT This part replaces 106-9066. Price: $633.52 |
| 7 |
198580 |
CLEVIS PIN Price: Call Us |
| 8 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 8 |
403097X004 |
SHIFTER PLATE Price: Call Us |
| 9 |
402881 |
SHOULDER BOLT Price: Call Us |
| 9 |
5-1226 |
WASHER Price: $3.90 |
| 10 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 10 |
403096 |
X004 SHIFTER BRACKET Price: Call Us 403096 X004 |
| 11 |
191730 |
NUT 1/4-20 Price: Call Us |
| 11 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 12 |
402856 |
X004 CLUTCH PLATE Price: Call Us 402856 X004 |
| 12 |
HY4486 |
NUT UNF 1/2"NYLOC EXT THIN5/16 This part replaces 283-8. Price: $1.36 |
| 13 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 13 |
416717X004 |
CLUTCH BRACKET Price: Call Us |
| 14 |
110-3952 |
SPRING-TORSION, LH Price: $9.40 |
| 14 |
187101 |
SHIFTER LINK Price: Call Us |
| 15 |
322-1 |
SCREW-HH Price: $0.22 |
| 15 |
700279 |
RETAINER Price: Call Us |
| 16 |
105-3828 |
SPACER Price: $5.10 |
| 16 |
427542 |
CONTROL SHAFT Price: Call Us |
| 17 |
140-5248 |
PIN-PIVOT RAM, WELDED This part replaces 10-6060. Price: $25.64 |
| 17 |
402568 |
CLUTCH ROD Price: Call Us |
| 18 |
115-3259 |
KIT-SERVICE, PIN This part replaces 10-6110. Price: $39.21 |
| 18 |
169675 |
RETAINER Price: Call Us |
| 19 |
10-7820 |
PIVOT HINGE ASM Price: $504.57 |
| 19 |
401732 |
SHIFTER YOKE Price: Call Us |
| 20 |
137-9706 |
DECAL-WARNING This part replaces 93-8064. Price: $4.48 |
| 20 |
402310 |
PIVOT ROD Price: Call Us |
| 21 |
12000036 |
RETAINER Price: Call Us |
| 21 |
136-8484 |
FRAME-PULL, LH This part replaces 108-8632. Price: $382.66 |
| 22 |
138-6311 |
ARM-PULL-ASSEMBLY-LH This part replaces 92-0586. Price: $29.91 |
| 22 |
402878 |
RETURN SPRING Price: Call Us |
| 23 |
133-2337 |
ROLLER ASM This part replaces 99-4277. Price: $176.14 |
| 23 |
751153 |
NUT 5/16-18 Price: Call Us |
| 24 |
3290-317 |
WASHER-SPRING Price: $1.40 |
| 24 |
408981 |
BEARING Price: Call Us |
| 25 |
131-4295 |
PIN-PIVOT This part replaces 10-6090. Price: $51.39 |
| 25 |
73930500 |
NUT 5/16-18 Price: Call Us |
| 26 |
138-6303 |
ARM-PULL-ASSEMBLY-RH This part replaces 92-0585. Price: $29.91 |
| 26 |
198176X431 |
RUBBER WHEEL PLATE Price: Call Us |
| 27 |
179831 |
RUBBER RING Price: Call Us |
| 27 |
21-8470 |
SHAFT-ROLLER Price: $62.10 |
| 28 |
175344 |
BEARING Price: Call Us |
| 28 |
74-3730 |
SPACER-SPINDLE, REAR Price: $5.06 |
| 29 |
178613 |
WHEEL HUB Price: Call Us |
| 29 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 30 |
74760514 |
SCREW 5/16-18-.875 Price: Call Us |
| 30 |
83-1690 |
HOSE-HYD Price: $68.48 |
| 31 |
12000012 |
RETAINER RING Price: Call Us |
| 31 |
63-3850 |
HOSE ASM Price: $83.26 |
| 32 |
402187 |
SPROCKET SHAFT Price: Call Us |
| 32 |
94-4548 |
BUMPER-RECESSED Price: $4.68 |
| 33 |
32144-44 |
SCREW-HWH, THREAD ROLL Price: $1.39 |
| 33 |
401619 |
CHAIN Price: Call Us |
| 34 |
107-2598 |
LH LIFT ARM ASM Price: $139.43 |
| 34 |
417234 |
SPROCKET WELDMENT Price: Call Us |
| 35 |
105-5740 |
HOOK-LIFT Price: $13.14 |
| 35 |
401984X431 |
SHIFTER BRACKET Price: Call Us |
| 36 |
180135 |
SPRING Price: Call Us |
| 37 |
402652 |
PLATE PIVOT ROD Price: Call Us |
| 38 |
428288 |
E-RING .375 Price: Call Us |
| 39 |
184471 |
SHOULDER SCREW Price: Call Us |
| 40 |
410877 |
BOTTOM PAN Price: Call Us |
| 41 |
413429X479 |
SPRING BRACKET Price: Call Us |
| 42 |
402689 |
DRIVE PLATE ASSEMBLY Price: Call Us |
| 43 |
414557 |
IDLER SPRING Price: Call Us |
| 44 |
178828 |
IDLER SPRING Price: Call Us |
| 45 |
402504X008 |
PULLEY SHAFT Price: Call Us |
| 46 |
401820 |
DRIVE PLATE Price: Call Us |
| 47 |
198791 |
BEARING Price: Call Us |
| 48 |
402393 |
PULLEY HALF Price: Call Us |
| 49 |
17541008 |
SCREW 10-24 X .50 Price: Call Us |
| 50 |
402511 |
SPACER BEARING Price: Call Us |
| 51 |
418894X431 |
SWING PLATE Price: Call Us |
| 52 |
132010 |
NUT 3/8-16 Price: Call Us |
