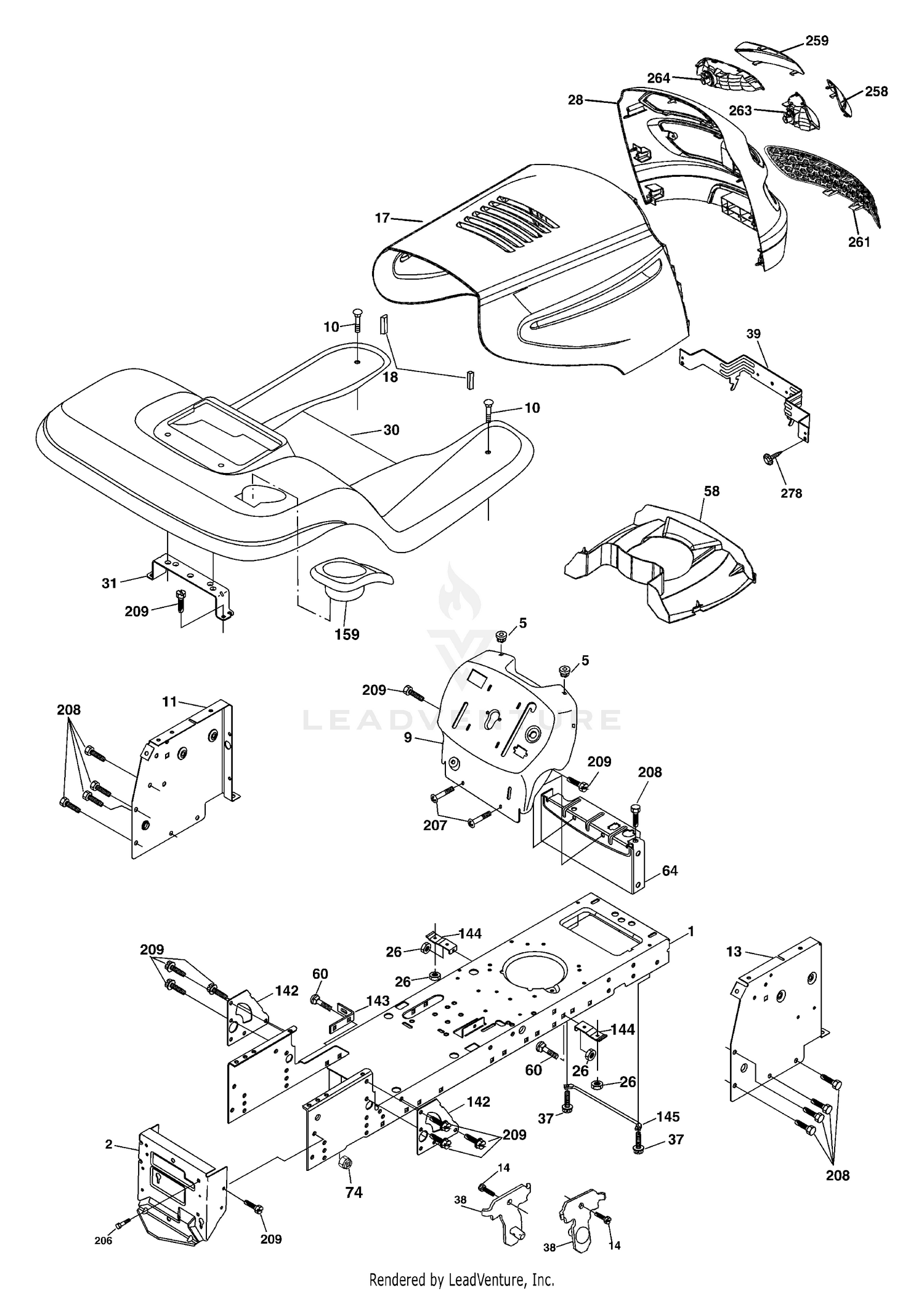

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 1 |
98-1471 |
WHEEL-STEERING Price: $145.99 |
| 2 |
176554 |
Drawbar Price: Call Us |
| 2 |
323-18 |
SCREW-HH Price: $0.82 |
| 3 |
93-6738 |
CHAIN Price: $13.80 |
| 4 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 5 |
155272 |
Bumper Hood/Dash Price: Call Us |
| 5 |
21-9260 |
COVER-DUST Price: $8.19 |
| 6 |
93-6768-03 |
GEAR-SECTOR Price: $243.62 |
| 9 |
187846X012 |
Dash Price: Call Us |
| 9 |
98-1459 |
DECAL Price: $3.93 |
| 10 |
323-9 |
SCREW-HH Price: $1.29 |
| 10 |
72140608 |
Bolt Carriage 3/8-16 x 1 Price: Call Us |
| 11 |
174996 |
Panel Dash Lh Price: Call Us |
| 11 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 12 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 13 |
175255 |
Panel Dash Rh Price: Call Us |
| 13 |
98-3445 |
SPACER Price: $6.02 |
| 14 |
104-3913 |
FRAME ASM Price: $5,068.52 |
| 14 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 15 |
98-3446 |
PLATE-REINFORCEMENT Price: $11.38 |
| 16 |
133-8095 |
DECAL-CE This part replaces 93-7252. Price: $3.73 |
| 17 |
183393X428 |
Hood Price: Call Us |
| 17 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 18 |
126938X |
Bumper Hood Price: Call Us |
| 18 |
3220-3 |
NUT-HJ Price: $0.28 |
| 19 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 20 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 21 |
93-6769-03 |
COLUMN-STEERING Price: $106.54 |
| 22 |
94-5969 |
SHAFT AND GEAR-STEERING Price: $352.69 |
| 23 |
256-27 |
BUSHING Price: $8.21 |
| 24 |
87-8640 |
WASHER-FLAT Price: $0.68 |
| 25 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 26 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 26 |
73800600 |
Nut Lock Hex W/Ins 3/8-16 unc Price: Call Us |
| 27 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 28 |
92-1812 |
SHAFT-PIVOT, LIFT Price: $51.90 |
| 29 |
32144-109 |
SCREW-THD Price: $1.29 |
| 30 |
188572X428 |
Fender Footrest Price: Call Us |
| 30 |
323-7 |
SCREW-HH Price: $0.65 |
| 31 |
139976 |
Bracket Fender Price: Call Us |
| 31 |
92-1818-01 |
ARM-SPRING, TENSION Price: $13.39 |
| 37 |
17490508 |
Screw Thdrol 6/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket Asm Pivot Mower Rear Price: Call Us |
| 39 |
174714 |
Bracket Pivot Price: Call Us |
| 58 |
189350 |
Duct Air Price: Call Us |
| 60 |
72140606 |
Bolt RDHD Sqnk 3/8-16 unc x 3/4 Price: Call Us |
| 64 |
154798 |
Dash Lower STLT Price: Call Us |
| 74 |
73680600 |
Nut Crownlock 3/8-16 unc Price: Call Us |
| 90 |
124346X |
Nut Self Thd Wsh - HD 1/4 Zinc Price: Call Us |
| 142 |
175702 |
Plate Reinforcement STLT Price: Call Us |
| 143 |
186689 |
Bracket Swaybar Chassis Price: Call Us |
| 144 |
175582 |
Bracket Footrest Step-thru Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 159 |
179950X428 |
Cupholder Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 207 |
17670508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw Hexwsh Thdr 3/8-16 x 3/4 Price: Call Us |
| 217 |
179132X428 |
Console Fuel Window Price: Call Us |
| 258 |
183835X599 |
Lens Grille Pro RH Price: Call Us |
| 259 |
183834X599 |
Lens Grille Pro LH Price: Call Us |
| 261 |
183829Z428 |
Insert Grille Price: Call Us |
| 263 |
183832 |
Bezel Grille LH Price: Call Us |
| 264 |
183833 |
Bezel Grille RH Price: Call Us |
