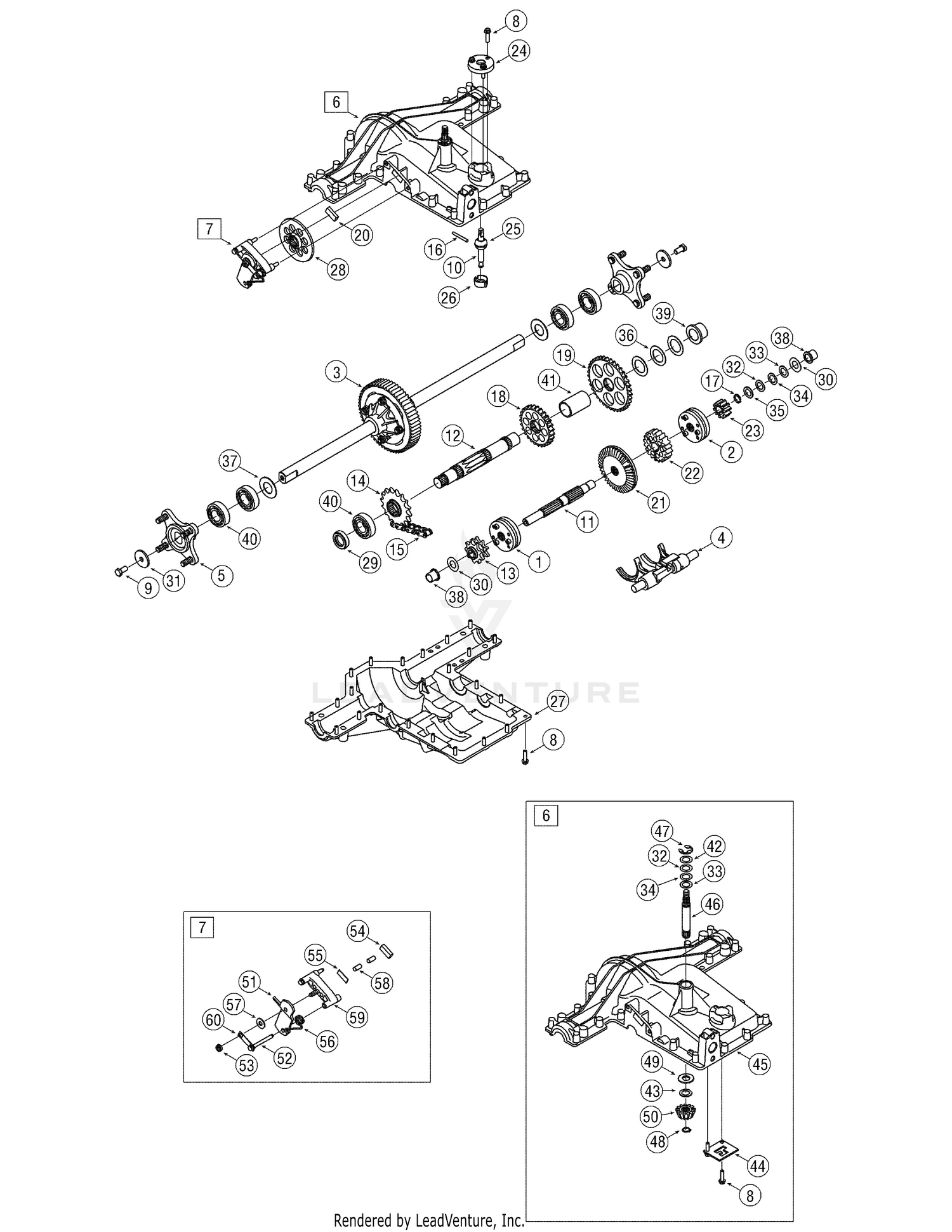

| Ref | Part Number | Description |
|---|
| 1 |
618-0225 |
REVERSE COLLAR ASSEMBLY Not Available Price: |
| 2 |
618-0226 |
Hi-Lo Collar Assembly Price: $110.25 |
| 3 |
918-04142 |
AXLE ASSEMBLY-DIFF Not Available Price: |
| 4 |
918-04156 |
SHIFT FORK ASSEMBLY - Not Available Price: |
| 5 |
918-04317 |
Wheel Hub Assembly Price: $102.24 |
| 6 |
919-04081 |
UPPER HOUSING ASSEMBLY Not Available This part replaces 619-04081. Price: |
| 7 |
961-0012 |
RIGHT HAND BRAKE ASSEMBLY Not Available Price: |
| 8 |
710-0788 |
Screw 1/4-20 x 1.0 Price: $6.20 |
| 9 |
710-3119 |
Lock bolt 3/8-16 x 0.75 Price: $5.91 |
| 10 |
747-1140 |
Shift Lever This part replaces 711-04215. Price: $49.28 |
| 11 |
711-1051A |
DRIVE SHAFT Not Available Price: |
| 12 |
711-1216 |
OUTPUT SHAFT (RH) Not Available Price: |
| 13 |
913-0446 |
SPROCKET-9T Not Available Price: |
| 14 |
913-0447 |
SPROCKET-16T Not Available Price: |
| 15 |
913-0448 |
ENDLESS CHAIN .625 Not Available Price: |
| 16 |
747-1140 |
Shift Lever This part replaces 715-04017A. Price: $49.28 |
| 17 |
916-0131 |
External Snap Ring Price: $6.21 |
| 18 |
717-04109 |
SPUR GEAR:27T Not Available Price: |
| 19 |
717-04110 |
SPUR GEAR:37T Not Available Price: |
| 20 |
917-0678 |
Brake Pad Price: $6.87 |
| 21 |
917-1438A |
SPUR GEAR 41T Not Available Price: |
| 22 |
917-1439A |
SPUR GEAR 20T Not Available Price: |
| 23 |
717-1440 |
SPUR GEAR 10T Not Available Price: |
| 24 |
918-04053 |
SHIFT COVER Not Available This part replaces 718-04053. Price: |
| 25 |
747-1140 |
Shift Lever This part replaces 718-04066. Price: $49.28 |
| 26 |
718-0504 |
Shifter Insert Price: $4.19 |
| 27 |
719-04083 |
HOUSING-LO Not Available Price: |
| 28 |
761-0215 |
Disc Brake Price: $19.46 |
| 29 |
921-04031 |
Oil Seal, 1.0 x 1.499 This part replaces 721-04031. Price: $9.58 |
| 30 |
936-0167 |
FLAT WASHER This part replaces 736-0167. Price: $6.01 |
| 31 |
736-0227 |
WASHER:FLAT: .390 x 1.50 x .134 This part replaces 936-0227. Price: $5.78 |
| 32 |
936-0336 |
Flat Washer, 5/8 x 1.0 x.030* Price: $3.90 |
| 33 |
936-0337 |
Flat Washer, 5/8 x 1.0 x.040* Price: $3.93 |
| 34 |
936-0349 |
Flat Washer, 5/8 x 1.0 x.020* Price: $3.86 |
| 35 |
736-0494 |
Flat Washer, .632 X 1.00 X .035 Price: $3.95 |
| 36 |
736-0715 |
THRUST WASHER Not Available Price: |
| 37 |
736-0745 |
Flat Washer, 1.010 X 1.56 X .060 Price: $11.28 |
| 38 |
741-04085 |
FLANGE BEARING W/KEY Not Available Price: |
| 39 |
741-04086 |
FLANGE BEARING W/KEY Not Available Price: |
| 40 |
741-0681 |
BALL BEARING Not Available Price: |
| 41 |
750-04244 |
SPACER Not Available Price: |
| 42 |
736-0495 |
THRUST WASHER Price: $3.90 |
| 43 |
736-0494 |
Flat Washer, .632 X 1.00 X .035 Price: $3.95 |
| 44 |
718-0540 |
LOCKOUT PLATE Not Available Price: |
| 45 |
618-04264 |
Upper Housing Price: Call Us |
| 46 |
711-1235 |
INPUT SHAFT Not Available Price: |
| 47 |
716-0231 |
E-Ring Price: $3.50 |
| 48 |
916-0114 |
Retaining Ring,.56 This part replaces 716-0114. Price: $5.99 |
| 49 |
936-0335 |
THRUST WASHER This part replaces 736-0335. Price: $5.94 |
| 50 |
717-1463A |
BEVEL GEAR 13T Not Available Price: |
| 51 |
761-0212 |
Brake Arm Actuator Price: Call Us |
| 52 |
710-1206 |
Screw, 1/4-20 x 2.375 Price: $6.20 |
| 53 |
912-0273 |
NUT This part replaces 712-0273. Price: $4.02 |
| 54 |
917-0678 |
BRAKE PUCK This part replaces 717-0678. Price: $6.87 |
| 55 |
917-0682 |
PUCK PLATE This part replaces 717-0682. Price: $8.68 |
| 56 |
732-0925 |
Torsion Spring, .75 x 3 coils Price: $8.32 |
| 57 |
736-0371 |
Flat Washer, .343 x .880 x .062 Price: $3.94 |
| 58 |
741-0343 |
Actuating Pin 5/16 dia. Price: $8.93 |
| 59 |
761-0207A |
BRAKE YOKE Price: $35.18 |
