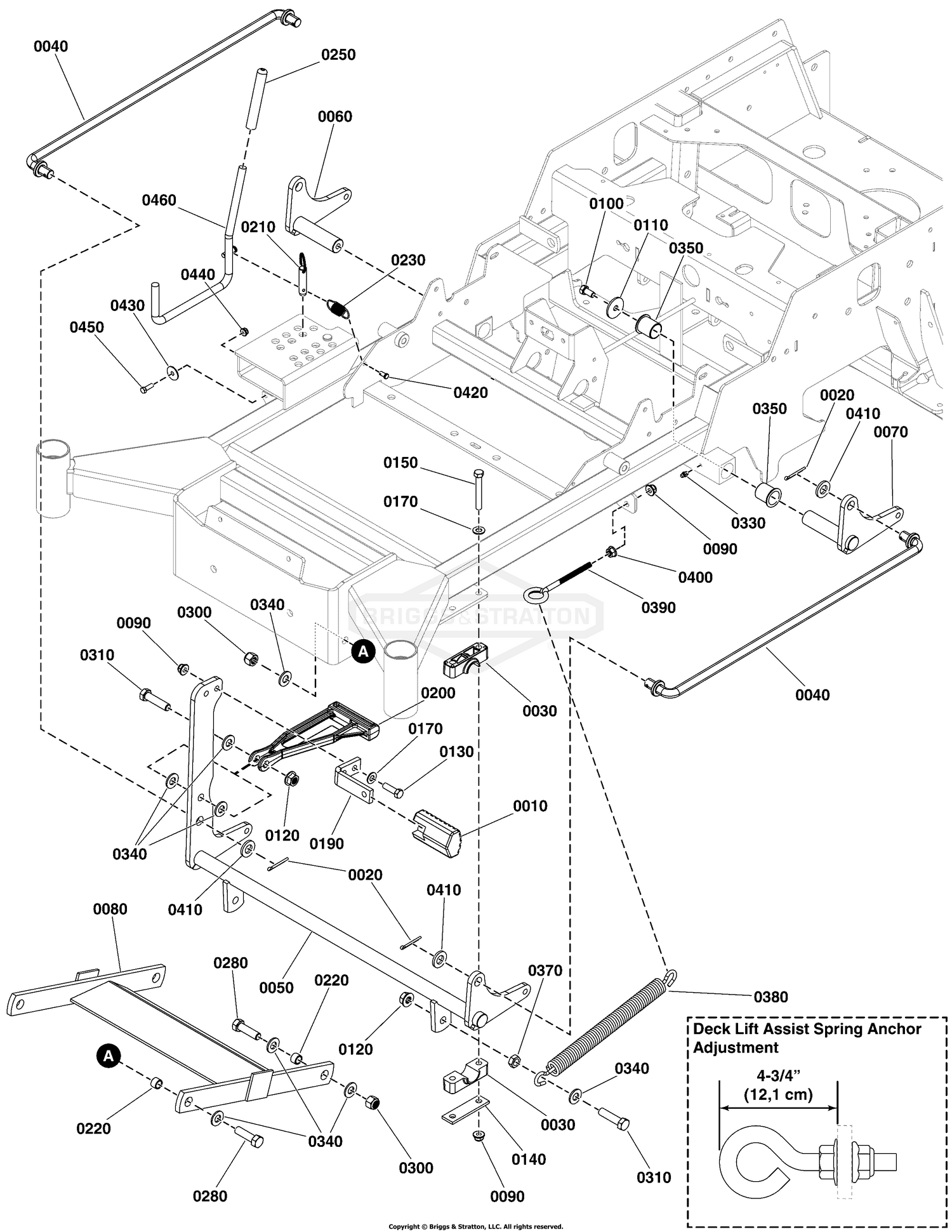

| Ref | Part Number | Description |
|---|
| 0010 |
5104262YP |
PEDAL, RUBBER Price: $10.13 |
| 0020 |
5025203X10SM |
PIN, COTTER, 1/8" X 1 Price: $3.40 |
| 0030 |
5100634SM |
PIVOT BLOCK, PLASTIC Price: $6.83 |
| 0040 |
5105147YP |
ROD, DECK LIFT, 560Z Price: $70.31 |
| 0050 |
5415828AYP |
WELD, DECK LIFT SHAFT, 560Z - BLK Price: $164.29 |
| 0060 |
5411453AYP |
WELD, DECK LIFT PIVOT, RH - BLK Price: $38.43 |
| 0070 |
5411454AYP |
WELD, DECK LIFT PIVOT, LH - BLK Price: $38.43 |
| 0080 |
5415777AYP |
BAR-PULLER Price: $118.50 |
| 0090 |
5025394SM |
NUT, 3/8-16 HEX NYLOCK Price: $3.82 |
| 0100 |
5025443SM |
BOLT - 3/8-16 X 3/4 Price: $2.97 |
| 0110 |
5100548SM |
WASHER - .39X1.50 Price: $3.82 |
| 0120 |
770225 |
NUT This part replaces 5025396SM. Price: $2.76 |
| 0130 |
5025013X10SM |
BOLT, 3/8-16 X 1-1/4" Price: $3.51 |
| 0140 |
84012634 |
PLATE, Support This part replaces 5403925AYP. Price: $5.64 |
| 0150 |
5025013X22SM |
BOLT, 3/8-16 X 2-3/4" Price: $3.62 |
| 0170 |
71072MA |
WASHER, FLAT .406X.81 This part replaces 703590. Price: $3.63 |
| 0190 |
5061569AYP |
PEDAL, FOOT Price: $37.47 |
| 0200 |
5104133YP |
ARM-LINK Price: $31.97 |
| 0210 |
5023498SM |
PIN, HITCH, 1/2 X 2.0 Price: $7.88 |
| 0220 |
5020870SM |
INSERT, BEARING Price: $4.95 |
| 0230 |
5010213YP |
SPRING-EXT, .740 ODX2 Price: $13.22 |
| 0250 |
5021880SM |
GRIP, FOAM Price: $5.17 |
| 0280 |
5025018X14SM |
BOLT, 1/2-20 X 1-3/4 GD8 YZ This part replaces 5025018X14YP. Price: Call Us |
| 0300 |
5025098SM |
NUT, 1/2-20 HEX NYLON Price: $5.32 |
| 0310 |
5025017X16YP |
BOLT, 1/2-13 X 2 GD5 Price: $3.94 |
| 0330 |
5020095SM |
GREASE FITTING, 1/4-2 Price: $3.52 |
| 0340 |
5025158SM |
WASHER, 1/2" SAE Price: $3.51 |
| 0350 |
5023343SM |
BUSHING, 1.00 X 1.13 Price: $5.75 |
| 0370 |
5025301SM |
NUT, 1/2-13 HEX JAM Price: $2.90 |
| 0380 |
5023355SM |
SPRING, DECK LIFT ASS Price: $46.29 |
| 0390 |
5021812SM |
EYE BOLT, 3/8-16 X 4- Price: $5.32 |
| 0400 |
5025128SM |
NUT, 3/8-16 HEX SERRA Price: $2.97 |
| 0410 |
5025477SM |
WASHER, 5/8" YZ Price: $3.51 |
| 0420 |
5025212X4SM |
PIN, CLEVIS, 1/4 X 1/ Price: $3.29 |
| 0430 |
5025288YP |
WASHER, 1/4 FENDER Price: $3.29 |
| 0440 |
5025391FS |
NUT This part replaces 703463. Price: $3.62 |
| 0450 |
703338 |
BOLT,1/4-20X5/8 Price: $3.19 |
