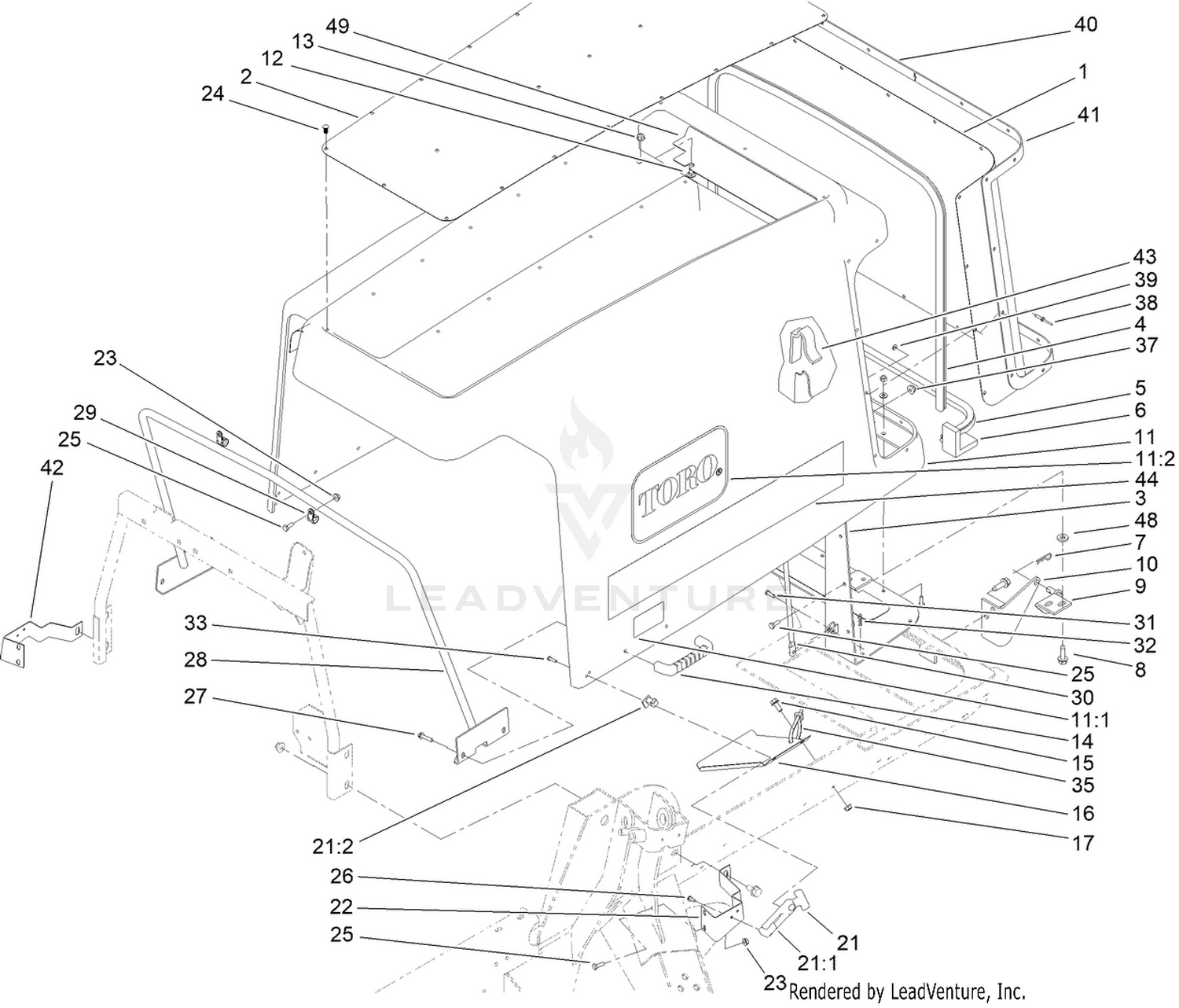

Hood and Screen Assembly
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 114-3844-03 | SCREEN-REAR Price: $273.23 |
| 2 | 114-3845-03 | SCREEN-TOP Price: $191.43 |
| 3 | 114-3824-03 | SCREEN ASM Price: $488.94 |
| 4 | 114-3823 | SEAL-BULB Price: $64.68 |
| 5 | 104-3590 | SEAL-BULB Price: $37.82 |
| 6 | 104-3580 | SEAL-CORNER, SCREEN Price: $32.63 |
| 7 | 3290-467 | PIN-HAIR Price: $0.27 |
| 8 | 32144-109 | SCREW-THD Price: $1.29 |
| 9 | 104-3589 | PIVOT-SCREEN Price: $79.95 |
| 10 | 104-3588-03 | PIVOT-SCREEN Price: $32.46 |
| 11 | 119-0056 | HOOD ASM Price: $3,145.30 |
| 12 | 3230-2 | BOLT-CARR Price: $0.47 |
| 13 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 14 | 65-5100 | HANDLE-DOOR Price: $9.05 |
| 15 | 3234-5 | SCREW-HHF Price: $0.42 |
| 16 | 104-3560-03 | DEFLECTOR-FILTER, OIL Price: $45.90 |
| 17 | 32128-20 | NUT-HF Price: $0.99 |
| 21 | 94-5626 | FLEXIBLE DRAW LATCH ASM Price: $42.59 |
| 22 | 104-2253-03 | BRACKET-LATCH, LH Price: $66.38 |
| 23 | 32128-33 | NUT-HF Price: $0.25 |
| 24 | 114-4899 | PLUG-PLASTIC Price: $0.39 |
| 25 | 321-4 | SCREW-HH Price: $0.99 |
| 26 | 32144-1 | SCREW-TAPTITE Price: $3.19 |
| 27 | 137-3101 | SCREW-PLASTIC, HWH This part replaces 46-8092. Price: $0.59 |
| 28 | 104-3505-03 | SUPPORT-HOOD Price: $120.77 |
| 29 | 2412-134 | CLAMP-R Price: $5.79 |
| 30 | 104-8313 | ROD-HOOD Price: $58.83 |
| 31 | 283-67 | PIN-CLEVIS Price: $2.04 |
| 32 | 1-806003 | PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 33 | 32104-4 | SCREW Price: $0.47 |
| 35 | 3290-378 | TIE-CABLE Price: $0.79 |
| 37 | 104-7201 | NUT-HF Price: $0.69 |
| 38 | 3269-28 | RIVET-POP Price: $0.47 |
| 39 | 3269-26 | WASHER-PLAIN Price: $0.99 |
| 40 | 115-3759-03 | MOUNT-SCREEN, RH Price: $90.64 |
| 41 | 115-3758-03 | MOUNT-SCREEN, LH Price: $90.64 |
| 42 | 104-2255-03 | BRACKET-LATCH, RH Price: $66.38 |
| 43 | 115-8479 | SEAL-FOAM Price: $1.98 |
| 44 | 106-2045 | DECAL-HOOD Price: $47.06 |
| 48 | 43-0940 | SPACER Price: $1.25 |
