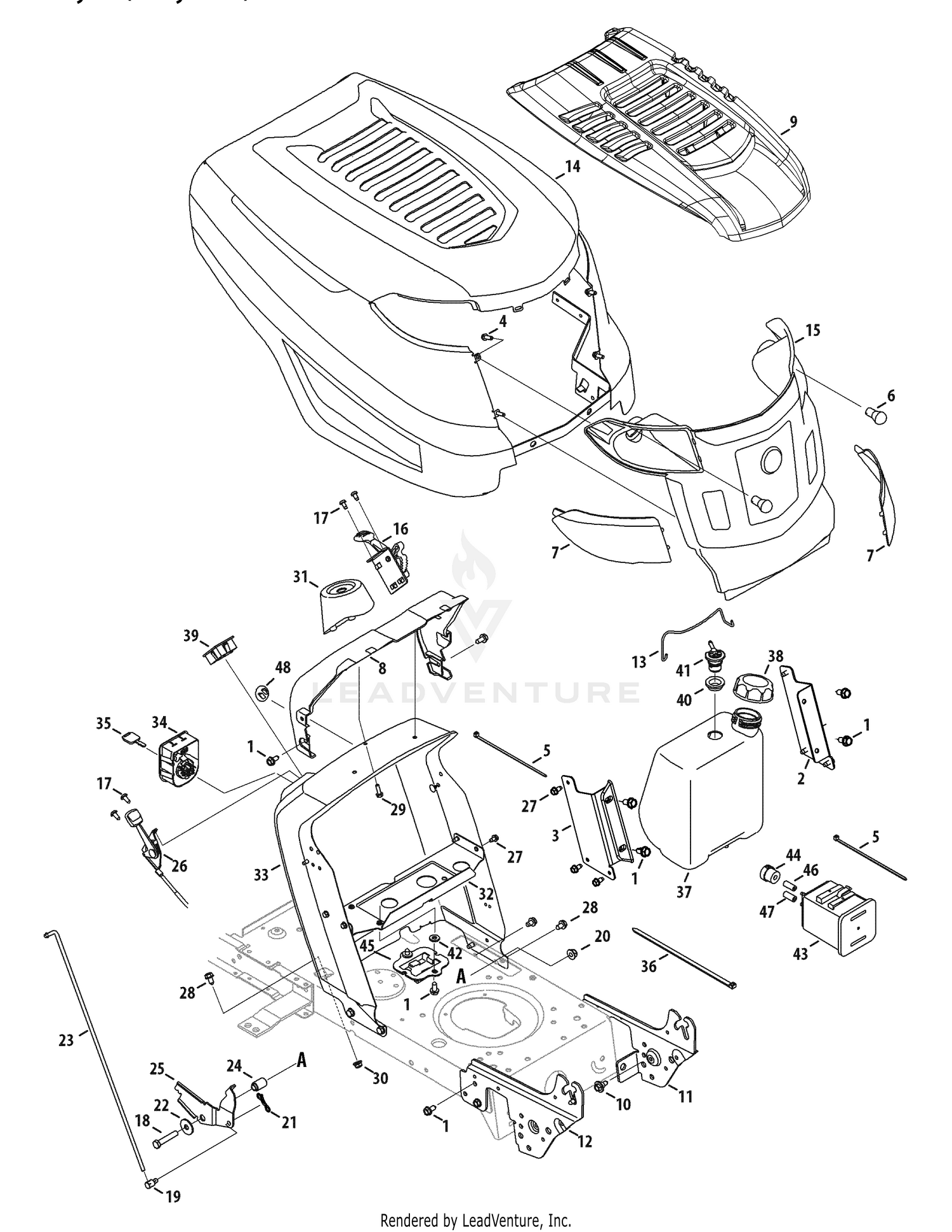

| Ref | Part Number | Description |
|---|
| 1 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 4 |
710-05108 |
Screw, 1/4 x .750 Price: $3.19 |
| 5 |
725-0157 |
Cable Tie Price: $3.46 |
| 6 |
925-0963 |
Miniature lamp 12V socket Price: $6.73 |
| 7 |
731-06095 |
Grill Lens - LH Price: $10.81 |
| 7 |
731-06096 |
Grill Lens - RH Price: $10.74 |
| 8 |
731-05078C |
Dash Collar Assembly Price: $15.85 |
| 9 |
731-06194B |
Hood Scoop This part replaces 731-06194A. Price: $49.26 |
| 10 |
738-04091A |
Shoulder Screw .43 x .29 Price: $3.50 |
| 11 |
783-05327B-0637 |
Suppport Bracket LH Price: $35.56 |
| 12 |
783-05328B-0637 |
SUPPORT BRACKET (RH) This part replaces 783-05328A-0637. Price: $37.34 |
| 13 |
747-04744A |
BATTERY ROD ASSEMBLY This part replaces 683-04448-0637. Price: $9.09 |
| 14 |
683-04441A-0638 |
Hood Assembly This part replaces 683-04441-0638. Price: $313.46 |
| 15 |
631-04272 |
Grill Price: $61.79 |
| 16 |
983-04226 |
Hydro Control Assembly Price: $19.05 |
| 17 |
710-04483 |
SCREW 1/4-20 x .500 Price: $5.97 |
| 18 |
710-3144 |
Hex Screw 3/8-16 x 2.00 Price: $4.02 |
| 19 |
711-0736 |
ADJUSTMENT FERRULE 1/4-20 x 1.00 Not Available Price: |
| 20 |
712-04065 |
Flange Lock Nut 3/8-16 Price: $3.68 |
| 21 |
714-04040 |
Cotter Pin, Bow Tie Price: $1.28 |
| 22 |
736-0133 |
Washer, Flat, .411 x 1.25 x .100 This part replaces 936-0133. Price: $4.67 |
| 23 |
747-04430 |
Control Rod, Speed Selector Price: $19.25 |
| 24 |
750-04465B |
Flange Spacer, .390 x .671 x 1.095 This part replaces 750-04465. Price: $3.64 |
| 25 |
783-04862 |
SPEED TRANSMISSION LATCH Not Available Price: |
| 26 |
746-04364 |
Throttle/Choke Control Cable Price: $42.43 |
| 28 |
710-0604A |
Screw 5/16-18 x .625 Price: $3.96 |
| 29 |
710-0895 |
Hex Screw 1/4-15 x .750 Price: $5.82 |
| 30 |
712-04063 |
Flange lock Nut 5/16-18 Price: $3.56 |
| 31 |
731-04945 |
Support Shaft Price: $16.22 |
| 33 |
983-04889C-0637 |
DASH (POWDER BLACK) Not Available This part replaces 783-04889B-0637. Price: |
| 34 |
925-06119C |
IGNITION MODULE SWITCH RMC (MAN PTO BLK) This part replaces 925-04227B. Price: $102.50 |
| 35 |
925-1745A |
Key Price: $15.91 |
| 36 |
726-0230 |
Cable Tie Price: $23.95 |
| 37 |
651P08849 |
FUEL TANK (1.36 GAL) This part replaces 751-10782. Price: $85.45 |
| 37 |
751-0659D |
Fuel Tank, 2 Gallons Price: $74.59 |
| 38 |
751-0603B |
TANK CAP This part replaces 751-0603A. Price: $20.42 |
| 38 |
951-12426B |
Fuel Cap This part replaces 951-10947. Price: $36.44 |
| 39 |
925-04156 |
Ammeter Monitor Indicator Price: $25.99 |
| 48 |
731-05265 |
Choke Plug Price: $5.01 |
