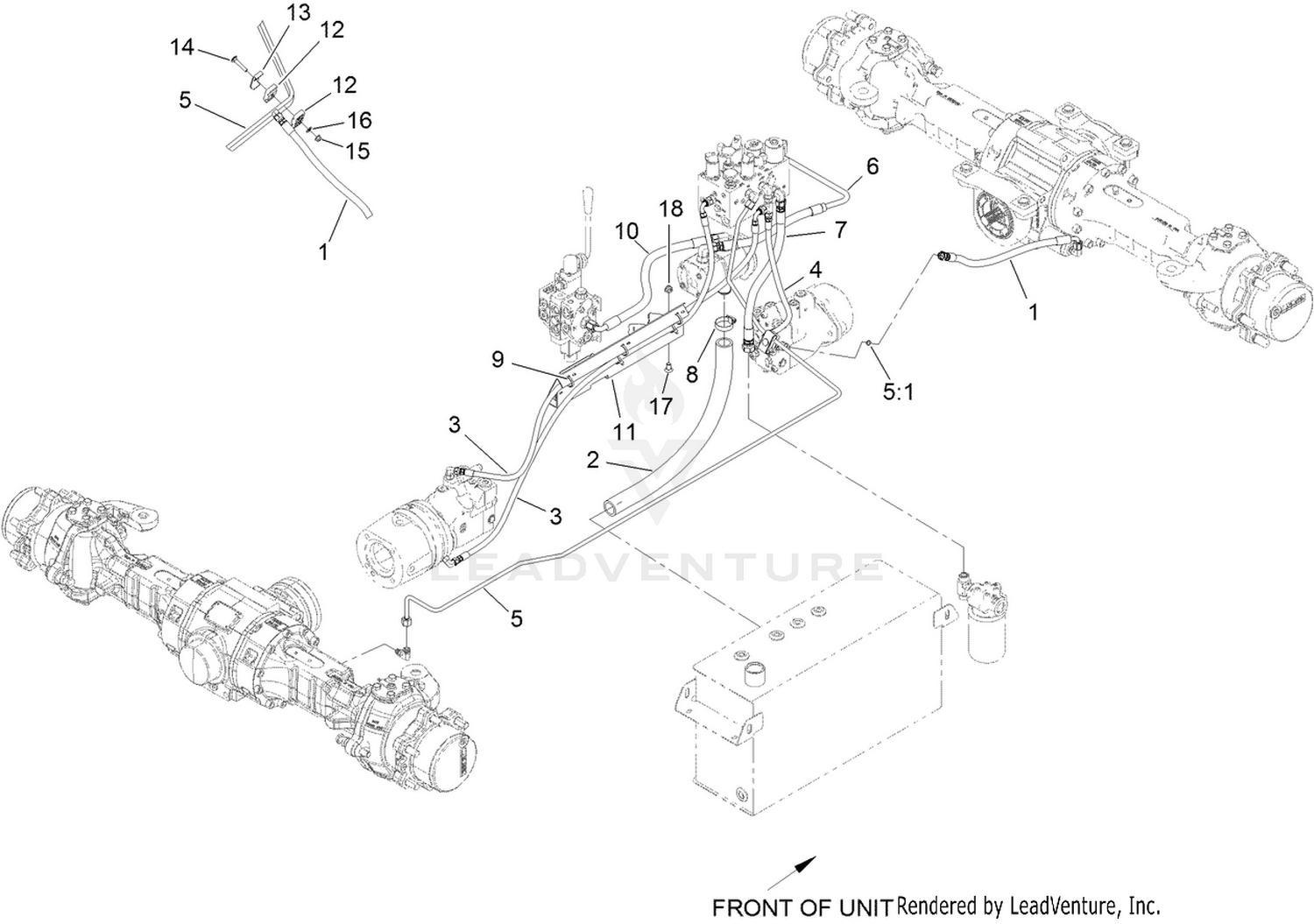

Hydraulic Hose Assembly 3
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 69-5490 | HOSE ASM Price: $89.51 |
| 2 | 132-6490 | HOSE Price: $114.04 |
| 3 | 133-2255 | HOSE ASM Price: $64.99 |
| 4 | 133-2259 | HOSE ASM Price: $62.21 |
| 5 | 133-2280 | HYD TUBE ASM Price: $116.84 |
| 6 | 136-9709 | TUBE-HYDRUALIC Price: $135.62 |
| 7 | 136-9714 | HOSE ASM Price: $57.22 |
| 8 | 2412-111 | CLAMP Price: $4.39 |
| 9 | 3290-378 | TIE-CABLE Price: $0.79 |
| 10 | 104-2807 | HOSE-HYD Price: $84.20 |
| 11 | 138-8023-0P | BRACKET-ROUTING Price: $84.46 |
| 12 | 56-7972 | CLAMP-TUBE Price: $13.55 |
| 13 | 119-1419 | PLATE-CLAMP Price: $11.89 |
| 14 | 3230-4 | BOLT-CARR Price: $0.47 |
| 15 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 16 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 17 | 3231-21 | SCREW-CARR Price: $0.76 |
