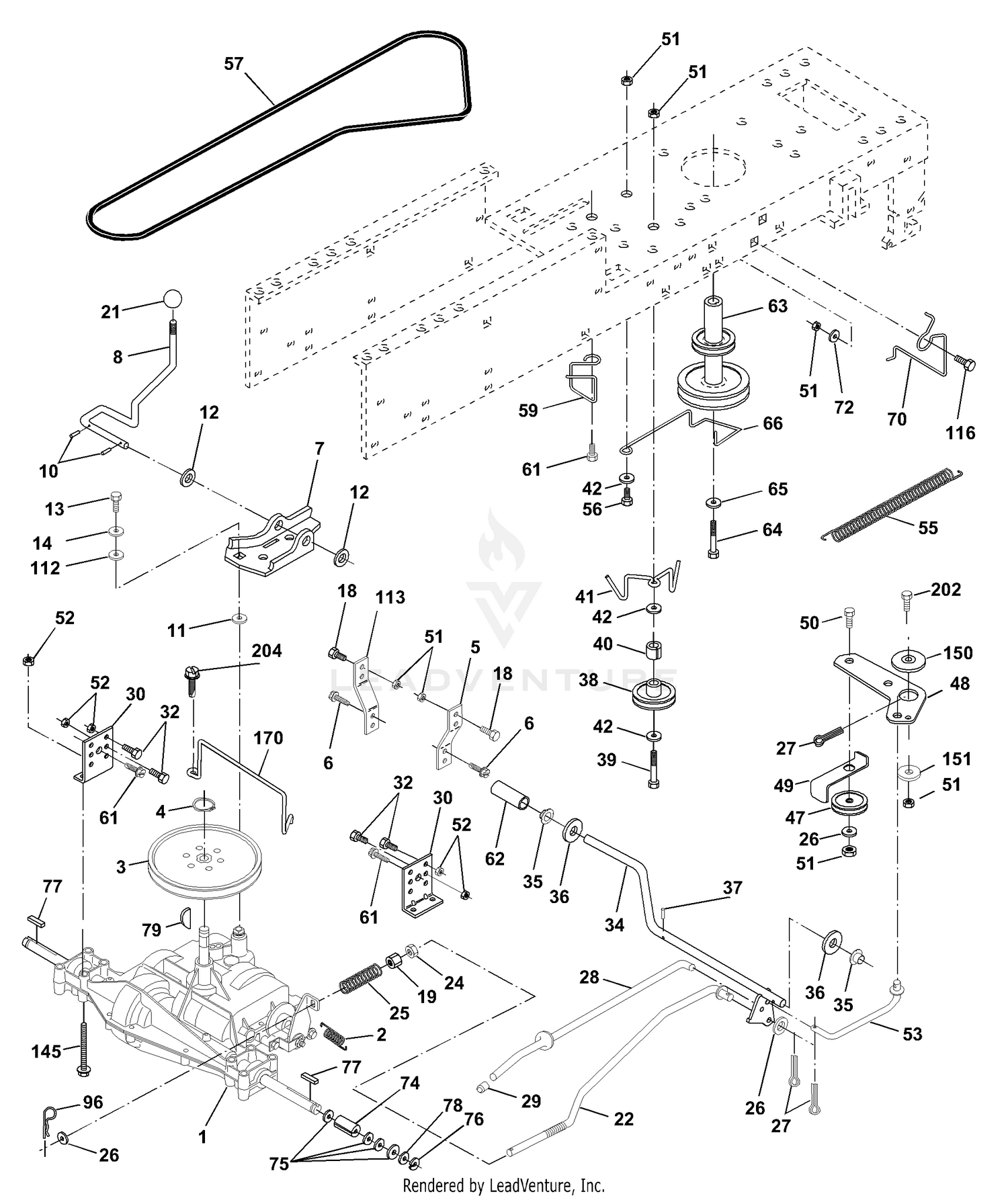

| Ref | Part Number | Description |
|---|
| 1 |
105-9208 |
SCREW-HEAD, WING Price: $15.18 |
| 2 |
104-5599 |
COVER-CONSOLE Price: $250.44 |
| 2 |
146682 |
Spring Return Brake Price: Call Us |
| 3 |
123666X |
Pulley Transaxle 18" tires Price: Call Us |
| 3 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 4 |
12000028 |
Ring Retainer # 5100-62 Price: Call Us |
| 4 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 5 |
121520X |
Strap Torque 30 Degrees RH Price: Call Us |
| 5 |
99-7430 |
RELAY-MINI Price: $22.99 |
| 6 |
104-5613-03 |
PANEL-RELAY Price: $43.19 |
| 6 |
17060512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 7 |
162240 |
Plate Rod Shift T/a Price: Call Us |
| 7 |
3250-27 |
SCREW-PPH Price: $0.22 |
| 8 |
105-3876 |
DISCONTINUED Price: Call Us |
| 8 |
131679 |
Rod Shifter Blk Price: Call Us |
| 9 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 10 |
32148-6 |
NUT-CLINCH Price: $1.24 |
| 10 |
76020416 |
Pin Cotter 1/8 X 1 Cad Price: Call Us |
| 11 |
105-9209 |
RECEPTICLE-CLIP ON Price: $2.44 |
| 11 |
105701X |
Washer Plate Shf 388 Sq Hole Price: Call Us |
| 12 |
104-5612-03 |
SUPPORT-COVER Price: $69.27 |
| 12 |
19151216 |
Washer 15/32 X 3/4 X 16 Ga Price: Call Us |
| 13 |
32128-20 |
NUT-HF Price: $0.99 |
| 13 |
74550412 |
Bolt 1/4-28 unf Gr. 8 w/Patch Price: Call Us |
| 14 |
10040400 |
Washer Lock Hvy Helical 1/4 Price: Call Us |
| 14 |
98-9308 |
GAUGE-TEMPERATURE Price: $112.90 |
| 15 |
32144-18 |
SCREW-HWH Price: $1.80 |
| 16 |
120-2244 |
HOURMETER This part replaces 75-6820. Price: $48.06 |
| 17 |
95-8999 |
SWITCH Price: $42.14 |
| 18 |
104-5611-03 |
DISCONTINUED Price: Call Us |
| 18 |
74780616 |
Bolt Fin Hex 3/8-16 unc X 1 Gr. 5 Price: Call Us |
| 19 |
105-3890 |
DECAL-CONSOLE Price: $80.07 |
| 19 |
105-9223 |
DECAL-CONSOLE, CE Price: $14.69 |
| 19 |
73800600 |
Nut lock Hex w/Ins 3/8-16 Unc Price: Call Us |
| 20 |
37-2690 |
CAPACITOR Price: $155.98 |
| 21 |
106933X |
Knob Rd 1/2-13 Plstc Thds Blk Price: Call Us |
| 21 |
74-2310 |
CLAMP-PLASTIC Price: $2.87 |
| 22 |
117433 |
RIVET-POP Price: $0.31 |
| 22 |
130804 |
Rod Brake LT Price: Call Us |
| 23 |
99-7416 |
CAP Price: $6.64 |
| 24 |
73350600 |
Nut Hex Jam 3/8-16 Unc Price: Call Us |
| 24 |
99-7411 |
POINT-POWER Price: $30.69 |
| 25 |
106888X |
Spring Rod Brake 2 00 Zinc Price: Call Us |
| 25 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 26 |
104-5610-03 |
PANEL-DASH, REAR Price: $47.64 |
| 26 |
19131316 |
Washer 13/32 X 13/16 X 16 Ga Price: Call Us |
| 27 |
76020412 |
Pin Cotter 1/8 X 3/4 Cad Price: Call Us |
| 27 |
98-7611 |
CONTROLLER-GLOW Price: $316.53 |
| 28 |
145204 |
Rod Brake Parking LT/YT Price: Call Us |
| 28 |
32128-33 |
NUT-HF Price: $0.25 |
| 29 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 29 |
71673 |
Cap Brake Parking Black Price: Call Us |
| 30 |
104-5609-03 |
PANEL-DASH, FRONT Price: $39.60 |
| 30 |
130807 |
Bracket Transmission Price: Call Us |
| 31 |
105-3986 |
MODULE-CONTROL, DECK Price: $460.07 |
| 32 |
3250-13 |
SCREW-PPH Price: $0.95 |
| 32 |
74760512 |
Bolt Fin Hex 5/16-18 x 3/4 Price: Call Us |
| 33 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 34 |
155071 |
Shaft Asm Pedal Foot Price: Call Us |
| 34 |
321-6 |
SCREW-HH Price: $0.25 |
| 35 |
105-9840 |
BRACKET-LATCH, RH Price: $18.22 |
| 35 |
120183X |
Bearing Nylon Blk 629 Id Price: Call Us |
| 36 |
105-9842 |
PLATE-LATCH, CE Price: $15.93 |
| 36 |
19211616 |
Washer 21/32 X 1 X 16 Ga Price: Call Us |
| 37 |
105-9841 |
BRACKET-LATCH, LH Price: $18.22 |
| 37 |
1572H |
Pin Roll 3/16 X 1" Price: Call Us |
| 38 |
105-9830 |
DECAL-LEVER LOCK, CE Price: $3.12 |
| 38 |
131494 |
Pulley Idler Flat Price: Call Us |
| 39 |
105-9836 |
DISCONTINUED Price: Call Us |
| 39 |
72110622 |
Bolt Rdhd 3/8-16 Unc x 2-3/4 Gr.5 Price: Call Us |
| 40 |
4470J |
Spacer Split 395 X 59 Bzp Price: Call Us |
| 41 |
165838 |
Keeper Belt Idler Price: Call Us |
| 42 |
19131312 |
Washer 13/32 X 13/16 X 12 Ga Price: Call Us |
| 47 |
127783 |
Pulley Idler V Groove Plastic Price: Call Us |
| 48 |
154407 |
Bellcrank Clutch Grnd Drv STL Price: Call Us |
| 49 |
123205X |
Retainer Belt Style Spring Price: Call Us |
| 50 |
74760624 |
Bolt Hex Hd 3/8-16 unc X 1-1/2 Price: Call Us |
| 51 |
73680600 |
Nut Crownlock 3/8-16 Unc Price: Call Us |
| 52 |
73680500 |
Nut Crownlock 5/16-18 unc Price: Call Us |
| 53 |
105710X |
Link Clutch 7 66 Price: Call Us |
| 55 |
105709X |
Spring Return Clutch 6 75 Price: Call Us |
| 56 |
74760620 |
Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us |
| 57 |
130801 |
V-Belt Ground Drive 95 Price: Call Us |
| 59 |
169691 |
Keeper Belt Chassis Span Ctr Price: Call Us |
| 61 |
17060612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 62 |
8883R |
Cover Pedal Blk Round Price: Call Us |
| 63 |
140186 |
Engine Pulley LT/YT Price: Call Us |
| 64 |
71170764 |
Bolt Hex 7/16-20 x 4 Gr 5 Price: Call Us |
| 65 |
10040700 |
Washer Lock Hvy Hlcl Spr 7/16 Price: Call Us |
| 66 |
154778 |
Keeper Belt Engine Price: Call Us |
| 70 |
134683 |
Guide Belt Mower Drive RH Price: Call Us |
| 72 |
19132012 |
Washer 13/32 X 1-1/4 X 12 Ga Price: Call Us |
| 74 |
137057 |
Spacer Axle Price: Call Us |
| 75 |
121749X |
Washer 25/32 X 1 1/4 X 16 Ga Price: Call Us |
| 76 |
12000001 |
E-ring #5133-75 Price: Call Us |
| 77 |
123583X |
Key Square 2 0 X 1845/ 1865 Price: Call Us |
| 78 |
121748X |
Washer 25/32 X 1-5/8 X 16 Ga Price: Call Us |
| 79 |
2228M |
Key Woodruff Price: Call Us |
| 96 |
4497H |
Retainer Spring 1" Price: Call Us |
| 112 |
19091210 |
Washer 9/32 X 3/4 X 10 Ga Price: Call Us |
| 113 |
127285X |
Strap Torque 90 Degrees LH Price: Call Us |
| 116 |
72110610 |
Bolt Rdhd Sq Neck 3/8-16 x 1.25 Price: Call Us |
| 145 |
74490540 |
Bolt Hex Flg. Hd. 5/16-18 x Gr.5 Price: Call Us |
| 150 |
165850 |
Bushing Bellcrank Price: Call Us |
| 151 |
19133210 |
Washer 13/32 x 2 x 10 Ga. Price: Call Us |
| 170 |
165849 |
Keeper, Belt Transaxle Gear Price: Call Us |
| 202 |
72110612 |
Bolt Carr Sh 3/8-16 x 1-1/2 Gr.5 Price: Call Us |
