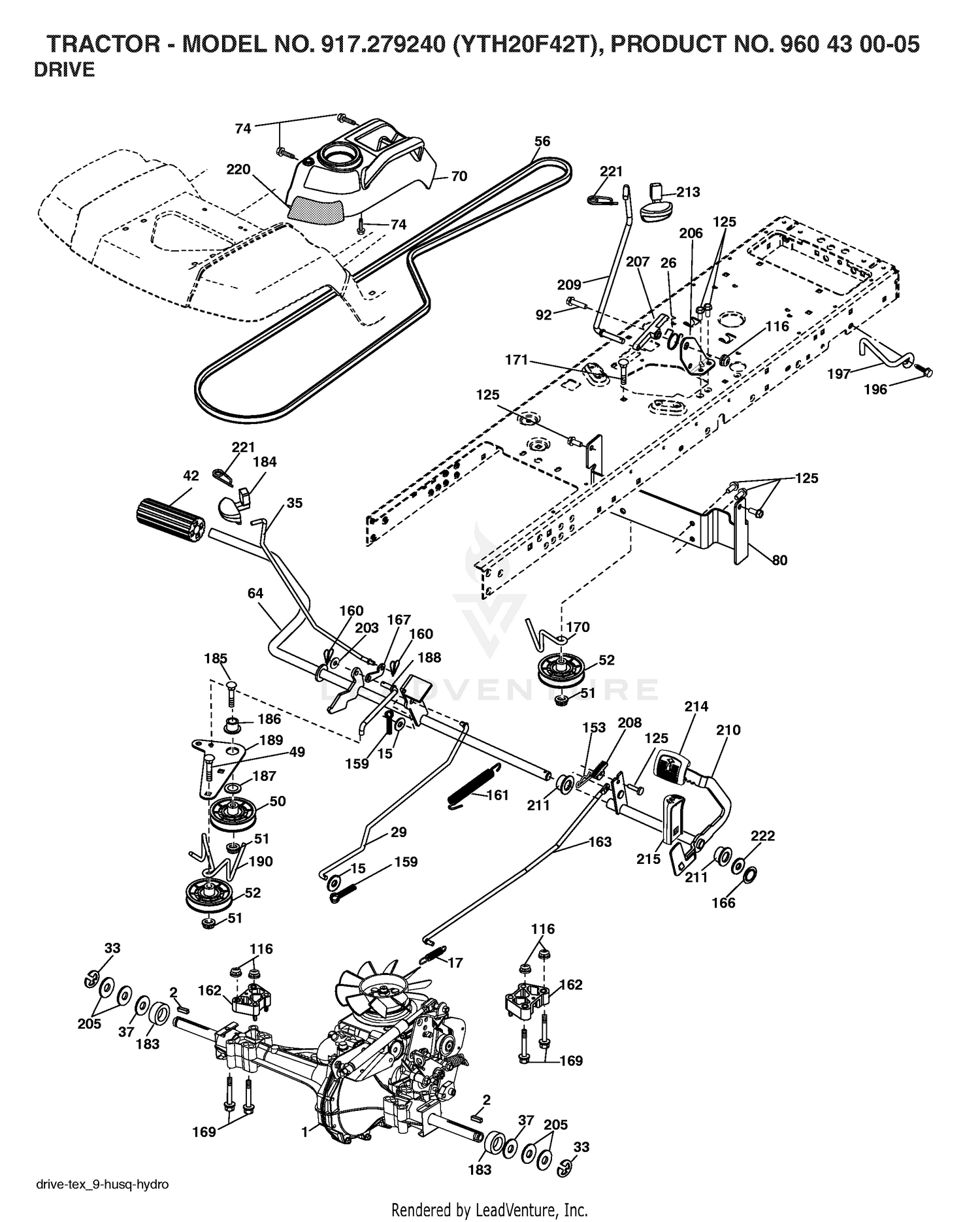

| Ref | Part Number | Description |
|---|
| 1 |
13-7380 |
DISCONTINUED Price: Call Us |
| 2 |
13-7140 |
DISCONTINUED Price: Call Us |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 3 |
32153-1 |
NUT-LOCK, SIDE Price: $0.27 |
| 4 |
3251-1 |
SCREW-PPH Price: $8.48 |
| 5 |
13-7390 |
DISCONTINUED Price: Call Us |
| 6 |
13-6760 |
DECAL-CAUTION Price: $41.90 |
| 7 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 8 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 9 |
32153-4 |
NUT-HEX, SIDE DEFORM Price: $0.75 |
| 10 |
13-2930 |
DISCONTINUED Price: Call Us |
| 11 |
119-6242 |
PIN-HINGE This part replaces 283-39. Price: $27.18 |
| 12 |
3258-37 |
DISCONTINUED Price: Call Us |
| 13 |
93-4003-01 |
TAILGATE ASM This part replaces 13-7180. Price: $3,420.04 |
| 14 |
13-7430 |
DECAL-WARNING Price: $67.40 |
| 15 |
3229-8 |
SCREW-CARR Price: $2.99 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
13-7400 |
DISCONTINUED Price: Call Us |
| 17 |
532197296 |
SPRING.BRAKE.HG3000/3500 Price: $5.99 |
| 17 |
67-7920 |
DECAL This part replaces 13-6870. Price: $96.70 |
| 18 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 19 |
5-2942 |
SHACKLE Price: $16.99 |
| 20 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 21 |
12-8810 |
SPRING-EXTENSION Price: $26.98 |
| 22 |
32122-20 |
DISCONTINUED Price: Call Us |
| 23 |
94-9139-01 |
PANEL-BOTTOM, LH This part replaces 13-7360. Price: $489.00 |
| 24 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 25 |
13-3710 |
WASHER Price: $3.05 |
| 26 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 27 |
325-6 |
SCREW-HH Price: $1.42 |
| 28 |
94-9138-01 |
PANEL-BOTTOM, CENTER This part replaces 13-7370. Price: $244.33 |
| 29 |
13-7350 |
DISCONTINUED Price: Call Us |
| 29 |
532199467 |
ROD.BRAKE.0610.PEDAL.CONTROL Price: $37.99 |
| 30 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 31 |
13-4050 |
DISCONTINUED Price: Call Us |
| 32 |
42-9930 |
DISCONTINUED Price: Call Us |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 35 |
583864502 |
Rods This part replaces 532199591. Price: $6.99 |
| 37 |
532121749 |
WASHER Price: $2.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
532140218 |
V-BELT. Price: $49.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 70 |
532439661 |
CONSOLE.ASM.RH.GT.FC.HUSQ This part replaces 532400530. Price: $79.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 80 |
532400507 |
BRKT.STRP.TRQ.LT.HYD.C Price: $12.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT This part replaces 532195403. Price: $9.99 |
| 162 |
580457401 |
SPACER.TRANSAXLE.1" This part replaces 532195785. Price: $12.99 |
| 163 |
532199000 |
ROD.PEDAL.CONTROL.0510 Price: $27.99 |
| 166 |
532429164 |
NUT.PUSH.625 This part replaces 532197290. Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532196211. Price: $2.99 |
| 169 |
583613301 |
BOLT.HEX.FLNG.5/16-18X3.75 This part replaces 874490560. Price: $4.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $5.99 |
| 171 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532403118. Price: $9.99 |
| 185 |
596435101 |
Bolts This part replaces 872110620. Price: $2.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
532195804 |
LINK.CLUTCH.ANIT-ROTAT Price: $5.99 |
| 203 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH This part replaces 532197867. Price: $4.99 |
| 207 |
587031402 |
Latch This part replaces 532197868. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
596869801 |
Rods This part replaces 532199592. Price: $5.99 |
| 210 |
532197860 |
ROCKER.ASM.PEDAL.CONTR Price: $44.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX This part replaces 532401722. Price: $6.99 |
| 220 |
532198908 |
REFLECTOR.RH.TEX GT Price: $14.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
734118571 |
WASHER This part replaces 819212010. Price: $1.99 |
