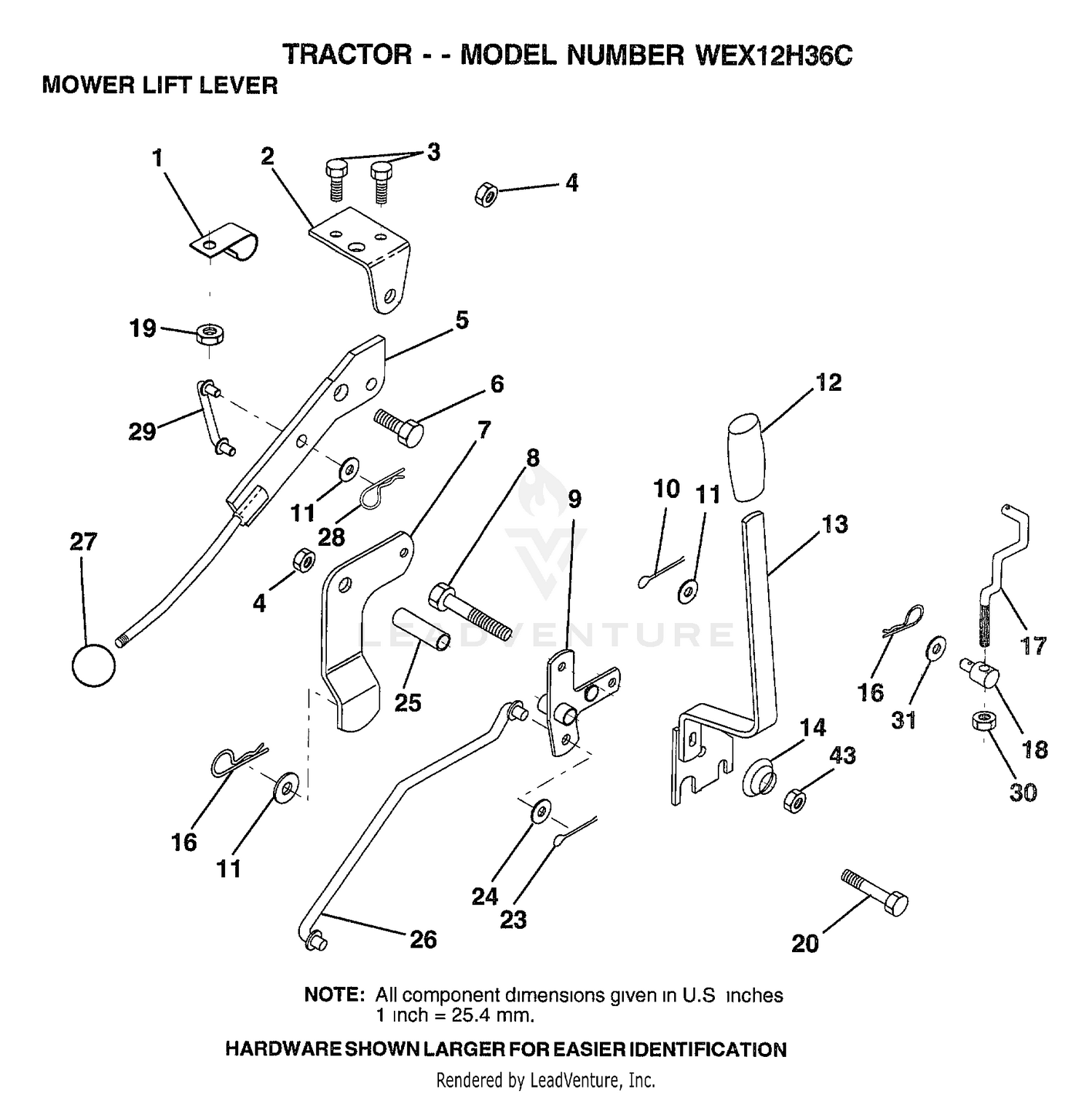

| Ref | Part Number | Description |
|---|
| 2 |
122018X |
BRKT CLUTCH Price: Call Us |
| 3 |
71110408 |
BOLT HXHD FIN Price: Call Us |
| 4 |
73680600 |
SUB= 73690600 Price: Call Us |
| 5 |
145187 |
LEVER.ASM.CLUTCH Price: Call Us |
| 7 |
135371 |
MWR CLUTCH ARM AS Price: Call Us |
| 8 |
74760636 |
BOLT Price: Call Us |
| 10 |
112-7026 |
WHEEL BEARING CASE ASM This part replaces 98-9480. Price: $196.85 |
| 10 |
76020412 |
COTTER PIN Price: Call Us |
| 11 |
19131316 |
WASHER Price: Call Us |
| 12 |
131861 |
SUB= 532131861 Price: Call Us |
| 13 |
139352 |
HANDLE.ASM.LIFT Price: Call Us |
| 14 |
123496X |
SPRING COMPRESSIO Price: Call Us |
| 16 |
4921H |
SPRING.RETAINER Price: Call Us |
| 18 |
142028 |
TRUNION ADJ Price: Call Us |
| 19 |
73680400 |
SUB= 73690400 Price: Call Us |
| 20 |
74760644 |
BOLT Price: Call Us |
| 20 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 23 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 24 |
19171612 |
WASHER GT Price: Call Us |
| 25 |
121933X |
TUBE SPACER Price: Call Us |
| 26 |
141470 |
ROD LIFT MOWER Price: Call Us |
| 27 |
106932X |
KNOB T(3/8 HOLE) Price: Call Us |
| 28 |
4497H |
RETAINER M Price: Call Us |
| 29 |
131655 |
CLUTCH LINK Price: Call Us |
| 30 |
131-6554 |
GASKET-CASE, BEARING This part replaces 98-9634. Price: $7.12 |
| 30 |
73350600 |
NUT Price: Call Us |
| 31 |
19132012 |
WASHER Price: Call Us |
| 40 |
112-7046 |
COVER-CASE, BEARING This part replaces 98-9487. Price: $66.00 |
| 50 |
112-0180 |
SEAL-OIL This part replaces 98-9483. Price: $58.48 |
| 60 |
98-9635 |
GASKET-COVER, BEARING CASE Price: $12.61 |
| 70 |
98-9352 |
BOLT Price: $0.80 |
| 80 |
98-7568 |
BOLT Price: $0.84 |
| 90 |
99-8361 |
CASE-BEARING, MAIN Price: $222.76 |
| 100 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 110 |
98-9485 |
BOLT-CASE, BEARING Price: $22.80 |
| 120 |
99-8360 |
CASE-BEARING, MAIN Price: $103.70 |
