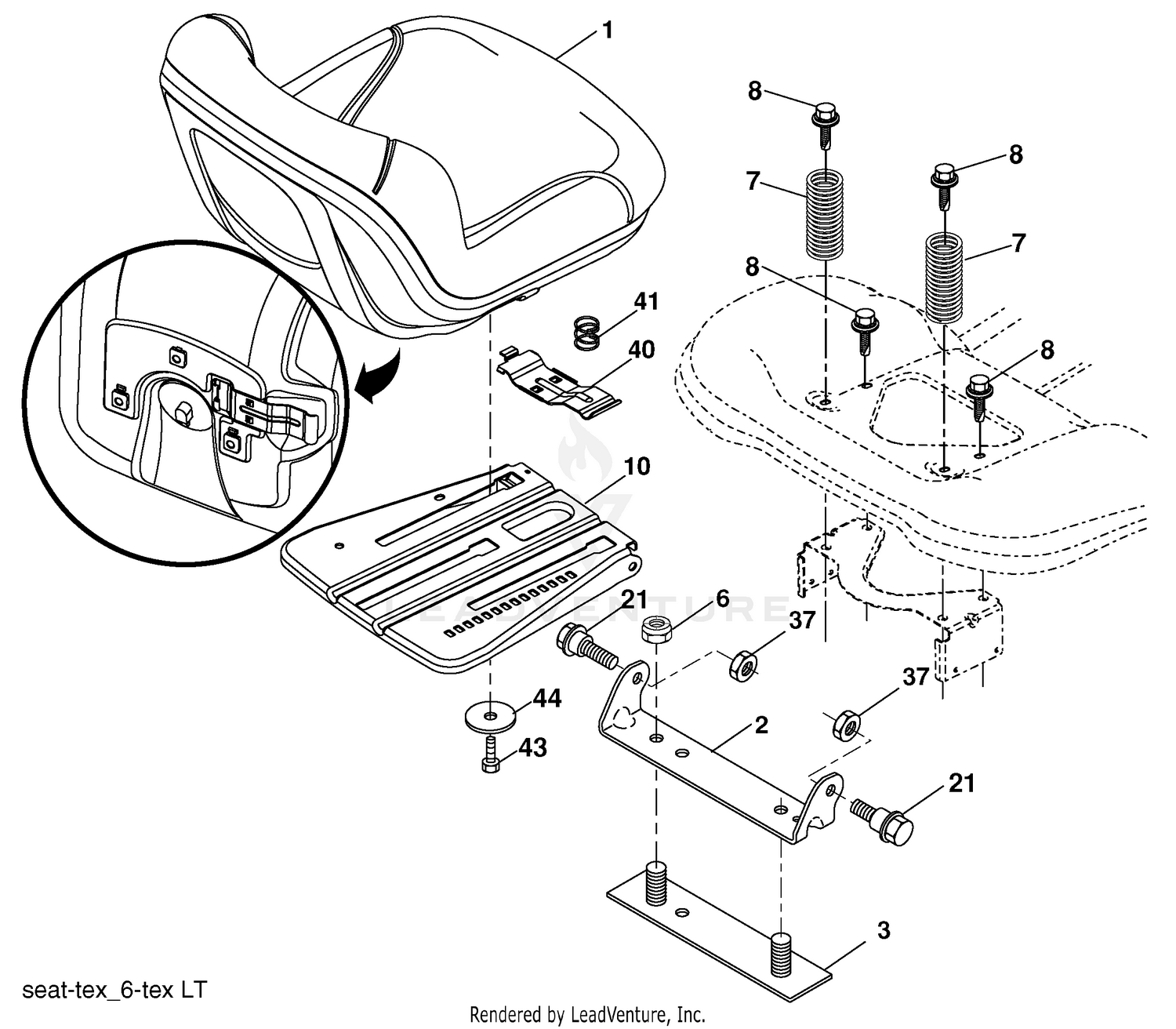

Seat Assembly

Seat Assembly

Parts (25)

RefPart NumberDescription
1 104-4620 SEAT This part replaces 92-1180. Price: $273.15
1 532439819 SEAT.TH130.GREY.HUSQ.TEX This part replaces 532424067. Price: $209.99
2 3230-16 SCREW-CARR Price: $1.79
2 532180166 BRKT.PIVOT.FENDER Price: $11.99
3 3296-29 NUT-LOCK, NI Price: $2.09
3 532140675 STRAP Price: $5.99
4 68-3280-01 SEAT SPRING This part replaces 68-3280. Price: $88.22
5 322-4 SCREW-HH Price: $0.35
6 3253-4 WASHER-LOCK Price: $0.25
6 596322601 Nuts This part replaces 873800600. Price: $2.99
7 3256-2 WASHER-FLAT Price: $0.39
7 587613301 SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99
8 532171877 BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99
8 92-5521 STRAP-TETHER Price: $50.03
9 3256-24 WASHER-FLAT Price: $0.28
10 323-6 SCREW-HH Price: $0.66
10 596768801 KIT.PLATE.SEAT This part replaces 532196977. Price: $49.99
11 3296-39 NUT-LOCK, NI Price: $2.29
12 3256-5 WASHER-FLAT Price: $0.27
13 3253-6 WASHER-LOCK Price: $0.39
21 587907801 BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99
37 596040501 Hardware This part replaces 873800500. Price: $2.99
40 595088102 Handles This part replaces 532197661. Price: $4.99
41 532198200 SPRING.LATCH.SEAT.TEX Price: $3.99
43 874760612 BOLT Price: $3.99
