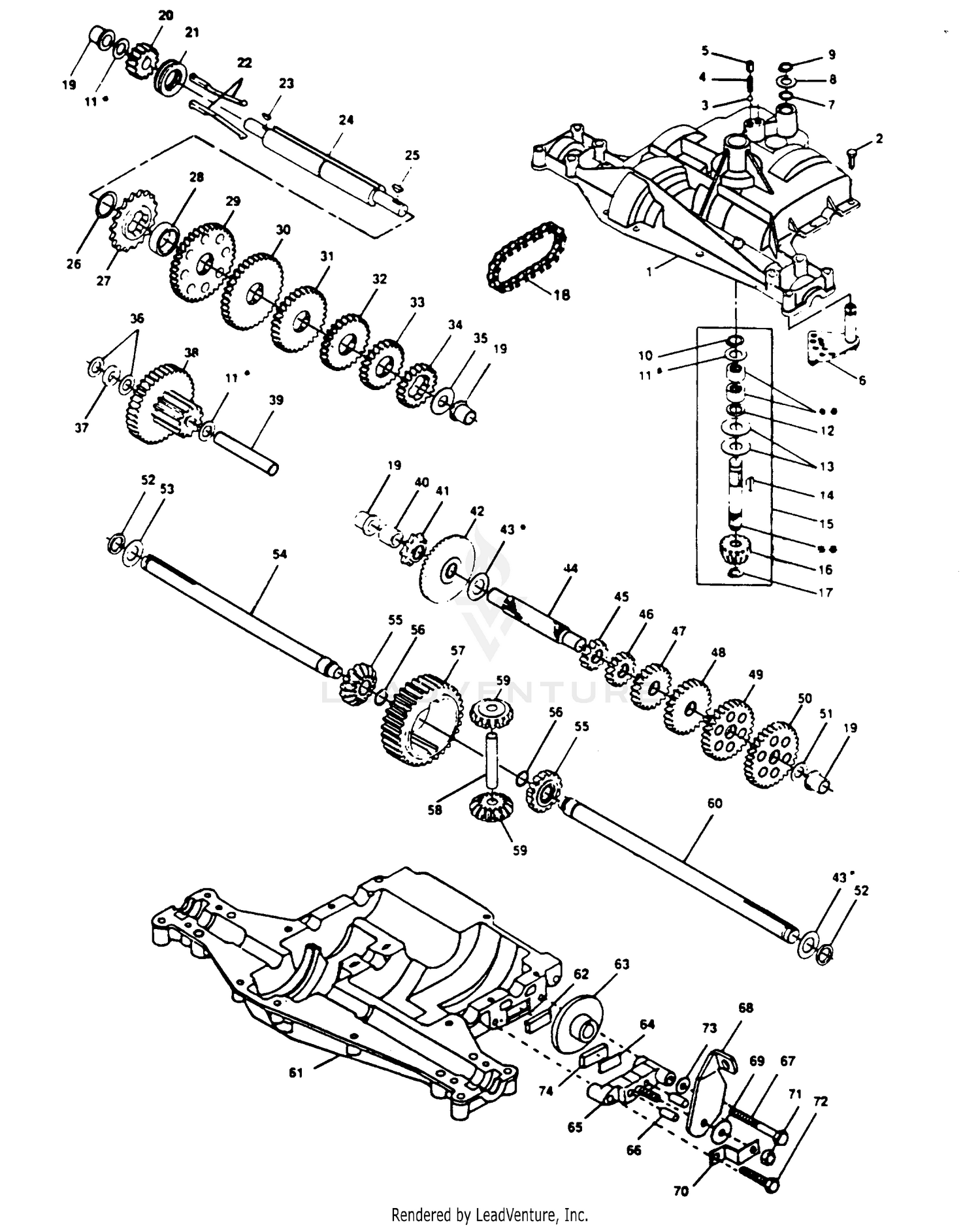

TRANSAXLE FOOTE - MODEL NUMBER 4360-7

TRANSAXLE FOOTE - MODEL NUMBER 4360-7

Parts (89)

RefPart NumberDescription
1 003865 Housing, Upper Price: Call Us
1 104-5269 FAN Price: $287.64
2 001919 Screw, Tapping, 1/4-20 x .734 Lg. Price: Call Us
2 114-3989 FAN CLUTCH ASM This part replaces 93-1430. Price: $498.92
3 001151 Ball, Detent Price: Call Us
3 98-1242 ADAPTER-FAN Price: $147.55
4 003626 Spring, Detent Price: Call Us
4 52-6290 SCREW-HSH Price: $1.09
5 003623 Screw, Set Price: Call Us
5 322-2 SCREW-HH Price: $0.69
6 004336 Ass;y., Shifter Price: Call Us
7 003884 O-Ring Price: Call Us
7 3253-4 WASHER-LOCK Price: $0.25
9 001100 Ring, Retaining Price: Call Us
10 001099 Ring, Retaining Price: Call Us
12 003312 O-Ring Price: Call Us
13 531003876 Washer, Plain, .632 x 1.38 x .046 Price: Call Us
14 530001374 Key, Woodruff, #9 Price: $3.33
15 004134 Ass'y., Kit, Input Shaft Price: Call Us
16 003590 Pinion, Bevel, 14T. Price: Call Us
17 003624 Ring, Retaining Price: Call Us
18 003625 Chain, 24 Pitches Price: Call Us
19 001542 Bearing, Flange Price: Call Us
20 530003773 Gear, Spur, 14T. Price: $3.33
20 98-3824 SWITCH-TEMP Price: $134.61
21 003631 Collar, Clutch Price: Call Us
21 98-3825 SWITCH-TEMP Price: $151.07
22 003828 Key, Clutch Price: Call Us
22 114-5095 ENGINE-KUBOTA DSL This part replaces 104-5259. Price: $11,571.64
23 530001369 Key, Woodruff Price: $3.33
24 003883 Shaft, Intermediate Price: Call Us
25 001375 Key, Woodruff, #61 Price: Call Us
26 003627 Ring, Retaining Price: Call Us
26 3255-8 WASHER-LOCK Price: $0.31
27 003830 Sprocket, 18T. Price: Call Us
27 33014-00 NUT-HEX Price: $0.25
28 003841 Spacer Price: Call Us
29 530003786 Gear, Spur, 37T. Price: $3.33
29 98-3817 SOLENOID KIT Price: $522.93
30 530003785 Gear, Spur, 35T. Price: $3.33
31 003867 Gear, Spur, 30T. Price: Call Us
32 530003783 Gear, Spur, 25T. Price: $3.33
33 003869 Gear, Spur, 22T. Price: Call Us
33 98-1293-03 BRACKET-LINE Price: $27.85
34 003741 Gear, Spur, 19T. Price: Call Us
35 003628 Washer, Plain, .640 x 1.37 x .061 Price: Call Us
35 2412-83 CLAMP-CABLE Price: $9.85
36 001423 Washer, Plain, .632 x 1.00 x .026 Price: Call Us
36 43-5940 WASHER-LOCK, SPRING Price: $0.70
37 003422 Spacer, .630 x 1.00 x .169 Price: Call Us
37 42-9250 BOLT Price: $1.63
38 004286 Ass'y., Gear, Comb., 12T. & 35T. Price: Call Us
38 32105-13 SCREW-HWH Price: $1.59
39 003877 Shaft, Idler Price: Call Us
39 3296-2 NUT-LOCK, NI Price: $1.89
40 003901 Spacer, .635 x.875 x .755 Price: Call Us
41 003645 Sprocket, 9T. Price: Call Us
42 003853 Gear, Bevel, 42T. Price: Call Us
44 003882 Shaft, Drive Price: Call Us
45 003646 Gear, Spur, 12T. Price: Call Us
46 003707 Gear, Spur, 15T. Price: Call Us
47 003866 Gear, Spur, 20T. Price: Call Us
48 003719 Gear, Spur, 25T. Price: Call Us
49 003868 Gear, Spur, 28T. Price: Call Us
50 003683 Gear, Spur, 31T. Price: Call Us
51 001145 Washer, Plain, .632 x 1.00 x .060 Price: Call Us
52 003191 Seal, Felt Price: Call Us
53 003180 Washer, Plain, .758 x 1.25 x .062 Price: Call Us
54 003880 Axle, L.H. Price: Call Us
55 530003780 Gear, Miter, 15T. Price: $3.33
56 003656 Ring, Retaining Price: Call Us
57 003839 Gear, Spur, 32T. Price: Call Us
58 003919 Shaft, Cross Price: Call Us
59 530003781 Gear, Miter, 15T. Price: $3.33
60 003881 Axle, R.H. Price: Call Us
61 003864 Housing, Lower Price: Call Us
62 003920 Puck, Friction Price: Call Us
63 003276 Disc, Brake Price: Call Us
64 003758 Spacer Price: Call Us
65 003916 Jaw, Brake Price: Call Us
66 003843 Pin, Dowel Price: Call Us
67 003915 Screw, Tapping, 5/16-18 x 2 25 Lg. Price: Call Us
68 530003768 Lever, Actuating Price: $1.99
69 530003760 Washer, Plain, ..321 x 1.00 x .055 Price: $3.33
70 003917 Bracket, Anti-Rotation Price: Call Us
71 003847 Nut, Lock, 5/16-24 Price: Call Us
72 003724 Screw, Tapping, 5/16-18 x 1.44 Lg. Price: Call Us
73 530003906 Washer, Plain, .343 x .81 x .059 Price: $3.33
74 003907 Puck, Friction Price: Call Us
