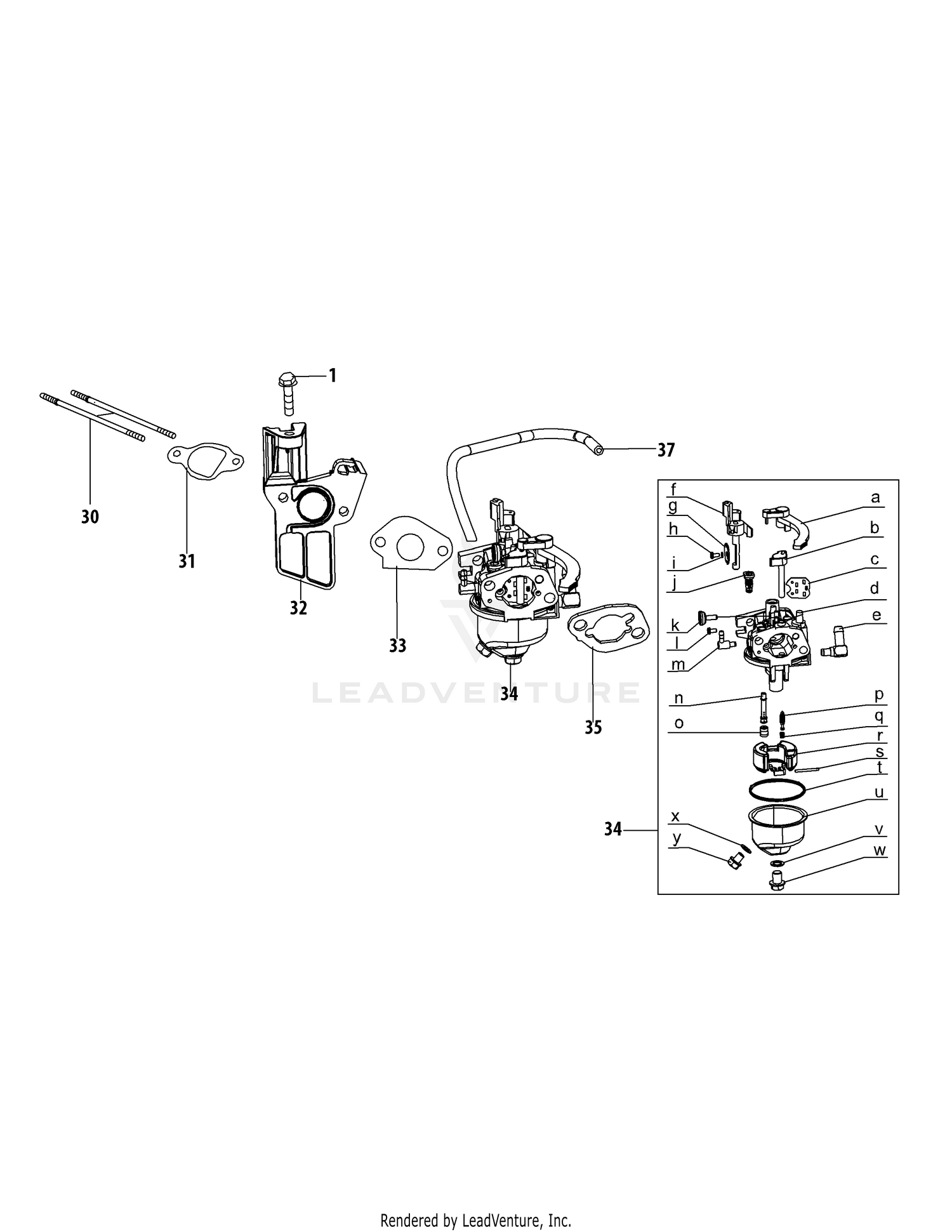

| Ref | Part Number | Description |
|---|
| a |
N/A |
Choke Lever |
| b |
N/A |
Gasket |
| c |
N/A |
Choke Plate |
| d |
N/A |
Carburetor Body |
| e |
N/A |
Inlet Tube Assembly |
| f |
N/A |
Throttle Plate |
| g |
N/A |
Throttle Plate |
| h |
N/A |
Bolt M3×6 |
| i |
N/A |
Washer 3 |
| j |
N/A |
Idle Jet |
| k |
N/A |
Idle Speed Adjusting Screw |
| l |
N/A |
Mixture Screw |
| m |
N/A |
Primer Pipe |
| n |
N/A |
Nozzle Tube |
| o |
N/A |
Main Jet |
| p |
N/A |
Needle Valve |
| q |
N/A |
Needle Valve Spring |
| r |
N/A |
Float |
| s |
N/A |
Float Pin |
| t |
951-11589 |
Fuel Bowl Gasket This part replaces 751-11589. Price: $6.04 |
| u |
908-05000 |
FLOAT BOWL Not Available This part replaces 608-05000. Price: |
| v |
951-11348A |
FUEL BOWL GASKET This part replaces 951-11348. Price: $5.07 |
| w |
710-04945 |
Bolt, Float Bowl Price: $3.66 |
| x |
951-11349A |
FUEL DRAIN PLUG GASKET This part replaces 951-11349. Price: $3.66 |
| 1 |
710-04968 |
Bolt M6×16 Price: $5.77 |
| 30 |
710-05101 |
Stud M6×110 Price: $3.71 |
| 31 |
751P11567B |
CARBURETOR INSULATOR GASKET This part replaces 951-11567. Price: $1.73 |
| 32 |
951-15032 |
Carburetor Insulator Not Available This part replaces 751-15032. Price: |
| 33 |
751P12005B |
CARBURETOR GASKET This part replaces 951-11569A. Price: $4.89 |
| 34 |
951-05288 |
Carburetor This part replaces 651-05288. Price: $99.51 |
| 35 |
951-11571 |
CARBURETOR GASKET PLATE Price: $4.83 |
| 37 |
951-14983 |
Fuel Hose 3.2×6.5×240 Price: $7.20 |
