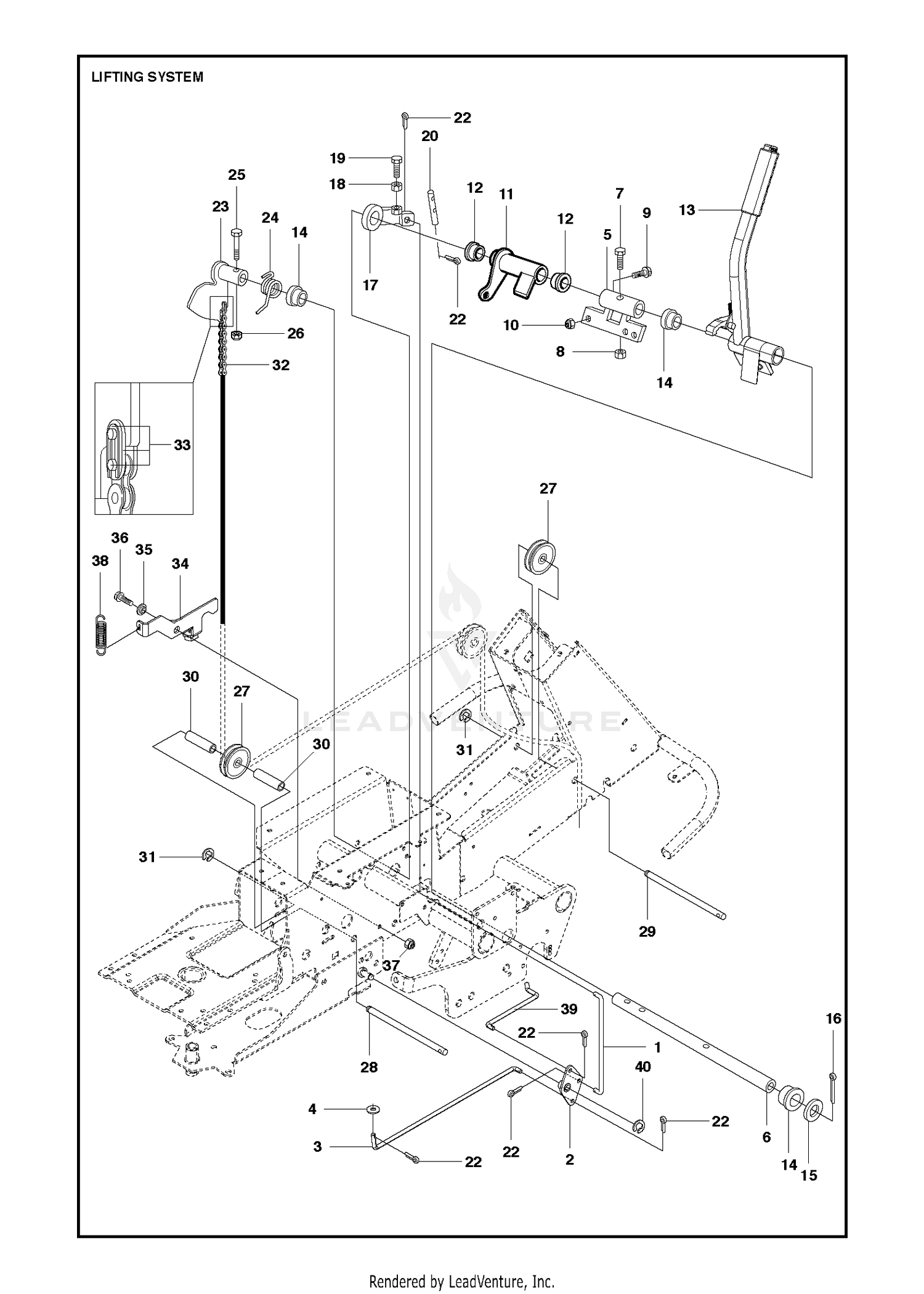

MOWER LIFT / DECK LIFT
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-4010-03 | FRAME Price: $4,870.83 |
| 1 | 506665901 | ROD Price: $14.99 |
| 2 | 161-1780 | BUMPER ASM This part replaces 120-8919-03. Price: $324.35 |
| 2 | 504636701 | NEEDS DESCRIPTION Price: Call Us |
| 3 | 115-0282 | PROXIMITY SENSOR ASM Price: $155.22 |
| 3 | 535444703 | NEEDS DESCRIPTION Price: Call Us |
| 4 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 4 | 734116441 | SPACER Price: $3.99 |
| 5 | 325-5 | SCREW-HH Price: $1.20 |
| 5 | 506951101 | Price: $66.56 |
| 6 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 6 | 506968001 | SHAFT Price: $69.99 |
| 7 | 32128-23 | NUT-HF Price: $1.51 |
| 7 | 725254451 | NEEDS DESCRIPTION Price: Call Us |
| 8 | 105-8278 | DECAL Price: $9.67 |
| 8 | 732252201 | Nut Price: $2.65 |
| 9 | 3234-1 | SCREW-HHF Price: $1.62 |
| 9 | 725245371 | SCREW This part replaces 725245351. Price: $4.99 |
| 10 | 2412-138 | R-CLAMP Price: $1.36 |
| 10 | 731231801 | NUT Price: $3.99 |
| 11 | 240-7 | GROMMET-RUBBER Price: $16.51 |
| 11 | 506951401 | ARM Price: $109.99 |
| 12 | 56-7971 | CLAMP-TUBE Price: $17.90 |
| 12 | 584871301 | BEARING FLANGE This part replaces 506556501. Price: $4.99 |
| 13 | 3230-5 | BOLT-CAR Price: $0.54 |
| 13 | 504907901 | LIFTING LEVER ASSY Price: $54.99 |
| 14 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 14 | 584871301 | BEARING FLANGE This part replaces 506556501. Price: $4.99 |
| 15 | 121-1508-0P | BRACKET-BULKHEAD This part replaces 121-1508-03. Price: $24.95 |
| 15 | 506515701 | WASHER Price: $3.05 |
| 16 | 323-6 | SCREW-HH Price: $0.66 |
| 16 | 721620101 | SPLIT PIN Price: $1.99 |
| 17 | 322-10 | SCREW-HH Price: $0.70 |
| 17 | 506784301 | LEVER CLUTCH Price: $29.99 |
| 18 | 69-9760 | COVERPLATE Price: $5.38 |
| 18 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 19 | 56-7976 | CLAMP-TUBE Price: $2.44 |
| 19 | 725249751 | SCREW Price: $4.99 |
| 20 | 240-2 | GROMMET-RUBBER Price: $20.20 |
| 20 | 525406601 | PIN Price: $7.99 |
| 21 | 121-1481-0P | PLATE-MOUNT, LH BULKHEAD This part replaces 121-1481-03. Price: $33.56 |
| 22 | 2412-147 | CLAMP-R Price: $2.51 |
| 22 | 721618301 | Split Pin Price: $1.99 |
| 23 | 506940501 | ARM Price: $159.99 |
| 24 | 506817001 | SPRING Price: $6.99 |
| 25 | 725254471 | Price: Call Us |
| 26 | 732252201 | Nut Price: $2.65 |
| 27 | 506905601 | PULLEY Price: $14.99 |
| 28 | 506905701 | SHAFT Price: $18.26 |
| 29 | 506905702 | SHAFT Price: $19.99 |
| 30 | 506905801 | SPACER Price: $11.99 |
| 31 | 735311820 | Lock Ring Price: $1.99 |
| 32 | 506554608 | CHAIN Price: $54.13 |
| 33 | 506554701 | LINK Price: $4.99 |
| 34 | 504628702 | NEEDS DESCRIPTION Price: Call Us |
| 35 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 36 | 506597401 | BOLT This part replaces 506570105. Price: $5.99 |
| 37 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 39 | 504636801 | NEEDS DESCRIPTION Price: Call Us |
| 40 | 735311420 | RETAINING RING Price: $2.99 |
