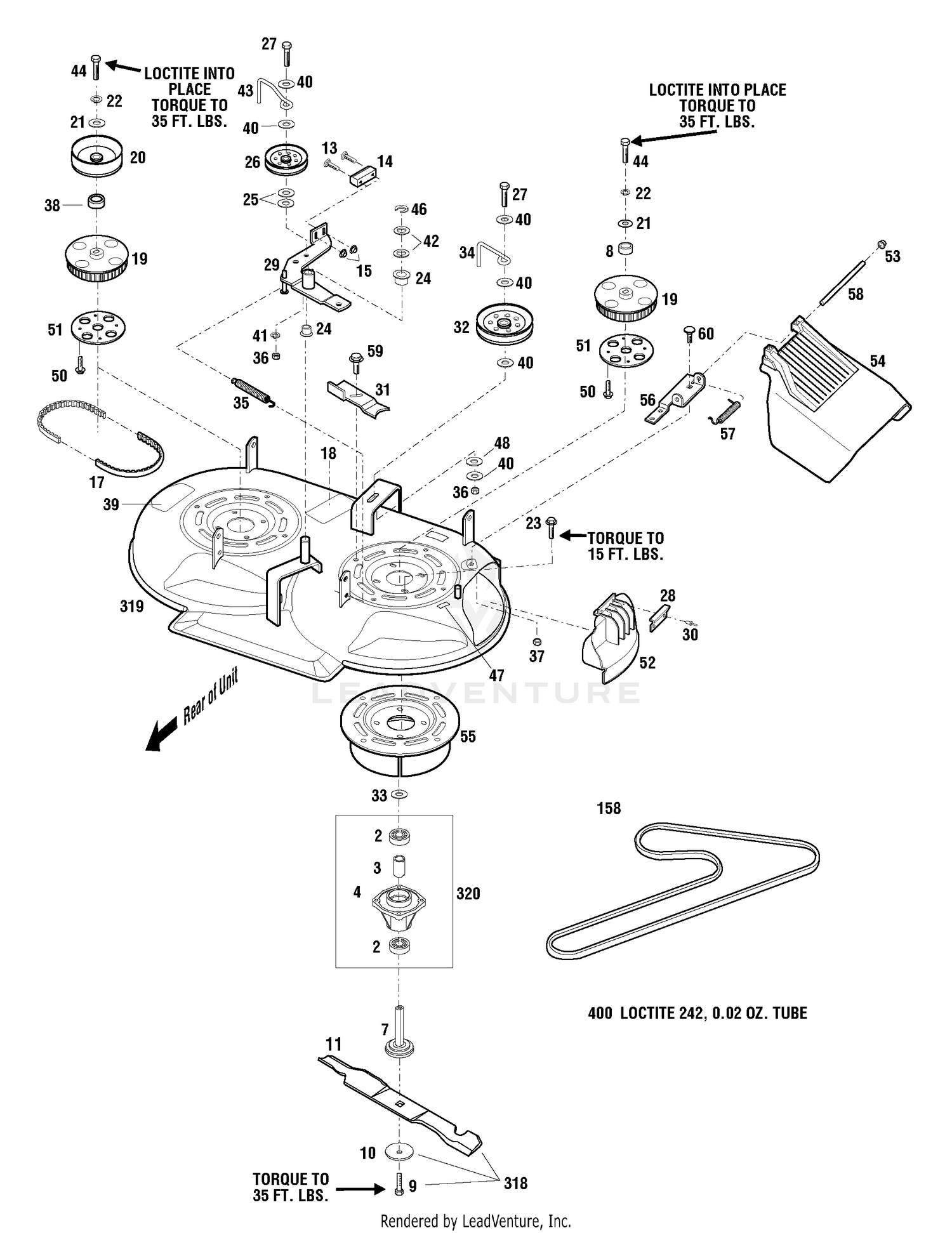

| Ref | Part Number | Description |
|---|
| 2 |
1185574P |
Ball Bearing This part replaces 1185574. Price: $32.02 |
| 3 |
1746869 |
Spacer Price: $17.91 |
| 4 |
1769048099 |
Mower Spindle This part replaces 1915280. Price: $163.09 |
| 7 |
911-04020 |
SPINDLE SHAFT This part replaces 711-04020. Price: $73.34 |
| 8 |
1918848 |
Spacer (For right-hand spindle ass'y) Price: $14.68 |
| 9 |
1765196 |
Screw, 7/16-14 x 1 Price: $3.71 |
| 10 |
1765197 |
Belleville Washer Price: $24.18 |
| 11 |
1910917001 |
BLADE-17.87" MULCH GW'S 33" WCM This part replaces 1910917. Price: $31.52 |
| 13 |
1771081 |
Flat Head Screw, #10-24 x 1-1/4 Price: $3.05 |
| 14 |
1771083 |
PAD BRAKE Not Available Price: |
| 15 |
712-0272 |
Sems Nut, #10-24 Price: $3.58 |
| 17 |
1773600 |
Toothed Drive Belt Price: $44.89 |
| 18 |
777S00004 |
LABEL-CAUTION Not Available Price: |
| 19 |
913-04050 |
Cogged Pulley, 56T This part replaces 1774220. Price: $143.14 |
| 20 |
1918625 |
DRIVE PULLEY Not Available Price: |
| 21 |
736-0322 |
Flat Washer, 7/16 Price: $8.42 |
| 22 |
736-0171 |
Lock Washer, 7/16 Price: $3.86 |
| 23 |
710-0602 |
Flange Lock Screw, 5/16-18 x 1 Price: $4.05 |
| 24 |
1764140 |
Flange Bushing Price: $4.40 |
| 25 |
1701055 |
Flat Washer Not Available Price: |
| 26 |
1918626 |
Idler Pulley Price: $30.99 |
| 27 |
1100062 |
SCREW-HH 3/8-16X2. Not Available Price: |
| 28 |
787-01019 |
ADAPTER BRACKET Not Available Price: |
| 29 |
687-02008 |
BRACKET ARM ASSEMBLY Not Available Price: |
| 31 |
1911021001 |
BRACKET-BELT TENSION Not Available This part replaces 1911021. Price: |
| 32 |
1749911 |
PULLEY Not Available Price: |
| 33 |
1766787 |
Special Thrust Washer Not Available Price: |
| 34 |
1720717 |
BELT GUIDE Not Available Price: |
| 35 |
1756595 |
Extension Spring Price: $16.27 |
| 36 |
712-3017 |
HEX NUT 3/8-16 GR5 Price: $3.90 |
| 37 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 38 |
750-05218 |
Spacer, .766 ID x 1.25 OD x .415 This part replaces 1723996. Price: $6.28 |
| 39 |
777S30118 |
LABEL-DANGER Not Available Price: |
| 40 |
736-0262 |
Flat Washer, 3/8 x 3/4 Price: $3.66 |
| 41 |
736-0169 |
Lock Washer, 3/8 Price: $3.33 |
| 42 |
1701447 |
Flat Washer Price: $3.93 |
| 43 |
1764135 |
BELT GUIDE Not Available Price: |
| 44 |
710-04070 |
Hex Screw, 7/16-14 x 1.25 This part replaces 1769397. Price: $3.49 |
| 46 |
716-0101 |
Retaining Ring Price: $3.37 |
| 47 |
777S00008 |
LABEL-DANGER GUARD Not Available Price: |
| 48 |
1185715 |
WASHER-LK Not Available Price: |
| 50 |
710-04065 |
Triplask Screw, 1/4-20 x 5/8 Price: $5.48 |
| 51 |
1771922001 |
PLATE-SPROCKET COVER Not Available This part replaces 1771922. Price: |
| 52 |
631-04252 |
Mulch Cover This part replaces 631-04011. Price: $29.62 |
| 53 |
726-0135 |
PUSH NUT This part replaces 1727342. Price: $5.94 |
| 54 |
931-04244 |
Chute Deflector Assembly This part replaces 1910931. Price: $61.70 |
| 55 |
687-02004 |
MOUNT ASSEMBLY Not Available Price: |
| 56 |
1910951001 |
BRACKET-CHUTE HING NLAUD Not Available Price: |
| 57 |
1910971 |
Spring, Discharge Chute Price: $10.57 |
| 58 |
1910972 |
Pin, Discharge Chute Price: $11.80 |
| 59 |
710-0650 |
Screw, Thread-Forming Price: $3.71 |
| 60 |
710-0451 |
Bolt, Carriage, 3/8-18 x 3/4 Price: $3.53 |
| 158 |
1769767 |
V-Belt Price: $41.55 |
| 319 |
1910906001 |
MOWER DECK WELDMENT Not Available Price: |
| 320 |
1769048099 |
Mower Spindle This part replaces 1769048. Price: $163.09 |
