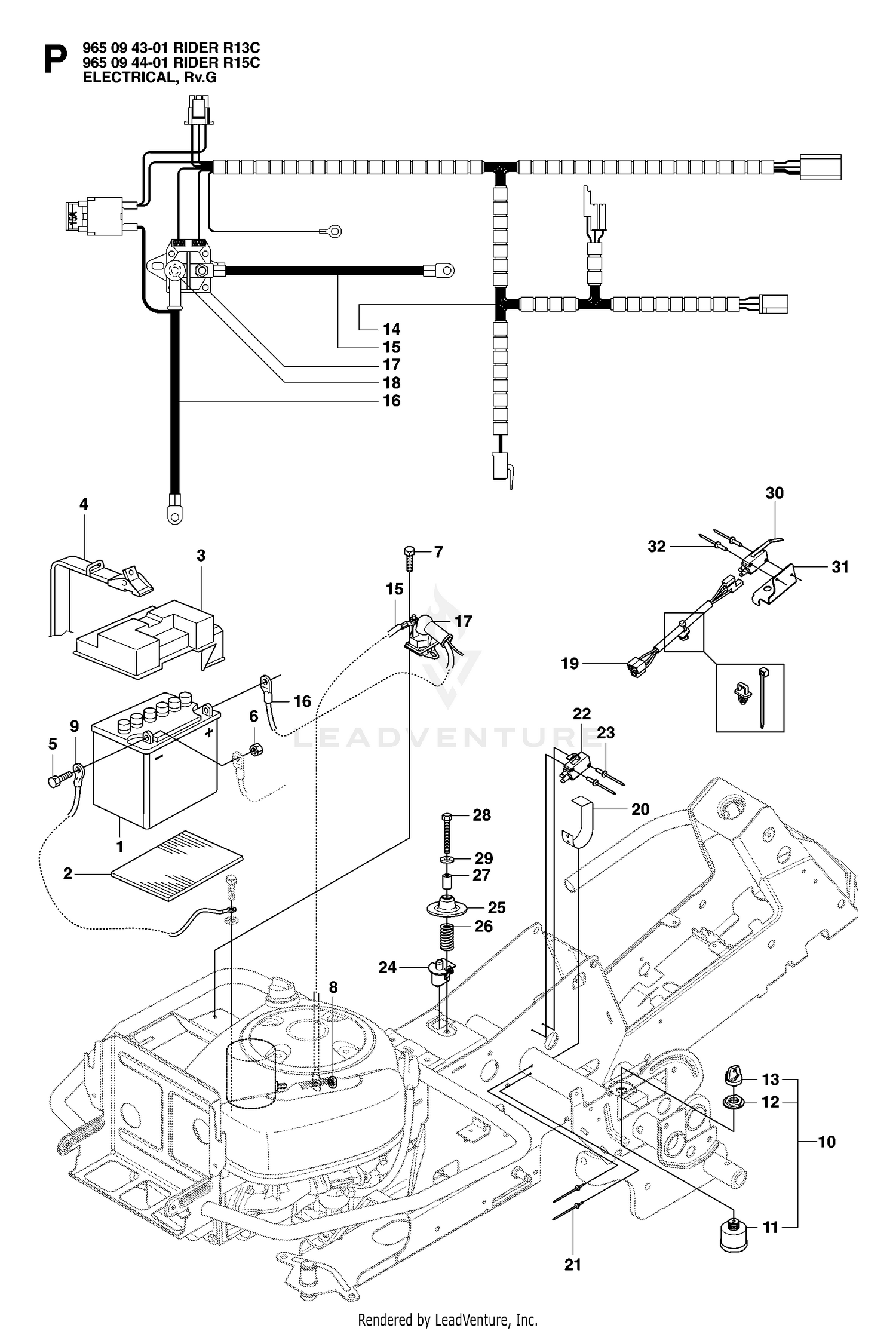

ELECTRICAL
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 531031071 | BATTERY This part replaces 506788801. Price: $139.99 |
| 2 | 535441101 | MAT Price: $8.55 |
| 3 | 506809901 | Cover Price: $18.17 |
| 4 | 506836802 | BELT Price: $9.99 |
| 6 | 731231601 | NUT Price: $2.99 |
| 7 | 725236461 | SCREW Price: $2.99 |
| 8 | 506899801 | NUT Price: $2.99 |
| 9 | 544967601 | CABLE Price: $19.99 |
| 10 | 107-7848 | UPPER GASKET KIT Price: $323.93 |
| 10 | 544442101 | IGNITION SWITCH Price: $24.99 |
| 11 | 544442201 | IGNITION SWITCH Price: $17.99 |
| 12 | 544442301 | NUT Price: $2.99 |
| 13 | 544442401 | IGNITION KEY Price: $6.99 |
| 14 | 544926301 | WIRING Price: $49.99 |
| 15 | 544928601 | CABLE Price: $9.99 |
| 16 | 544926101 | RP CABLE Price: $22.99 |
| 17 | 544439801 | RELAY Price: $17.99 |
| 18 | 506899801 | NUT Price: $2.99 |
| 19 | 544892201 | WIRING Price: $22.99 |
| 20 | 108-6573 | GASKET-HEAD, CYLINDER Price: $208.72 |
| 20 | 506909301 | SPRING Price: $6.99 |
| 21 | 722783902 | Rivet Price: $1.99 |
| 22 | 574316001 | SWITCH This part replaces 535469101. Price: $11.99 |
| 23 | 544440701 | RIVET Price: $2.99 |
| 24 | 506909601 | SWITCH Price: $14.99 |
| 25 | 506909701 | WASHER Price: $12.99 |
| 26 | 544441201 | SPRING Price: $4.99 |
| 27 | 506909902 | SPACER TUBE Price: $3.99 |
| 28 | 725246351 | SCREW This part replaces 725246051. Price: $4.99 |
| 29 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 30 | 574316101 | MICRO SWITCH This part replaces 544415501. Price: $11.99 |
| 30 | 98-9615 | GASKET-COVER, HEAD Price: $20.34 |
| 31 | 544415701 | BRACKET Price: $4.99 |
| 32 | 544440701 | RIVET Price: $2.99 |
| 40 | 98-9609 | GASKET-MANIFOLD, INLET Price: $26.16 |
| 50 | 99-8343 | GASKET-MUFFLER Price: $14.99 |
| 60 | 99-8327 | GASKET-MANIFOLD, EXHAUST Price: $19.14 |
| 70 | 98-9638 | GASKET-FLANGE, WATER Price: $3.74 |
| 80 | 105-3748 | GASKET-THERMOSTAT Price: $4.31 |
| 90 | 99-3446 | O-RING Price: $7.11 |
| 100 | 98-9454 | GASKET Price: $1.43 |
