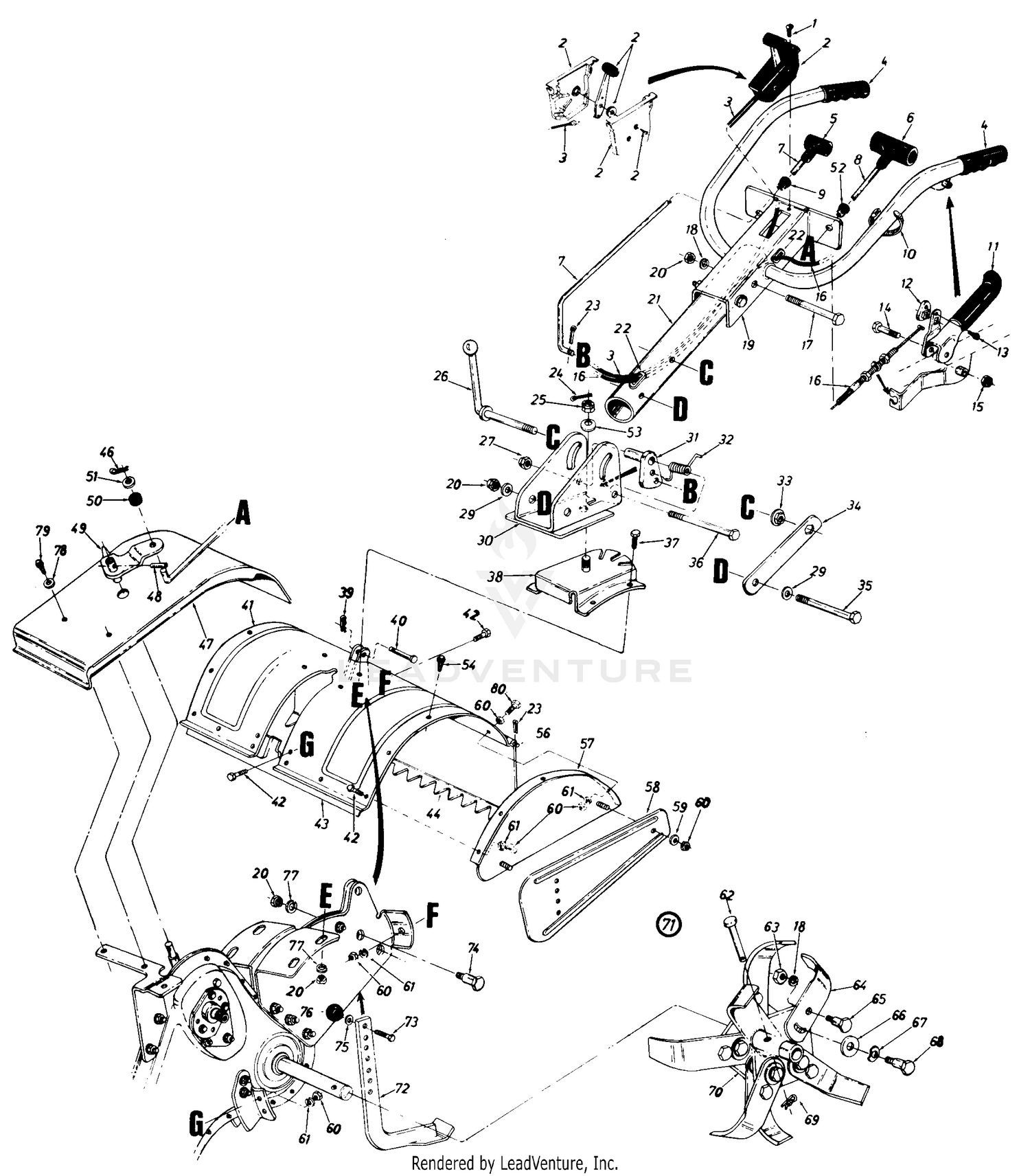

| Ref | Part Number | Description |
|---|
| 1 |
710-0779A |
Truss Mach. AB-Tap. Scr. #10 x .50" Lg. Price: $3.85 |
| 2 |
831-0823A |
Throttle Control Box Ass'y. Price: $30.59 |
| 3 |
946-0513B |
THROTTLE CABLE 50" This part replaces 746-0513. Price: $18.29 |
| 4 |
720-04083 |
Grip This part replaces 720-0180. Price: $12.95 |
| 5 |
720-0210A |
Small "T" Knob Price: $13.38 |
| 6 |
720-0209 |
Large"T" Knob Price: $18.88 |
| 7 |
747-0666 |
CLUTCH ROD Not Available Price: |
| 8 |
747-0664 |
Control Rod 37" Lg. Price: $20.47 |
| 9 |
735-0228 |
BUSHING Not Available Price: |
| 10 |
725-0157 |
Cable Tie-Self Clinching Price: $3.46 |
| 11 |
684-04399A-0637 |
CLUTCH LEVER ASSEMBLY (POWDER BLACK) This part replaces 784-0202B. Price: $29.83 |
| 12 |
946-0605 |
Barrel Cable Hold Down This part replaces 746-0605. Price: $3.94 |
| 13 |
710-0919 |
Hex B-Tap Scr. #10 x .44" Lg. Price: $3.95 |
| 14 |
710-3144 |
Hex Bolt 3/8-16 x 2" Lg. (Gr. 5) This part replaces 710-0427. Price: $4.02 |
| 15 |
712-0266A |
JAM LOCK NUT This part replaces 712-0266. Price: $3.43 |
| 16 |
946-0612 |
Clutch Control Cable 53" Lg. This part replaces 746-0612. Price: $62.93 |
| 17 |
710-0194 |
HEX SCREW 3/8-16 x 3.00 GR2 Not Available Price: |
| 18 |
736-0217 |
L-Wash. 3/8" I.D. H.D. Price: $3.86 |
| 19 |
784-0185A |
Handle Ass'y. Price: Call Us |
| 20 |
712-0798 |
Hex Nut 3/8-16 Thd. Price: $3.86 |
| 21 |
784-0189 |
HANDLE ASSEMBLY Not Available Price: |
| 22 |
735-0226 |
Rubber Grommet .66" I.D. Price: $9.09 |
| 23 |
714-0507 |
Cotter Pin 3/32" Dia. x .75" Lg. Price: $3.93 |
| 24 |
914-3021 |
COTTER PIN Not Available This part replaces 714-3021. Price: |
| 25 |
712-0386A |
Hex Slotted Nut 5/8-18 Thd. Price: $6.99 |
| 26 |
784-0190 |
Handle Adj. Crank Price: $21.49 |
| 27 |
712-0375 |
Hex Cent. L-Nut 3/8-16 Thd. Price: $4.02 |
| 29 |
736-0105 |
Bell-Wash. .4" I.D. x .87" O.D. Price: $3.96 |
| 30 |
684-0263A-0637 |
PIVOT BRACKET ASSEMBLY (POWDER BLACK) Not Available This part replaces 784-0182. Price: |
| 31 |
784-0183 |
CRANK ASSEMBLY Not Available Price: |
| 33 |
712-0379 |
Hex Flange Nut 3/8-24 Thd. Price: $4.02 |
| 34 |
784-0191 |
Bracket Hex Nut Retainer Price: $6.84 |
| 35 |
710-3130 |
Hex Bolt 3/8-16 x 3.25" Lg. (Grade 8) This part replaces 710-0644. Price: $8.85 |
| 36 |
710-0521 |
Hex Bolt 3/8-16 x 3.00" Lg. 0 0 Grade 8 Price: $4.54 |
| 37 |
710-0216 |
Hex Bolt 3/8-16 x .75" Lg. Price: $3.93 |
| 38 |
686-0071 |
POSITIONER BRACKET ASSEMBLY Not Available This part replaces 784-0181A. Price: |
| 39 |
714-0145 |
Intern. Cotter Pin Price: $4.42 |
| 40 |
711-0415 |
Clevis Pin 375" Dia. Price: $4.04 |
| 41 |
784-0156 |
SHIELD-TIN Not Available Price: |
| 42 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 43 |
784-0210 |
BRACKET-REINF Not Available Price: |
| 44 |
786-0113 |
Rear Tine Shield This part replaces 14979. Price: $60.57 |
| 46 |
714-0104 |
Intern. Cotter Pin 5/16" Dia. Price: $3.90 |
| 47 |
784-0208C |
SHIFT COVER Not Available This part replaces 784-0208A. Price: |
| 48 |
715-0120 |
Spring Roll Pin 3/16" Dia. Price: $9.14 |
| 49 |
784-0173 |
CRANK ASSEMBLY-SHIFT Not Available Price: |
| 50 |
735-0127 |
Rubber Washer .33" I.D. Price: $5.94 |
| 51 |
736-0133 |
Fl-Wash. .4" I.D. x 1.25" O.D. Price: $4.67 |
| 52 |
735-0227 |
BUSHING Not Available Price: |
| 53 |
736-0317 |
Bell-Wash. .63" I.D. x 1.25" Price: $6.99 |
| 54 |
710-0607 |
Hex Wash. Tap Scr. Price: $6.06 |
| 56 |
747-0432 |
Tiller Flap Rod Price: $12.08 |
| 57 |
984-0179A-0637 |
COVER ASSEMBLY Not Available This part replaces 784-0179. Price: |
| 59 |
736-0242 |
Bell-Wash. .345" I.D. x .88" Price: $3.75 |
| 60 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 61 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 62 |
711-0415 |
Clevis Pin .375" Dia. Price: $4.04 |
| 63 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 64 |
742-0305A-0637 |
ARTICULATING TINE This part replaces 742-0305. Price: $19.19 |
| 65 |
938-0689 |
SHOULDER SCREW This part replaces 738-0689. Price: $7.87 |
| 66 |
736-0208 |
Fl-Wash. .51" I.D. x 1.50" Price: $4.02 |
| 67 |
736-0255 |
Bell-Wash. .515" I.D. x 1.14" Price: $4.02 |
| 68 |
938-0688 |
SHOULDER SCREW This part replaces 738-0688. Price: $9.14 |
| 69 |
714-0149B |
Intern. Cotter Pin Price: $3.95 |
| 70 |
784-0160-0637 |
TINE ADAPTER ASSEMBLY This part replaces 784-0160. Price: $101.23 |
| 71 |
984-0205A-0637 |
TINE ASSEMBLY This part replaces 784-0205. Price: $189.32 |
| 72 |
786-0120-0637 |
Depth Bar This part replaces 14992. Price: $58.29 |
| 73 |
710-0216 |
Hex Bolt 3/8-16 x .75" Lg. Price: $3.93 |
| 74 |
938-0148 |
Shoulder Screw, .50 x .66 This part replaces 738-0148. Price: $14.70 |
| 75 |
936-0117 |
Fl-Wash. This part replaces 736-0117. Price: $6.20 |
| 76 |
920-0232 |
Knob This part replaces 720-0165. Price: $9.11 |
| 77 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 78 |
736-0463 |
Fl-Wash. .281" I.D. x .62" Price: $3.91 |
| 79 |
710-0599 |
Hex Wash. Self-Tap Scr. 1/4-20 x .50" Lg. Price: $3.86 |
