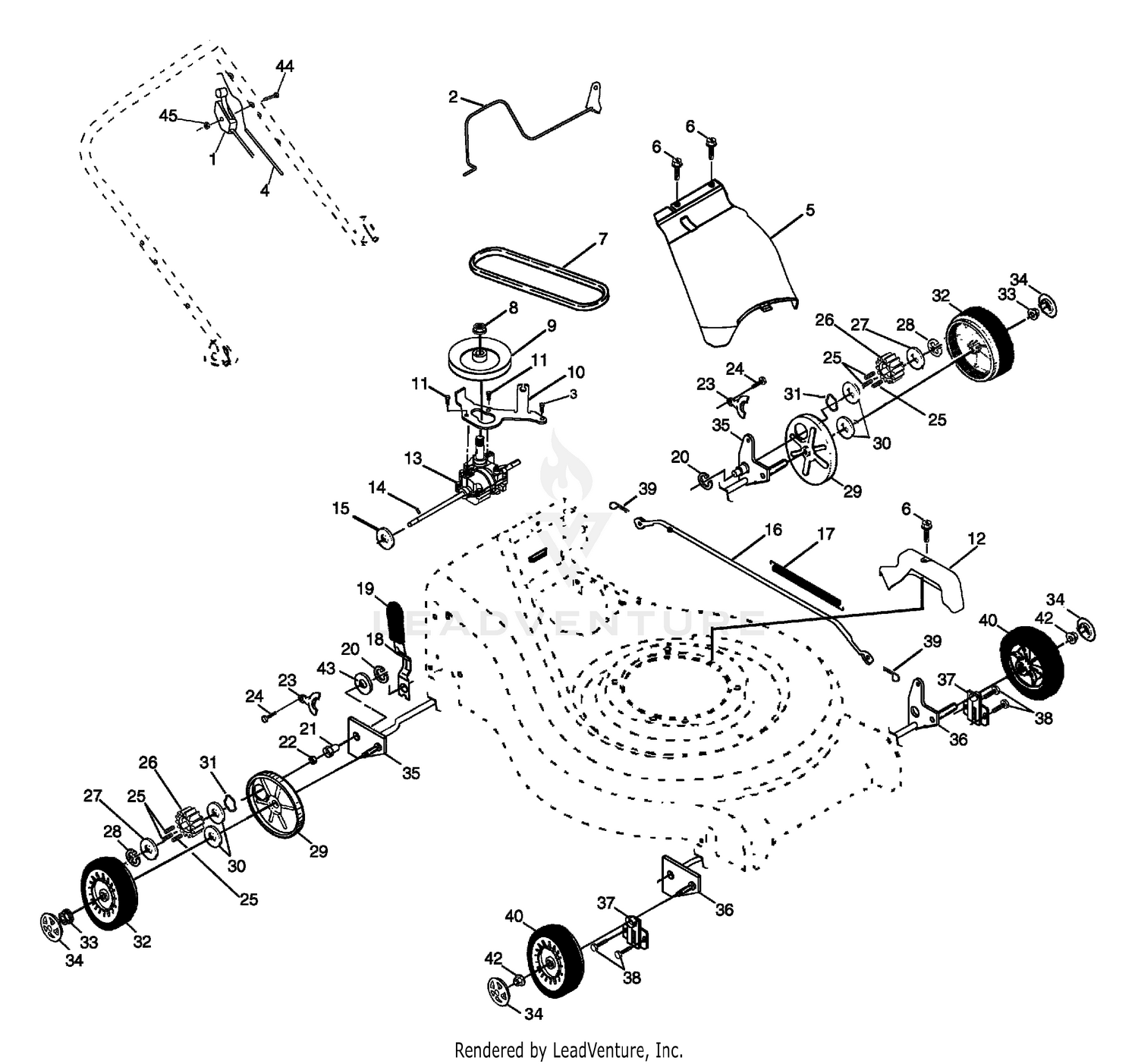

| Ref | Part Number | Description |
|---|
| 1 |
532170960 |
CONTROL.DRIVE.6.SPEED.B&S.BLK. Price: $44.99 |
| 2 |
532176593 |
BAIL CONTROL DRIVE Price: $22.99 |
| 3 |
532054583 |
SCREW Price: $4.99 |
| 4 |
532179049 |
CABLE.DRIVE.MULTI.SPEED.RWGD. Price: $20.99 |
| 5 |
532400783 |
COVER.DRIVE.21.RWGD.MO This part replaces 532161537. Price: $9.99 |
| 6 |
532750634 |
SCREW Price: $2.99 |
| 7 |
532166060 |
V-BELT Price: $29.99 |
| 8 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532132010. Price: $3.99 |
| 9 |
532166049 |
PULLEY DRIVEN Price: $8.99 |
| 10 |
532166021 |
BELT KEEPER BRACKET This part replaces 532177654. Price: $3.99 |
| 11 |
817541011 |
Screw Hex Wash Head 10-24 X .668 Price: $9.47 |
| 12 |
532166189 |
PIVOT ROD COVER Price: $3.99 |
| 13 |
532166388 |
TRANSMISSION ASM. Price: $93.99 |
| 14 |
532145354 |
PIN.SPRING.THRUST Price: $3.99 |
| 15 |
532057079 |
THRUST WASHER Price: $1.99 |
| 16 |
532414284 |
KIT.ROD.CONNECTING.REPL.161584 This part replaces 532161584. Price: $32.99 |
| 17 |
532409616 |
SPRING EXTENSION This part replaces 532161602. Price: $5.99 |
| 18 |
532160477 |
SPRING, SELECTOR This part replaces 532164554. Price: $3.99 |
| 19 |
532189808 |
KNOB.S/P.RWGD.EXT.ERGO.GREY This part replaces 532161961. Price: $2.99 |
| 20 |
812000022 |
E-RING Price: $3.99 |
| 21 |
532169920 |
BEARING SUPPORT.ASM This part replaces 532163365. Price: $14.99 |
| 22 |
532169911 |
BEARING, BALL Price: $11.99 |
| 23 |
532161118 |
RETAINER DRIVE ASM. STMP. This part replaces 532164555. Price: $3.99 |
| 24 |
532057808 |
SCREW Price: $1.99 |
| 25 |
532170011 |
PAWL.DRIVE.ETCHED Price: $3.99 |
| 26 |
532166450 |
PINION.DRIVE.WALK Price: $7.99 |
| 27 |
596040101 |
Washers This part replaces 532052160. Price: $2.99 |
| 28 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 29 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532088080. Price: $5.99 |
| 30 |
532067725 |
WASHER FLUT Price: $5.99 |
| 31 |
532428450 |
KIT.O-RING/WASHER This part replaces 532057143. Price: $3.99 |
| 32 |
532193139 |
KIT.WHL.9X2.RAD.BLK(SERV ONLY) This part replaces 532176592. Price: $54.99 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 34 |
532077400 |
CAP.HUB.BLACK.WALK Price: $4.99 |
| 35 |
532160785 |
SHAFT.ASM.REAR.TORQUE. This part replaces 532164552. Price: $29.99 |
| 36 |
532407175 |
SHAFT.ASM.FRONT.TORQUE.BZP. This part replaces 532164550. Price: $22.99 |
| 37 |
532161463 |
RETAINER.FRONT.SHAFT Price: $9.99 |
| 38 |
532163409 |
SCREW Price: $3.99 |
| 39 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 40 |
532148435 |
WHEEL.8X2.PR.LP.JEEP.GREY Price: $9.99 |
| 42 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532083923. Price: $3.99 |
| 43 |
819572216 |
WASHER.ZINC.PLATED Price: $4.99 |
| 44 |
532158755 |
SCREW.PAN.HEAD This part replaces 532144929. Price: $4.99 |
