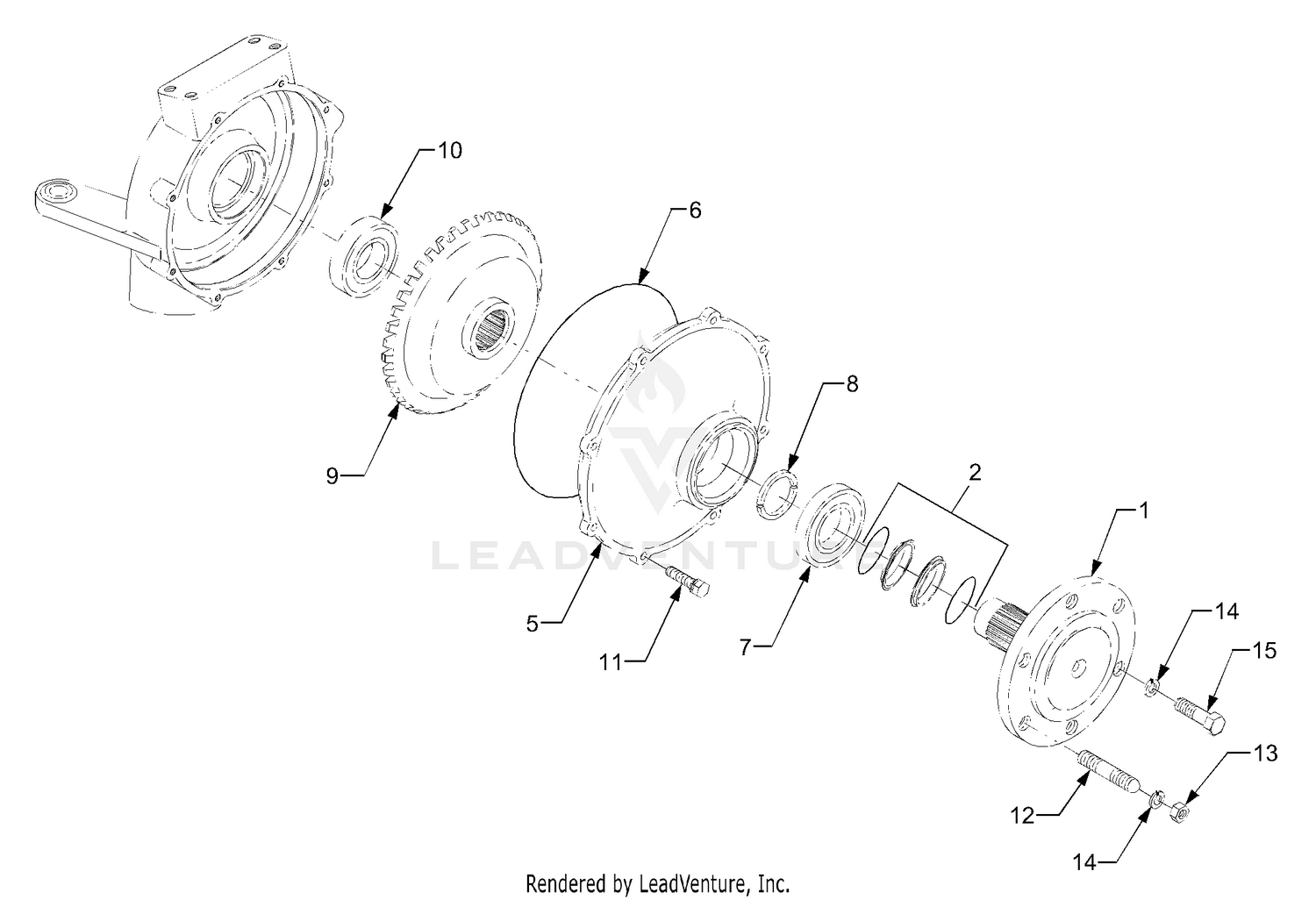

| Ref | Part Number | Description |
|---|
| 1 |
115-3273 |
KIT-SERVICE, CYLINDER This part replaces 83-2330. Price: $679.02 |
| 1 |
DD-T4620-43713 |
FRONT AXLE Not Available This part replaces DD-T4620-43711. Price: |
| 2 |
115-9472 |
BEARING-CONE AND SEAL This part replaces 254-70. Price: $22.04 |
| 2 |
DD-T4818-43451 |
SEAL ASSEMBLY-FLOATING Not Available Price: |
| 3 |
115-9471 |
BEARING-CUP This part replaces 254-61. Price: $6.46 |
| 4 |
18-6320 |
WASHER-STEERING Price: $2.65 |
| 5 |
32136-9 |
NUT-HEX, SLOTTED Price: $7.44 |
| 5 |
DD-T4682-43622 |
FRONT COVER AXLE Not Available Price: |
| 6 |
3272-37 |
PIN-COTTER Price: $0.75 |
| 6 |
DD-37805-43551 |
O-RING Not Available Price: |
| 7 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 7 |
DD-08101-06209 |
BALL BEARING Not Available Price: |
| 8 |
84-5300 |
NUT-JAM Price: $9.99 |
| 8 |
DD-T4340-43681 |
CLIP-CIRCLE Not Available Price: |
| 9 |
107-2553 |
ROD END ASM This part replaces 83-1640-03. Price: $150.07 |
| 9 |
DD-T2620-43721 |
BEVEL GEAR 39 T Not Available Price: |
| 10 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 10 |
DD-08101-06208 |
BALL BEARING Not Available Price: |
| 11 |
DD-01123-50835 |
HEX BOLT Not Available Price: |
| 12 |
32151-10 |
RING-RETAINING Price: $0.81 |
| 12 |
DD-01517-51632 |
FRONT WHEEL STUD Not Available This part replaces DD-T4240-27712. Price: |
| 13 |
92-9152 |
HUB ASM Price: $605.09 |
| 13 |
DD-02076-50160 |
HEX NUT Not Available Price: |
| 14 |
112-0266 |
KIT-3WD SERVICE, GR3150 This part replaces 92-9169. Price: $2,537.24 |
| 14 |
DD-04512-50160 |
LOCK WASHER Not Available Price: |
| 15 |
115-3275 |
KIT-SERVICE, CASTOR FORK This part replaces 93-2529-01. Price: $530.51 |
| 16 |
3220-6 |
NUT-JAM Price: $1.25 |
| 18 |
3217-12 |
NUT-HEX Price: $3.12 |
| 19 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 20 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 23 |
92-9165 |
SEAL Price: $20.45 |
| 24 |
92-9167 |
CLUTCH-ROLLER Price: $141.54 |
| 25 |
111512 |
DISCONTINUED This part replaces 10-6830. Price: Call Us |
| 27 |
3274-93 |
SCREW-HSH Price: $3.39 |
| 28 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 29 |
85-8950 |
FLANGETTE-STANDARD Price: $11.06 |
| 30 |
251-352 |
BEARING Price: $47.92 |
| 31 |
85-8940 |
FLANGETTE-RELUBE Price: $9.50 |
| 32 |
88-8350 |
TAB-BEARING Price: $7.12 |
| 33 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 34 |
323-29 |
SCREW-HH Price: $0.42 |
| 35 |
3290-496 |
NUT-RETAINER Price: $5.99 |
| 36 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 37 |
56-7971 |
CLAMP-TUBE Price: $17.90 |
| 38 |
69-9760 |
COVERPLATE Price: $5.38 |
| 39 |
322-10 |
SCREW-HH Price: $0.70 |
| 40 |
92-9166 |
WASHER-THRUST Price: $4.61 |
| 41 |
92-9159 |
WASHER Price: $4.27 |
| 42 |
302-40 |
FITTING-GREASE, 90 DEG Price: $1.70 |
| 43 |
340-7 |
FITTING-STRAIGHT Price: $14.00 |
| 44 |
119-3564 |
KIT-SERVICE, GR3150 3WD This part replaces 92-9197. Price: $377.40 |
| 45 |
92-9752 |
DECAL Price: $13.09 |
| 46 |
93-0114 |
TUBE - REAR, TOP Price: $89.71 |
| 47 |
93-0115 |
TUBE - REAR, BOTTOM Price: $103.39 |
