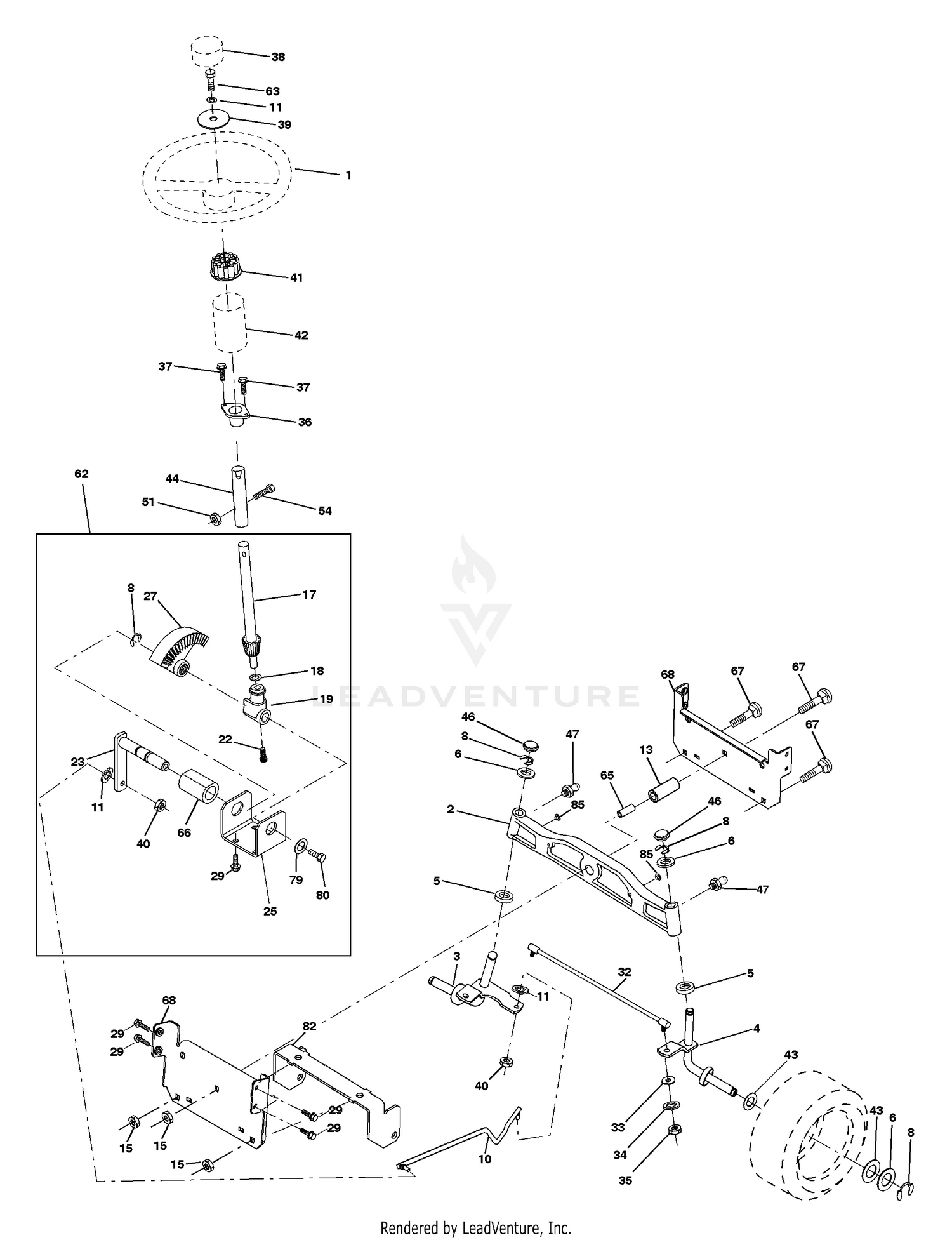

Steering Assembly

Steering Assembly

Parts (86)

RefPart NumberDescription
1 159944X428 Wheel Steering Price: Call Us
1 92-1354 CAP-END Price: $2,256.45
2 165854 Axle Asm Stmp Dropped STLT Price: Call Us
2 98-7897 VALVE - RELIEF This part replaces 92-1355. Price: $307.38
3 169840 Spindle Asm LH Price: Call Us
4 169839 Spindle Asm RH Price: Call Us
4 75-0240 O-RING Price: $2.36
5 110-6342 SPRING This part replaces 75-0140. Price: $9.45
5 6266H Bearing Race Thrust Harden Price: Call Us
6 121748X Washer 25/32 X 1-5/8 X 16 Ga Price: Call Us
6 98-7897 VALVE - RELIEF This part replaces 84-0550. Price: $307.38
7 92-1356 VALVE-SCREW Price: $147.12
8 12000029 Ring Klip #t5304-75 Price: Call Us
8 84-0480 POPPET-RELIEF, CHARGE Price: $54.48
9 84-0490 SPRING-COMPRESSION Price: $15.55
10 169832 Link Drag Price: Call Us
10 92-1353 SHIM KIT Price: $36.78
11 10040600 Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us
11 28-3570 O-RING Price: $6.06
12 84-0500 CHARGE RELIEF PLUG ASM Price: $37.39
13 163518 Spacer Brg. Axle Front Price: Call Us
13 75-0500 BEARING-NEEDLE Price: $83.78
14 84-0210 GASKET-CAP, END Price: $27.88
15 145212 Nut Hex Flange Lock Price: Call Us
15 94-3975 PIN This part replaces 75-0480. Price: $5.80
16 84-0460 SCREW-HWHTF Price: $4.27
17 156546 Shaft Asm Strg Price: Call Us
17 84-0440 COVER-TRUNNION Price: $235.07
18 57079 Washer Thrust 515x 750x 033 Price: Call Us
18 84-0430 O-RING Price: $6.94
19 160395 Support Shaft Price: Call Us
19 84-0270 SPACER-TRUNNION Price: $43.60
20 84-0570 SHIM-TRUNNION, COMPOSITE Price: $44.85
21 84-0260 BEARING-ROLLER, TAPERED Price: $135.12
22 165857 Screw Hex Wsh Hd Torx Price: Call Us
22 353-551 PLUG-HH Price: $18.48
23 165851 Shaft Asm Pittman Price: Call Us
24 84-0360 WASHER Price: $3.60
25 154406 Bracket Steering Price: Call Us
25 84-0330 SCREW-HH Price: $9.87
26 84-0300 SHAFT-PUMP Price: $416.83
27 136874 Gear Sector Price: Call Us
27 84-0310 DISCONTINUED Price: Call Us
28 19131416 Washer 13/32 x 7/8 x 16 Ga. Price: Call Us
28 84-0320 RING-RETAINING Price: $1.32
29 17060612 Screw 3/8-16x.75 Price: Call Us
29 84-0400 SEAL-LIP Price: $20.85
30 84-0410 DISCONTINUED Price: Call Us
31 28-3520 O-RING Price: $8.44
32 130465 Rod Tie Price: Call Us
32 84-0380 RING-RETAINING, INT. Price: $12.75
33 19111216 Washer 11/32 x 3/4 x 16 Ga. Price: Call Us
33 84-0240 HOUSING-PUMP Price: $1,872.02
34 10040500 Washer Lock Hvy Hlcl Spr 5/16 Price: Call Us
34 84-0470 SEAL-LIP Price: $41.78
35 73540500 Crownlock Nut 5/16-24 Price: Call Us
35 84-0450 COVER-TRUNNION Price: $352.66
36 155099 Bushing Strg Price: Call Us
36 84-0250 SWASHPLATE-VARIABLE Price: $1,011.82
37 152927 Screw Price: Call Us
37 75-0400 PLATE-THRUST Price: $41.27
38 159946X428 Insert Cap Strg Wh Au Price: Call Us
38 75-0470 CYLINDER BLOCK KIT Price: $1,746.91
39 19132411 Washer 13/32 X 2-3/8 X 12 Ga Price: Call Us
39 84-0280 PLATE-VALVE, RH Price: $391.57
40 75-0510 PIN Price: $8.40
40 7810H Lock nut Price: Call Us
41 159945 Adaptor Wheel Strg Price: Call Us
41 92-1358 DISCONTINUED Price: Call Us
42 145054X428 Boot Steering Dash Price: Call Us
42 92-1352 PLUG Price: $30.00
43 121749X Washer 25/32 X 1 1/4 X 16 Ga Price: Call Us
44 153720 Extension Steering Shaft LR/LT Price: Call Us
46 121232X Cap Spindle Fr Top Blk Price: Call Us
47 6855M Fitting Grease Price: Call Us
51 73800500 Nut Lock Hex w/Ins 5/16-18 Price: Call Us
54 74780520 Bolt Fin Hex 5/16-18 Unc x 1-1/4 Price: Call Us
62 167902 Kit, Steering Assembly Svc Price: Call Us
63 74780616 Bolt Fin Hex 3/8-16unc x 1 Gr. 5 Price: Call Us
65 160367 Brace Axle Price: Call Us
66 154404 Bearing Arm Pittman Price: Call Us
67 72140618 Bolt Rdhd Sq 3/8-16 Unc x 2-1/4 Price: Call Us
68 169827 Axle, Brace Price: Call Us
79 19132012 Washer 13/32 x 1-1/4 x 12 Ga. Price: Call Us
80 74950612 Bolt Hex Nylon 3/8-16 x 3/4 Price: Call Us
82 169835 Bracket Susp. Chassis Front Price: Call Us
