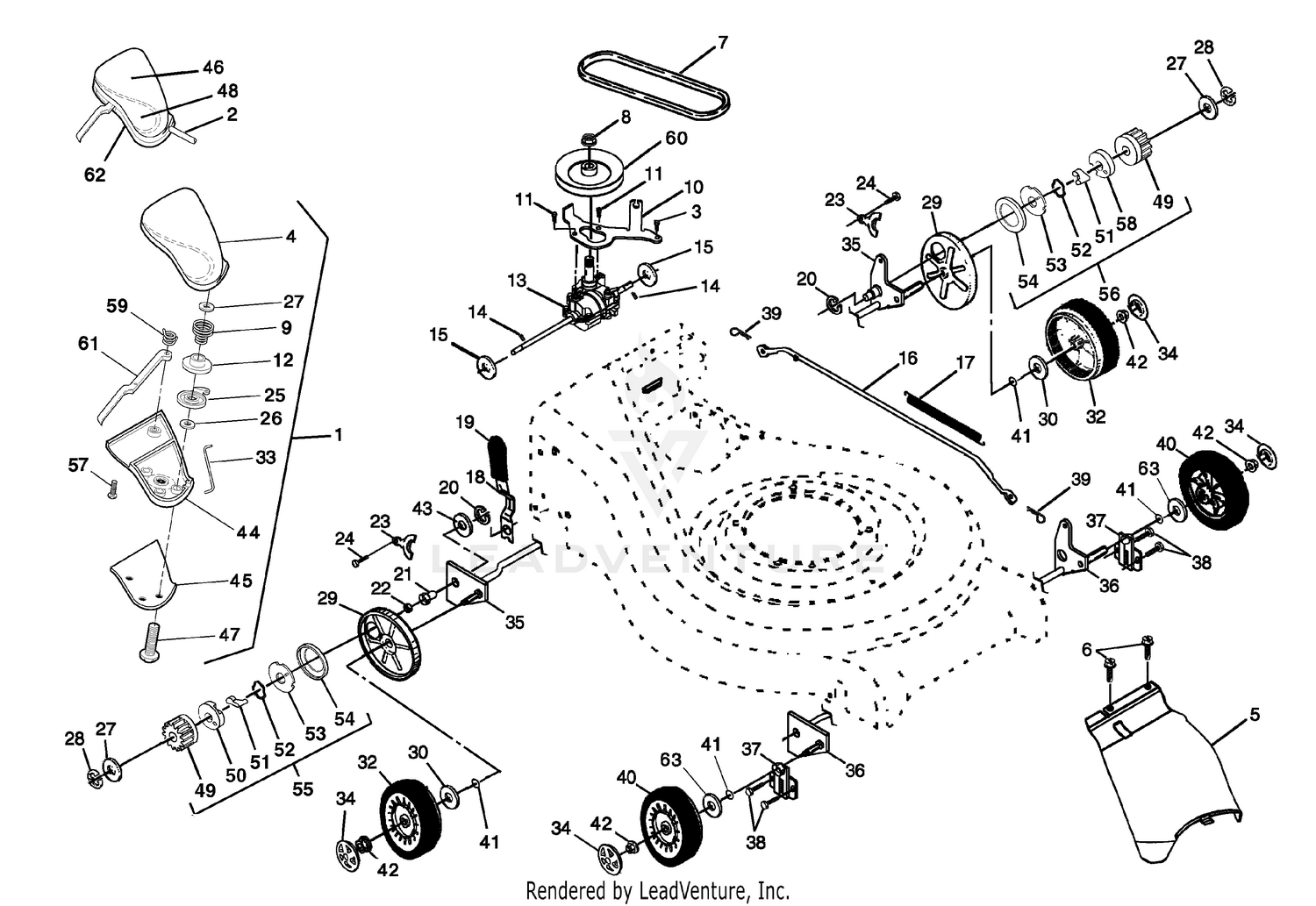

| Ref | Part Number | Description |
|---|
| 1 |
532185905 |
CONTROL.DR.AW.GRY.RWGD.NLA Price: $64.99 |
| 2 |
532180612 |
CABLE, DRIVE CONTROL Price: $27.99 |
| 3 |
532054583 |
SCREW Price: $4.99 |
| 4 |
532185963 |
COVER Price: $8.53 |
| 5 |
532400783 |
COVER.DRIVE.21.RWGD.MO This part replaces 532185592. Price: $9.99 |
| 6 |
532750634 |
SCREW Price: $2.99 |
| 8 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532132010. Price: $3.99 |
| 9 |
532180607 |
SPRING, PULLEY ADJUSTER Price: $2.99 |
| 10 |
532166021 |
BELT KEEPER BRACKET This part replaces 532177654. Price: $3.99 |
| 11 |
817541011 |
Screw, Hex Washer Head #10-24 x .668 Price: $9.47 |
| 12 |
532180604 |
PULLEY, SPLIT, UPPER Price: $5.99 |
| 14 |
532145354 |
PIN.SPRING.THRUST Price: $3.99 |
| 15 |
532057079 |
THRUST WASHER Price: $1.99 |
| 16 |
532414284 |
KIT.ROD.CONNECTING.REPL.161584 This part replaces 532161584. Price: $32.99 |
| 17 |
532409616 |
SPRING EXTENSION This part replaces 532161602. Price: $5.99 |
| 18 |
532160477 |
SPRING, SELECTOR This part replaces 532164554. Price: $3.99 |
| 19 |
532189808 |
KNOB.S/P.RWGD.EXT.ERGO.GREY This part replaces 532185590. Price: $2.99 |
| 20 |
812000022 |
E-RING Price: $3.99 |
| 21 |
532169920 |
BEARING SUPPORT.ASM This part replaces 532163365. Price: $14.99 |
| 22 |
532169911 |
BEARING, BALL Price: $11.99 |
| 23 |
532161118 |
RETAINER DRIVE ASM. STMP. This part replaces 532164555. Price: $3.99 |
| 24 |
532057808 |
SCREW Price: $1.99 |
| 25 |
532180603 |
PULLEY, SPLIT, LOWER Price: $68.99 |
| 26 |
532057079 |
THRUST WASHER Price: $1.99 |
| 27 |
596040101 |
Washers This part replaces 532052160. Price: $2.99 |
| 28 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 29 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532180504. Price: $5.99 |
| 30 |
532067725 |
WASHER FLUT Price: $5.99 |
| 32 |
532193139 |
KIT.WHL.9X2.RAD.BLK(SERV ONLY) This part replaces 532180753. Price: $54.99 |
| 33 |
532181609 |
CONNECTOR, LEVER PULLEY Price: $2.99 |
| 34 |
532150182 |
CAP.HUB.ARC.SPOKE.8".LP This part replaces 532180626. Price: $3.99 |
| 35 |
532160785 |
SHAFT.ASM.REAR.TORQUE. This part replaces 532164552. Price: $29.99 |
| 36 |
532407175 |
SHAFT.ASM.FRONT.TORQUE.BZP. This part replaces 532164550. Price: $22.99 |
| 37 |
532161463 |
RETAINER.FRONT.SHAFT Price: $9.99 |
| 38 |
532163409 |
SCREW Price: $3.99 |
| 39 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 40 |
532435276 |
WHEEL.8X1.75.CF5SPK.RAD.BLACK This part replaces 532143593. Price: $24.99 |
| 41 |
532197480 |
O-RING..070X.487.NEOPRENE This part replaces 532188152. Price: $3.99 |
| 42 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532083923. Price: $3.99 |
| 43 |
819572216 |
WASHER.ZINC.PLATED Price: $4.99 |
| 44 |
532185961 |
Cover, Bottom, Auto-Walk Drive Control Price: Call Us |
| 45 |
532181363 |
PLATE, TRIGGER, DRIVE CONTROL This part replaces 532186006. Price: $15.99 |
| 46 |
532185858 |
DECAL AUTO WALK CONTROL Price: $8.99 |
| 47 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 48 |
532185859 |
DECAL,DRIVE CONTROL OPERATION Price: $6.11 |
| 49 |
532175103 |
GEAR, PINION Price: $10.99 |
| 50 |
532175102 |
RETAINER, DRIVE, RH Price: $5.99 |
| 51 |
532175098 |
PAWL.DRIVE.21.EZ-WALK Price: $4.99 |
| 52 |
532188291 |
SPRING, TORSION Price: $3.99 |
| 53 |
532175104 |
DISC.DRIVE.21.EZ-WALK Price: $5.99 |
| 54 |
532184172 |
SEAL.PINION This part replaces 532175101. Price: $5.99 |
| 55 |
532193367 |
KIT.PINION.ASM.RH This part replaces 532188293. Price: $38.99 |
| 56 |
532193366 |
KIT.PINION.ASM.LH This part replaces 532188292. Price: $43.99 |
| 57 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 This part replaces 532180606. Price: $3.99 |
| 58 |
532175105 |
RETAINER.DRIVE.21.EZ-WALK.LT Price: $5.99 |
| 59 |
532181045 |
SPRING, RETURN, LEVER Price: $2.99 |
| 60 |
532194128 |
PULLEY This part replaces 532184749. Price: $17.99 |
| 61 |
532185964 |
LEVER.SHORT.BLUE.HV. Price: $17.99 |
| 62 |
532182494 |
DECAL Price: $7.99 |
