Parts Catalog

⚓ Флот 📚 Manuals Replacements 38,231,304 parts

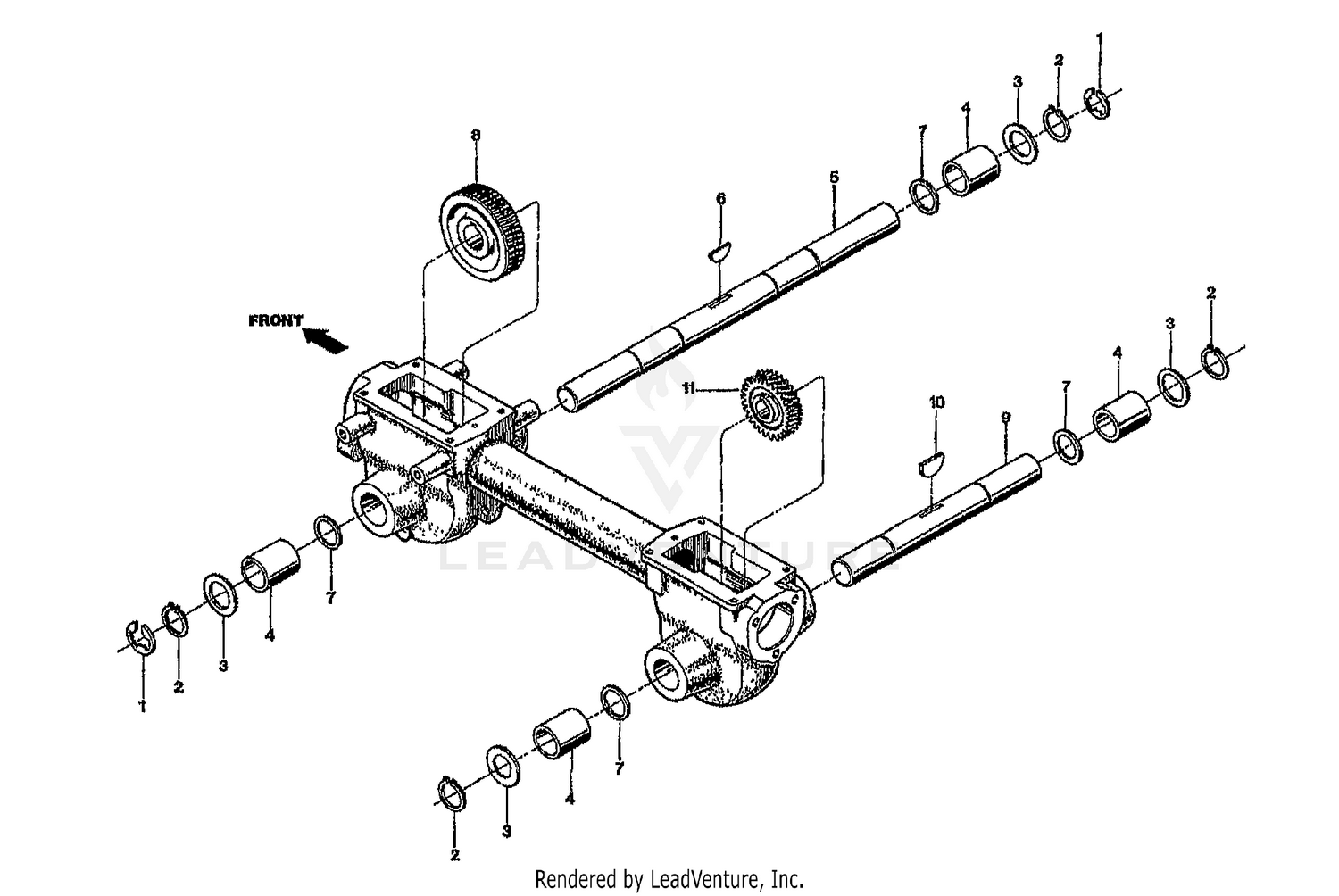

WHEEL & TILLER SHAFT ASSEMBLY

WHEEL & TILLER SHAFT ASSEMBLY

Parts (17)

RefPart NumberDescription
1 GW-9512 RETAINING RING Not Available This part replaces 9512. Price:
2 716-04104 Retaining Ring This part replaces 9511. Price: $3.85
3 736-04257 Flat Washer, 1.375 x 1.015 x .005 This part replaces 1166-5. Price: $3.48
3 736-04258 Washer, 1.375 x 1.015 x .01 This part replaces 1166-4. Price: $3.48
3 736-04259 Washer, 1.375 x 1.015 x .015 This part replaces 1166-3. Price: $5.94
3 736-04260 Washer, 1.375 x 1.015 x .03 This part replaces 1166-2. Price: $5.94
3 736-04309 Washer, 1.375 x 1.015 x .062 This part replaces 1166-1. Price: $3.85
4 941-04300 Bushing, 1.25 x 1 x .005 x 1.5 This part replaces 1086. Price: $15.25
5 753-05576 KIT-SERVICE WHEEL SHAFT 711-04088 Not Available This part replaces 55004. Price:
6 714-04059 Key, .25 x 1.062 This part replaces 9305. Price: $5.94
7 736-04310 Flat Washer, 1/234 x 1.015 x .062 This part replaces 1132-2. Price: $3.95
8 50041 GEAR-WORM 61 TEETH MACH Price: Call Us
9 55006 SHAFT-TILLER MACH Price: Call Us
9 911-04078 TILLER TINE SHAFT This part replaces 1915074. Price: $124.65
10 GW-1104 Key-Woodruff, 1/4 x 1-1/4 This part replaces 1104. Price: $8.32
11 50042 GEAR-WORM BRONZE MACH Not Available Price:
11 917-04383 Worm Gear, 30T, RH This part replaces 1904279. Price: $134.76
