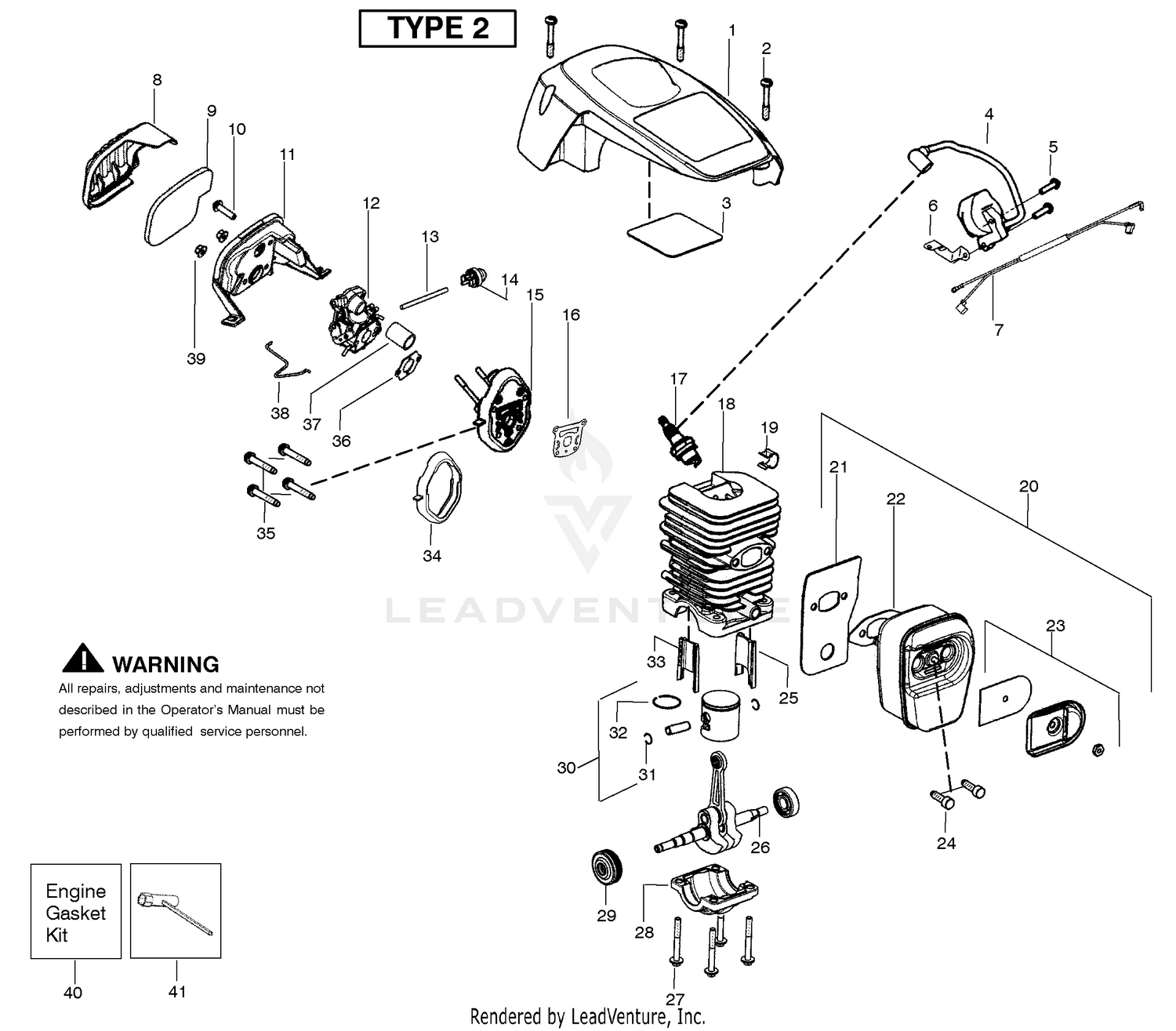

Engine Assembly Type 2
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 530016153 | Screw Price: $1.99 |
| 3 | 530059006 | Reflector-Tape Price: $1.99 |
| 4 | 530039198 | Module - Ignition Price: $29.99 |
| 5 | 530016432 | Screw Price: $1.99 |
| 6 | 530047442 | Strap-Ground Price: $1.99 |
| 7 | 530057943 | Assy-Wire Harness Price: $5.99 |
| 8 | 530058687 | Cover-Air Filter Price: $4.99 |
| 9 | 530057925 | Filter-Air Price: $0.99 |
| 10 | 530016425 | Screw Price: $1.99 |
| 11 | 530057892 | Housing-Air Filter Price: $4.99 |
| 14 | 530047721 | Bulb-Purge "snap-in" Price: $3.99 |
| 19 | 530016136 | Clip-High Tension Lead Price: $1.99 |
| 21 | 530057942 | Backplate-Muffler Price: $5.99 |
| 23 | 545006056 | Kit-Spark Arrestor Price: $6.99 |
| 24 | 530016338 | Bolt-Muffler Price: $1.99 |
| 26 | 545112901 | Assy-Crankshaft/Rod This part replaces 530012537. Price: $49.99 |
| 27 | 530016417 | Bolt Price: $1.99 |
| 28 | 530057941 | Cap-Crankcase Price: $5.99 |
| 29 | 530056363 | Assy-Bearing/Seal Price: $11.99 |
| 31 | 530015697 | Retainer-Piston Pin Price: $1.99 |
| 32 | 545160401 | Ring-Piston This part replaces 530038729. Price: $2.99 |
| 35 | 530016426 | Screw Price: $1.99 |
| 37 | 530057926 | Tube-Intake Price: $1.99 |
| 38 | 530057909 | Wire-Throttle Price: $1.99 |
| 39 | 530016101 | Nut-Carb. Price: $1.99 |
| 41 | 530031163 | Wrench-Bar Price: $4.99 |
| 135 | X-75-18 | Plug, Pine Price: Call Us |
| 136 | 230125-S | Pin-Dowel Price: Call Us |
| 137 | 277014 | Gasket-Oil Pan Price: Call Us |
