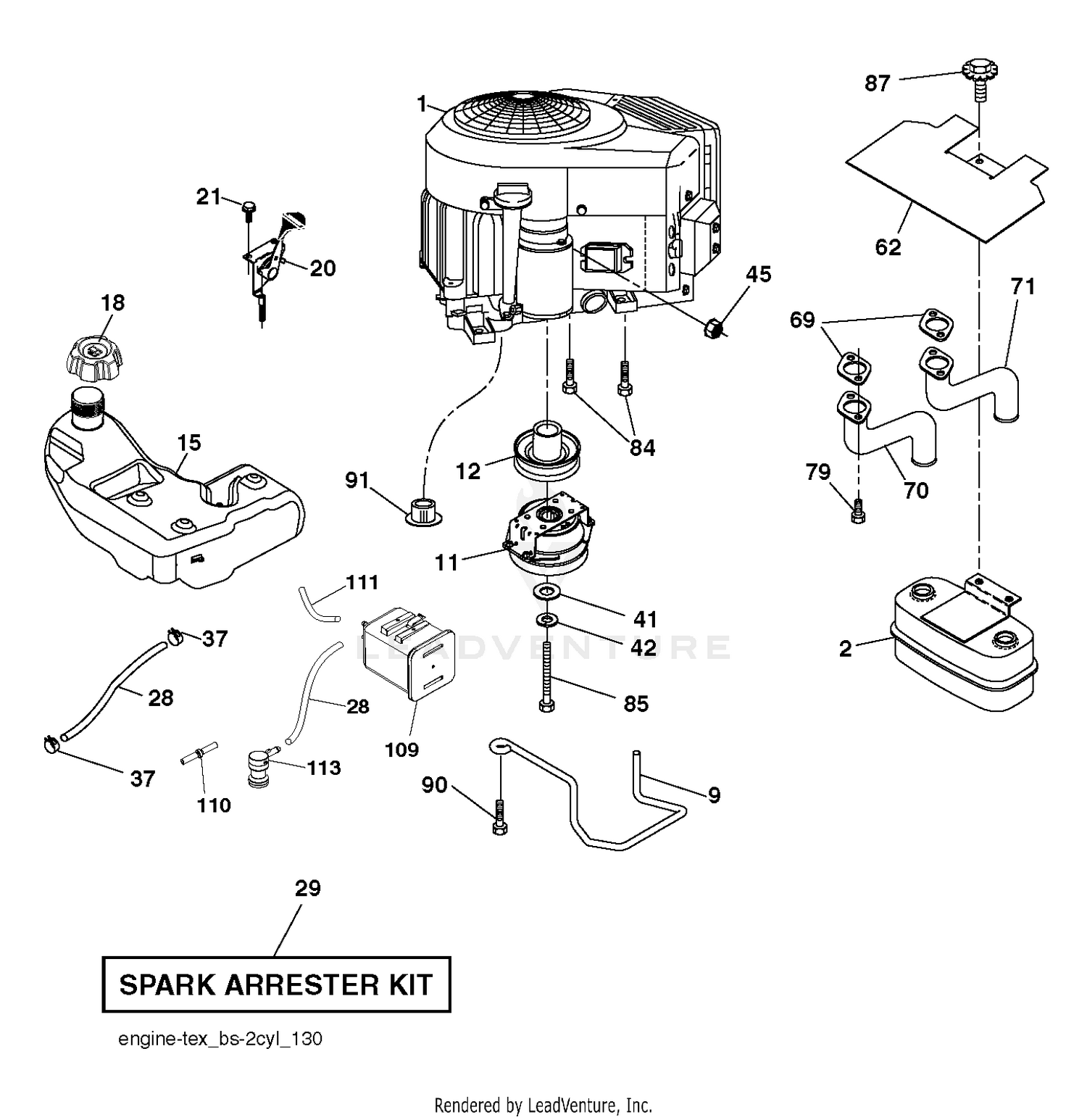

| Ref | Part Number | Description |
|---|
| 1 |
98-9590 |
NUT-CAP Price: $3.86 |
| 2 |
98-9547 |
CAM-FUEL Price: $87.63 |
| 3 |
98-9548 |
WASHER Price: $3.49 |
| 4 |
98-9669 |
GEAR-PUMP, INJECTION Price: $86.00 |
| 5 |
98-9350 |
BOLT Price: $0.98 |
| 6 |
98-9511 |
STOPPER-FUEL, CAMSHAFT Price: $5.18 |
| 7 |
98-9383 |
DISCONTINUED Price: Call Us |
| 8 |
98-9595 |
KEY-WOODRUFF Price: $2.04 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 9 |
98-9459 |
CAMSHAFT-FUEL Price: $159.71 |
| 10 |
98-9382 |
BEARING-BALL Price: $23.27 |
| 11 |
587241601 |
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 Price: $229.99 |
| 11 |
98-9657 |
CIRCLIP-SHAFT, GOVERNOR Price: $4.48 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 12 |
98-9565 |
SCREW-SET Price: $2.66 |
| 13 |
98-9644 |
GOVERNOR SHAFT ASM Price: $527.54 |
| 15 |
529999102 |
TANK ASSY W/CAP 3 GAL CARB This part replaces 532414151. Price: $329.99 |
| 18 |
532439208 |
CAP.ASM.FL.RITCH.3"E10.SYM.498 Price: $37.99 |
| 20 |
532423502 |
CONTROL.TH/CK.COBRA.B&S.TWN.BK Price: $24.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED This part replaces 532179953. Price: $3.99 |
| 87 |
537171877 |
BOLT 5/1618UNC X 3/4 W/ SEMS Price: $1.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 109 |
532414114 |
CANNISTER, CARBON Price: $54.99 |
| 110 |
532414118 |
VALVE.ASM.ANTI-SLOSH Price: $19.99 |
| 111 |
587044580 |
Hoses This part replaces 532414119. Price: $9.99 |
| 113 |
597791601 |
VALVES This part replaces 532414127. Price: $9.99 |
