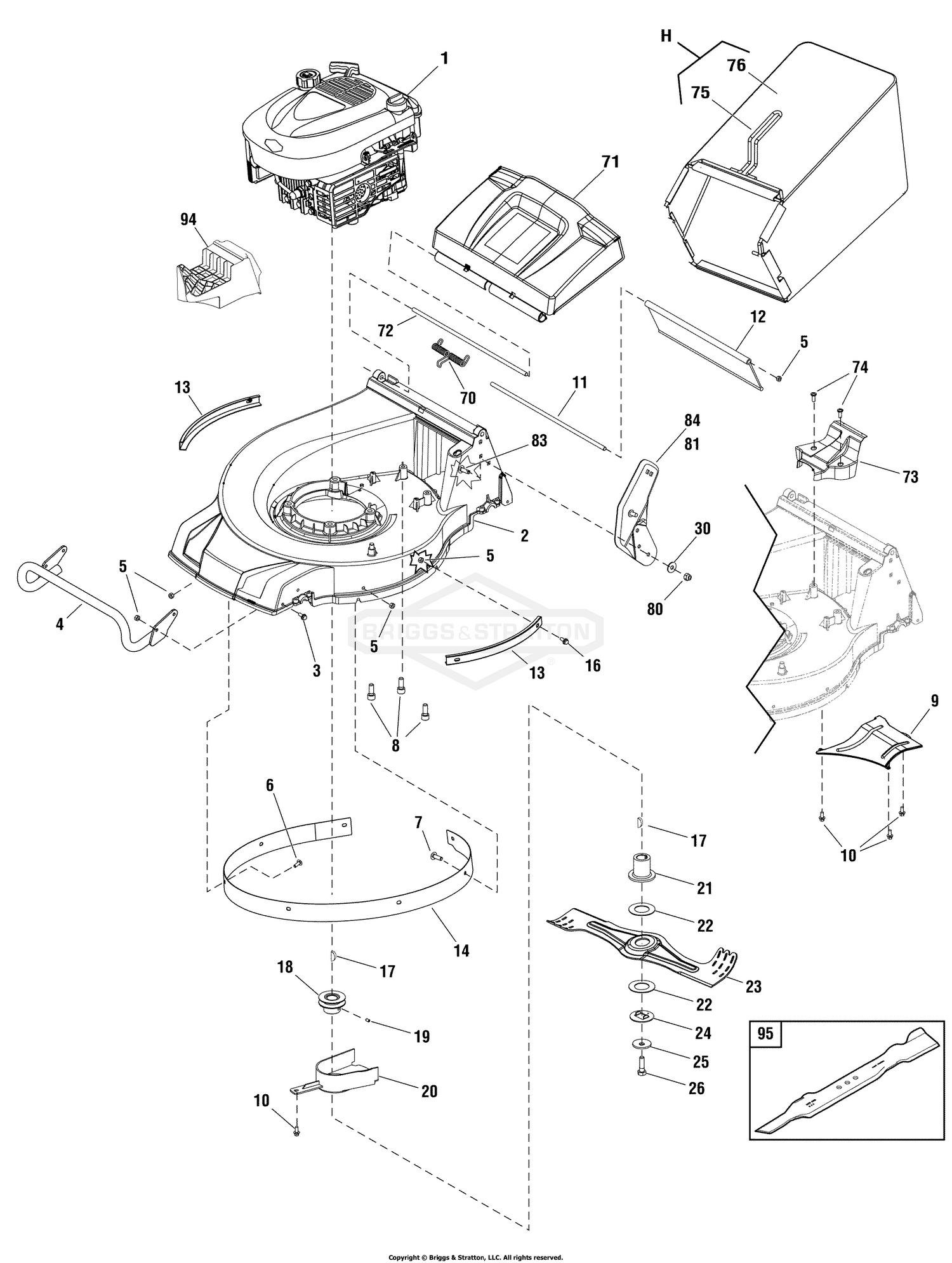

| Ref | Part Number | Description |
|---|
| 2 |
701180YP |
DECK, 19" This part replaces 701180. Price: $821.49 |
| 3 |
701181YP |
BOLT, Hex Flange This part replaces 701181. Price: $3.39 |
| 4 |
701182YP |
BUMPER, 19" This part replaces 701182. Price: $48.75 |
| 5 |
701183YP |
NUT, Hex, Nylon Insert, Torque Type This part replaces 701183. Price: $2.96 |
| 6 |
701184YP |
SCREW, Truss Head, Cross Recessed This part replaces 701184. Price: $2.65 |
| 7 |
701185YP |
SCREW, Truss Head, Cross Recessed This part replaces 701185. Price: $2.96 |
| 8 |
701186YP |
SCREW, Inner Hexagon, Round Head, Tapping This part replaces 701186. Price: $4.81 |
| 9 |
701252YP |
DEFLECTOR, Lower This part replaces 701252. Price: $52.26 |
| 10 |
701187YP |
SCREW, Hex Flange, Tapping This part replaces 701187. Price: $5.15 |
| 11 |
701188YP |
SHAFT, Rear Deflector, 19" This part replaces 701188. Price: $12.18 |
| 12 |
701189YP |
DEFLECTOR, Rear, 19" This part replaces 701189. Price: $30.49 |
| 13 |
701190YP |
SHIELD, Outer This part replaces 701190. Price: $17.80 |
| 14 |
701253YP |
SHIELD, Inner Ring This part replaces 701253. Price: $52.00 |
| 16 |
701191YP |
BOLT, Hex Flange This part replaces 701191. Price: $3.06 |
| 17 |
701192YP |
KEY, Woodruff This part replaces 701192. Price: $3.59 |
| 18 |
701193YP |
PULLEY, Engine This part replaces 701193. Price: $50.99 |
| 20 |
701299YP |
SHIELD, Lower Belt This part replaces 701299. Price: $13.09 |
| 21 |
701255YP |
ADAPTOR, Blade This part replaces 701255. Price: $20.99 |
| 22 |
701256YP |
DISC, Friction This part replaces 701256. Price: $3.19 |
| 23 |
701195YP |
BLADE, 19" This part replaces 701195. Price: $33.37 |
| 24 |
701257YP |
CLIP This part replaces 701257. Price: $3.88 |
| 25 |
701196YP |
SPRING, Dishing This part replaces 701196. Price: $10.19 |
| 26 |
701197YP |
BOLT, Blade This part replaces 701197. Price: $8.19 |
| 30 |
701230YP |
WASHER, Flat, C Class This part replaces 701230. Price: $3.06 |
| 70 |
701223YP |
SPRING, Torsion This part replaces 701223. Price: $10.91 |
| 71 |
701276YP |
COVER, Rear This part replaces 701276. Price: $121.89 |
| 72 |
701224YP |
SHAFT, Rear Cover This part replaces 701224. Price: $12.18 |
| 73 |
701225YP |
SHIELD, Upper Pulley This part replaces 701225. Price: $34.44 |
| 74 |
701226YP |
SCREW, Inner Hexagon Tapping This part replaces 701226. Price: $3.47 |
| 80 |
701228YP |
NUT, Nylon Insert, Torque Type This part replaces 701228. Price: $2.96 |
| 81 |
701282YP |
BRACKET, Handle, RH This part replaces 701282. Price: $70.71 |
| 83 |
701229YP |
BOLT, Carriage This part replaces 701229. Price: $3.20 |
| 84 |
701283YP |
BRACKET, Handle, LH This part replaces 701283. Price: $70.71 |
| 94 |
702120YP |
PLUG, Mulch, 19" This part replaces 702120. Price: $111.29 |
