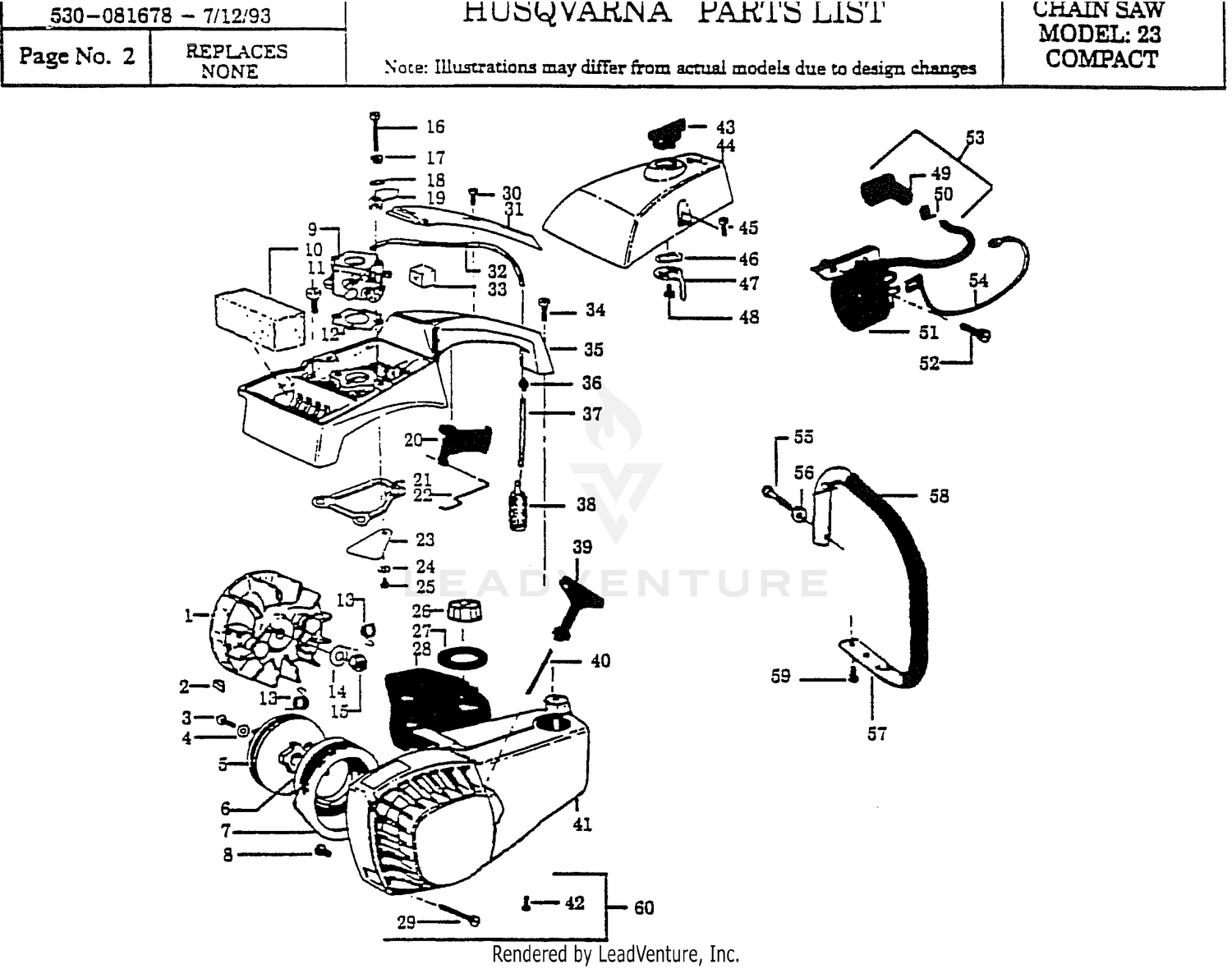

| Ref | Part Number | Description |
|---|
| 1 |
530047198 |
FLYWHEEL ASSEMBLY This part replaces 530039111. Price: $23.99 |
| 2 |
530015126 |
KEY-FLYWHEEL Price: $2.99 |
| 3 |
530016141 |
SCREW This part replaces 530015036. Price: $4.99 |
| 4 |
530015123 |
WASHER Price: $3.99 |
| 5 |
530069288 |
KIT-STARTER PULLEY Price: $4.99 |
| 6 |
545008007 |
SPRING-STARTER This part replaces 530042023. Price: $5.23 |
| 7 |
530025487 |
Air Baffle Price: $6.25 |
| 8 |
530001726 |
SCREW Price: $1.99 |
| 9 |
530069772 |
CARBURETOR W/ LIMITER CAPS This part replaces 530035181. Price: $47.76 |
| 10 |
530023791 |
AIR FILTER Price: $2.99 |
| 11 |
530015242 |
SCREW Price: $1.99 |
| 12 |
530019045 |
CARBURETOR GASKET Price: $1.99 |
| 13 |
530023817 |
SPRING STR DOG Price: $3.99 |
| 14 |
530015127 |
WASHER-FLYWHEEL Price: $3.99 |
| 15 |
530626605 |
NUT Price: $4.99 |
| 16 |
530015245 |
SCREW Price: $2.99 |
| 17 |
530023865 |
SPACER Price: $2.99 |
| 18 |
530015254 |
WASHER Price: $2.99 |
| 19 |
530023805 |
CHOKE SHUTTER Price: $0.99 |
| 20 |
530024803 |
Throttle Trigger Price: $4.75 |
| 21 |
530019252 |
GASKET This part replaces 530019118. Price: $1.99 |
| 22 |
530026606 |
THROTTLE WIRE Price: $0.99 |
| 23 |
530023366 |
REED VALVE Price: $1.99 |
| 24 |
530023367 |
Washer Price: $0.49 |
| 25 |
545227101 |
SCREW 6-19X.437 This part replaces 530015241. Price: $2.99 |
| 26 |
530014347 |
CAP ASSY W/ RETAINER This part replaces 530010729. Price: $7.99 |
| 28 |
530010775 |
Fuel Tank Ass'y. Price: $28.88 |
| 29 |
530015707 |
SCREW This part replaces 530015649. Price: $2.99 |
| 30 |
530015247 |
SCREW Price: $1.99 |
| 31 |
530024967 |
HANDLE COVER Price: $8.99 |
| 32 |
530069216 |
KIT.LINE TANK/PURGE This part replaces 530021025. Price: $9.99 |
| 33 |
530023373 |
SEALING Price: $2.99 |
| 34 |
530015239 |
SCREW-1/4-20 X 13/16 This part replaces 530015141. Price: $2.99 |
| 35 |
530069848 |
CARB HOUSING This part replaces 530036950. Price: $17.65 |
| 36 |
530023877 |
FUEL LINE FITTING Price: $4.99 |
| 37 |
530069216 |
KIT.LINE TANK/PURGE Price: $9.99 |
| 38 |
530095646 |
FUEL PICK-UP ASSY This part replaces 530014362. Price: $5.99 |
| 39 |
530027569 |
HANDLE-STARTER This part replaces 530026735. Price: $3.99 |
| 40 |
530069232 |
KIT-ROPE Price: $4.99 |
| 41 |
530069602 |
FAN HOUSING KIT This part replaces 530069281. Price: $26.07 |
| 42 |
530015650 |
SCREW-PINCH CLAMP-TYPE 2 Price: $2.99 |
| 43 |
530023807 |
CHOKE KNOB Price: $1.99 |
| 45 |
530015168 |
SCREW-10-24 X 5/8 FILL Price: $1.46 |
| 46 |
530015147 |
WAVE WASHER Price: $3.99 |
| 47 |
530023806 |
CHOKE LEVER Price: $1.99 |
| 48 |
530015407 |
SCREW-8-16 (PLASTITE) Price: $0.56 |
| 49 |
530003934 |
Spark Plug Boot Price: $1.31 |
| 50 |
507475326 |
SPARK PLUG BOOT This part replaces 530003933. Price: $4.99 |
| 51 |
530069202 |
IGNITION MODULE Price: $43.74 |
| 52 |
530015816 |
SCREW 8-32 X 3/4 This part replaces 530015128. Price: $2.99 |
| 53 |
530039082 |
High Tension Lead Wire Price: $7.83 |
| 54 |
530039116 |
SWITCH LEAD Price: $3.99 |
| 55 |
530015037 |
SCREW Price: $2.99 |
| 56 |
530015151 |
WASHER Price: $2.99 |
| 57 |
530022351 |
FRONT HANDLE This part replaces 530010991. Price: $18.78 |
| 58 |
530027847 |
Grip-Handlebar Price: $3.42 |
| 59 |
530015507 |
SCREW Price: $0.99 |
| 60 |
530069286 |
Fan Hsg. Screw Kit Price: $4.53 |
