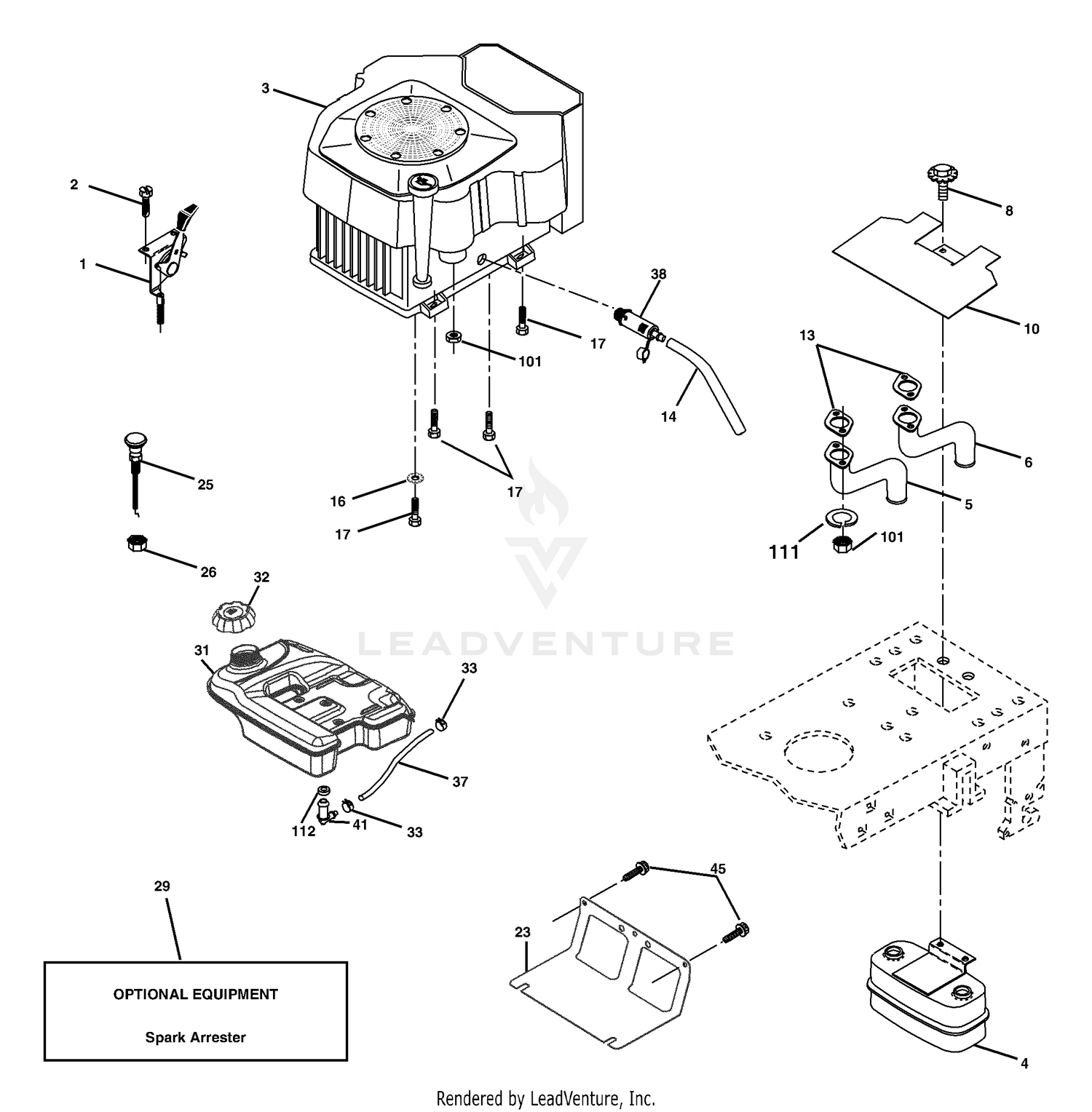

| Ref | Part Number | Description |
|---|
| 1 |
175439X428 |
Control Throttle Price: Call Us |
| 1 |
98-7572 |
NUT Price: $0.32 |
| 2 |
171875 |
Screw Hw Hd Hi-Lo #13-16 x 3/4 Price: Call Us |
| 2 |
98-7699 |
WASHER-SPRING This part replaces 98-9367. Price: $0.44 |
| 3 |
98-9363 |
STUD Price: $1.36 |
| 4 |
149723 |
Muffler Asm Twin Lo-Tone Price: Call Us |
| 4 |
98-9362 |
STUD Price: $0.66 |
| 5 |
108-1402 |
GEAR CASE ASM This part replaces 99-8381. Price: $859.88 |
| 5 |
146699 |
Pipe Exhaust LH Price: Call Us |
| 6 |
146700 |
Pipe Exhaust RH Price: Call Us |
| 6 |
98-9633 |
GASKET-CASE, GEAR Price: $30.19 |
| 7 |
98-9372 |
O-RING Price: $1.66 |
| 8 |
171877 |
Bolt 5/16-18 UNC x 3/4 w/Sems Price: Call Us |
| 8 |
98-7547 |
O-RING Price: $0.92 |
| 9 |
98-9356 |
BOLT Price: $2.06 |
| 10 |
105-3797 |
BOLT This part replaces 98-9355. Price: $1.40 |
| 10 |
146629 |
Shield Heat Muffler Price: Call Us |
| 11 |
99-3510 |
BOLT This part replaces 98-9586. Price: $0.80 |
| 12 |
119-8038 |
SEAL-OIL This part replaces 98-9482. Price: $40.16 |
| 13 |
98-9437 |
BOLT Price: $1.05 |
| 14 |
100-1765 |
BOLT This part replaces 98-7496. Price: $1.59 |
| 14 |
148456 |
Tube Drain Oil Easy Price: Call Us |
| 15 |
98-9684 |
GASKET-CASE, GEAR Price: $2.18 |
| 16 |
99-3515 |
PLUG-GEARCASE This part replaces 98-9641. Price: $9.00 |
| 17 |
17060624 |
Screw Thdrol 3/8-16 x 1-1/2 Price: Call Us |
| 23 |
169837 |
Shield Heat Price: Call Us |
| 25 |
175441X428 |
Choke Control Price: Call Us |
| 26 |
73920600 |
Nut, Keps 3/8-24 UNF Price: Call Us |
| 29 |
137180 |
Kit Spark Arrestor (Flat Scrn) Price: Call Us |
| 31 |
179022 |
Tank Fuel 4.0 Rear Price: Call Us |
| 32 |
179124X428 |
Cap Asm Fuel Price: Call Us |
| 33 |
123487X |
Clamp Hose Black Price: Call Us |
| 37 |
8543R |
Line Fuel Price: Call Us |
| 38 |
181654 |
Plug Drain Oil Price: Call Us |
| 41 |
139277 |
Stem Tank Fuel Price: Call Us |
| 45 |
17000612 |
Screw Hexwsh Thdr 3/8-16 x 3/4 Price: Call Us |
| 101 |
M73030800 |
Nut Flange Price: Call Us |
| 111 |
10010500 |
Washer Split Price: Call Us |
