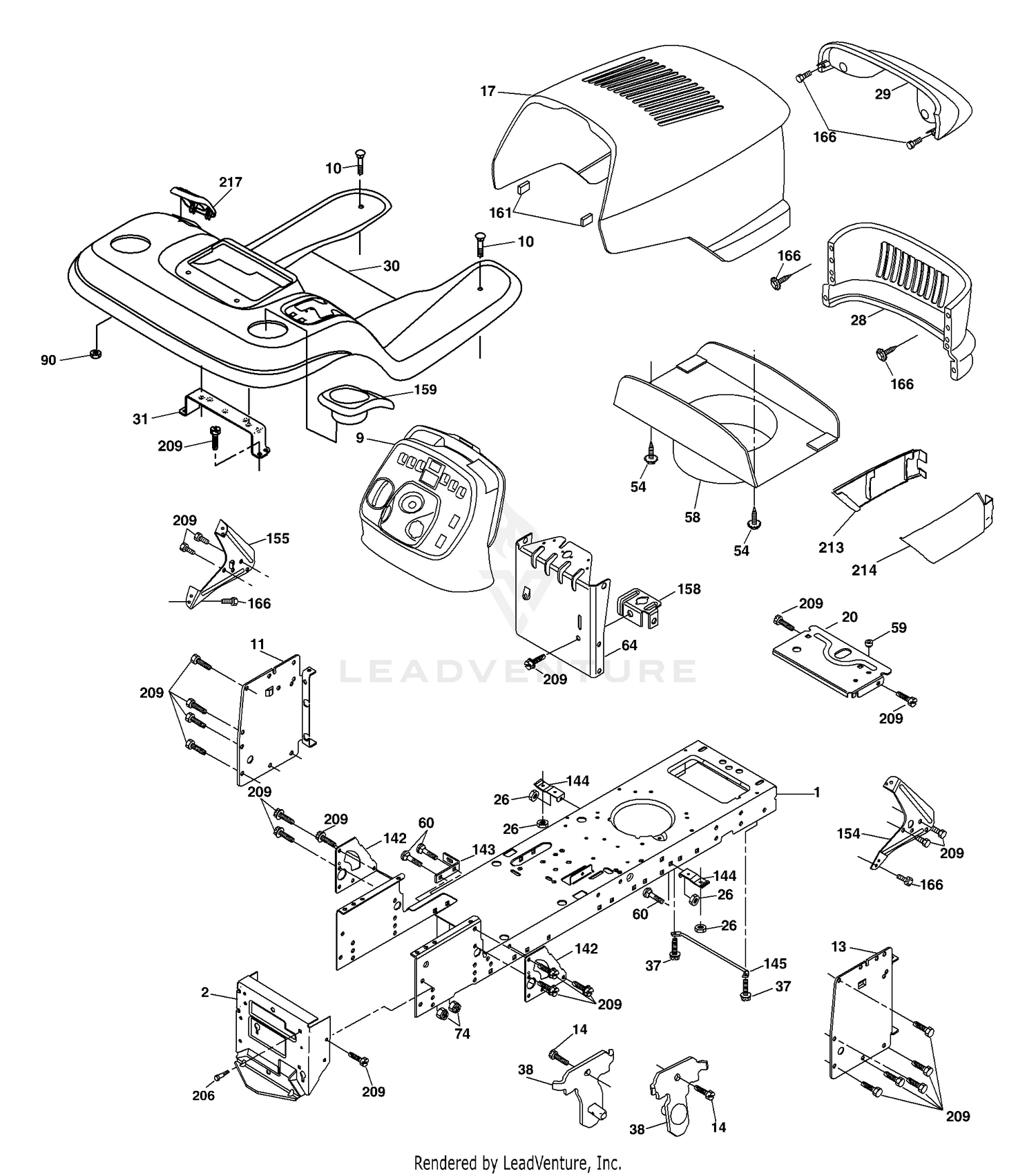

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 2 |
176554 |
Drawbar Price: Call Us |
| 9 |
161566X428 |
Dash Price: Call Us |
| 10 |
108-1415 |
UPPER GASKET KIT Price: $419.56 |
| 10 |
72140608 |
Bolt RDHD SQNK 3/8-16 x 1 Price: Call Us |
| 11 |
167203 |
Panel, Dash, LH Price: Call Us |
| 13 |
188702X010 |
Panel, Dash, RH Price: Call Us |
| 14 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 17 |
175260X428 |
Hood Assembly Price: Call Us |
| 20 |
162026 |
Plate Battery Price: Call Us |
| 26 |
73800600 |
Locknut, Hex, with Insert 3/8-16 unc Price: Call Us |
| 28 |
175289X428 |
Grille Price: Call Us |
| 29 |
161840 |
Lens, Bar Price: Call Us |
| 30 |
188572X428 |
Fender/Footrest Price: Call Us |
| 31 |
139976 |
Bracket, Fender/Support Price: Call Us |
| 37 |
17490508 |
Screw, Thdrol. 5/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket Asm Pivot Mower Rear Price: Call Us |
| 54 |
161464 |
Screw Hex Wshd 8-18 x 7/8 Price: Call Us |
| 58 |
175351 |
Duct Hood Price: Call Us |
| 59 |
187495 |
Bushing 1.375 OD Price: Call Us |
| 60 |
72140606 |
Bolt Rdhd Sqnk 3/8-16 unc x 3/4 Price: Call Us |
| 64 |
174997 |
Dash Lower Price: Call Us |
| 74 |
73680600 |
Nut Crownlock 3/8-16 unc Price: Call Us |
| 90 |
124346X |
Nut Self Thrd Wshd 1/4 Zinc Price: Call Us |
| 142 |
175702 |
Plate Reinforcement Price: Call Us |
| 143 |
186689 |
Bracket Swaybar Chassis Price: Call Us |
| 144 |
175582 |
Bracket Footrest Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 154 |
161897 |
Bracket Dash Rh Price: Call Us |
| 155 |
161900 |
Bracket Dash Lh Price: Call Us |
| 158 |
162037 |
Parking Brake Bkrt Price: Call Us |
| 159 |
179950X428 |
Cupholder Price: Call Us |
| 161 |
164655 |
Bumper Extrusion .600 x 3.50 Price: Call Us |
| 166 |
191611 |
Screw 10 x 3/4 Single Lead-Hex Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 209 |
17000612 |
Screw Hexwsh Thdr 3/8-16 x 3/4 Price: Call Us |
| 213 |
169848X428 |
Skirt Grille LH Price: Call Us |
| 214 |
169847X428 |
Skirt Grille RH Price: Call Us |
