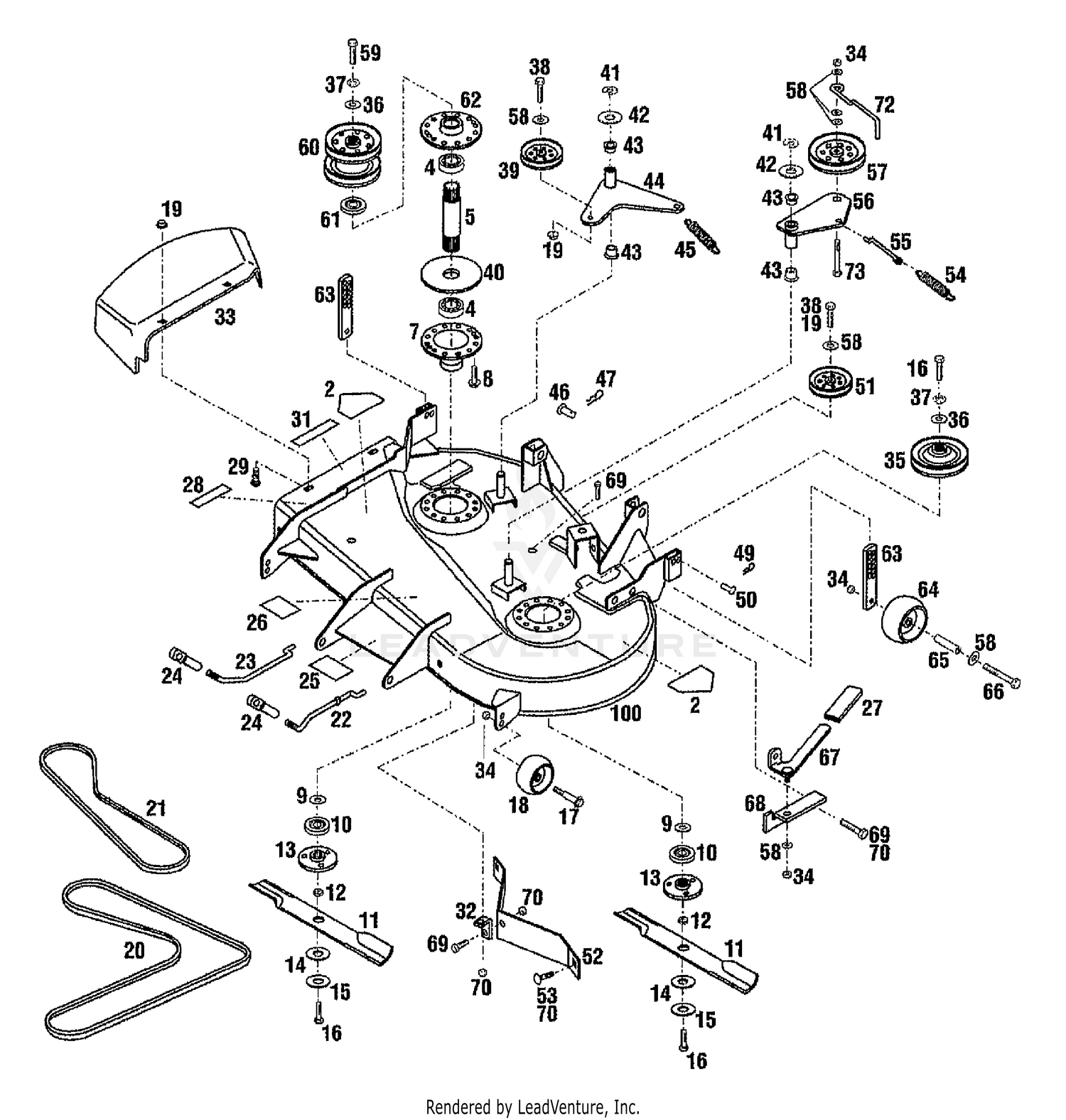

| Ref | Part Number | Description |
|---|
| 2 |
1739687 |
DECAL-OPEI CAUTION Price: $6.36 |
| 4 |
1185574P |
Ball Bearing This part replaces 1185574. Price: $32.02 |
| 5 |
1754681 |
SHAFT-ARBOR 36 Not Available Price: |
| 7 |
1772395001 |
HOUSING-ARBOR BOTTOM Price: Call Us |
| 8 |
710-1260A |
SCREW 5/16-18 x .750 This part replaces 1740496. Price: $3.34 |
| 9 |
1747643 |
SHIM WASHER 1.39X. Not Available Price: |
| 10 |
1747641 |
SHIELD-GRA Not Available Price: |
| 11 |
1772335 |
BLADE-MOWER Price: $42.18 |
| 12 |
1748409 |
COLLAR-ARB Not Available Price: |
| 13 |
1747639 |
ADAPTER-BLADE Price: Call Us |
| 14 |
1747638 |
WASHER-SPLINED Price: Call Us |
| 15 |
1747637 |
WASHER-LK CONICAL .49 ID Price: Call Us |
| 16 |
1765196 |
Screw, 7/16-14 x 1 This part replaces 1747656. Price: $3.71 |
| 17 |
1763219 |
SCR-SHLDR 3/8-16 Price: $8.93 |
| 18 |
1762138 |
WHEEL ANTISCALP NLAUD Not Available Price: |
| 19 |
1186393 |
NUT-HFLK 3/8-16 ZP Price: $2.63 |
| 20 |
1765339 |
BELT 1/2 X Not Available Price: |
| 21 |
1772383 |
V-BELT Not Available Price: |
| 22 |
1766052 |
ROD (LH) FRO Not Available Price: |
| 23 |
1766051 |
FRONT LIFT ROD (RH) Not Available Price: |
| 24 |
1752554 |
FRONT LIFT ROD END Not Available Price: |
| 25 |
1768862 |
DECAL-LIFT ROD Price: Call Us |
| 26 |
1768540 |
DECAL-BELT DRIVE Price: Call Us |
| 27 |
1734591 |
GRIP Not Available Price: |
| 28 |
1744491 |
DECAL CUTTING LIN Not Available Price: |
| 29 |
1739656 |
SCR-CARR 3 Not Available Price: |
| 31 |
1763407 |
DECAL DANGER Not Available Price: |
| 32 |
1747633 |
BRACKET-MOWER Not Available Price: |
| 33 |
1747635001 |
DEFLECTOR- Not Available Price: |
| 34 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 1733398. Price: $3.90 |
| 35 |
1772368 |
ASSEMBLY-SHEAV Not Available Price: |
| 36 |
736-0322 |
Flat Washer, .450 x 1.25 This part replaces 1736484. Price: $8.42 |
| 37 |
736-0171 |
Lock Washer, 7/16 This part replaces 1100244. Price: $3.86 |
| 38 |
710-0520 |
SCREW 3/8-16 x 1.50 This part replaces 1100047. Price: $3.93 |
| 39 |
756-0405 |
IDLER PULLEY This part replaces 1724488. Price: $66.84 |
| 40 |
1772204 |
GASKET-FOAM Price: Call Us |
| 41 |
716-0106 |
E-ring This part replaces 1177567. Price: $3.52 |
| 42 |
736-0237 |
Washer, Flat, .65 x 1.25 x .075 This part replaces 1107386. Price: $3.90 |
| 43 |
1185802 |
BEARING-FL Not Available Price: |
| 44 |
1772361 |
ASSM-IDLER Not Available Price: |
| 45 |
1756595 |
SPRING-EXTENSION Price: $16.27 |
| 46 |
1719367 |
CLEVIS PIN Not Available Price: |
| 47 |
1723478 |
HITCH PIN Not Available Price: |
| 49 |
714-0145 |
Click Pin This part replaces 1703011. Price: $4.42 |
| 50 |
1112587 |
PIN-CLEVIS .375 X .937 ZP Price: $4.29 |
| 51 |
1768125 |
IDLER PULLEY Not Available Price: |
| 52 |
1747631001 |
BAFFLE Not Available Price: |
| 53 |
710-0451 |
CARRIAGE BOLT 5/16-18 x .75 This part replaces 1186469. Price: $3.53 |
| 54 |
1765899 |
SPRING Not Available Price: |
| 55 |
1761797 |
ROD-IDLER Not Available Price: |
| 56 |
1772359 |
ASSM-IDLER Not Available Price: |
| 57 |
1749764 |
IDLER PULLEY Not Available Price: |
| 58 |
736-3052 |
Flat Washer, .406 x 1.0 x .105 This part replaces 1100256. Price: $4.02 |
| 59 |
1772308 |
SCR-HHC 7/ Not Available Price: |
| 60 |
1772367 |
ASSM-SHEAV Not Available Price: |
| 61 |
1747642 |
BEARING-UPPER SHIELD Price: Call Us |
| 62 |
1747644001 |
HOUSING-ARBOR TOP Price: Call Us |
| 63 |
1766189001 |
WHEEL GAGE ADJ. Not Available Price: |
| 64 |
753-04856A |
Deck Wheel, 5" Dia. This part replaces 1766087. Price: $18.23 |
| 65 |
1766342 |
SPACER GAGE WHEEL Not Available Price: |
| 66 |
710-3085 |
SCREW 3/8-16 x 3.50 GR5 This part replaces 1111615. Price: $3.90 |
| 67 |
1772363 |
ASSM-LEVER Not Available Price: |
| 68 |
1772371 |
BRACKET-LEVER Not Available Price: |
| 69 |
1100044 |
SCR-HHC 5/16-18X.75 GR 5 ZP Price: $3.76 |
| 70 |
1732499 |
NUT-TOP/LK 5/16-18 ZP Price: $3.49 |
| 72 |
1760096 |
BELT GUIDE Not Available Price: |
| 73 |
710-3011 |
Screw 3/8-16 X 2.25 Gr5 This part replaces 1100049. Price: $6.49 |
