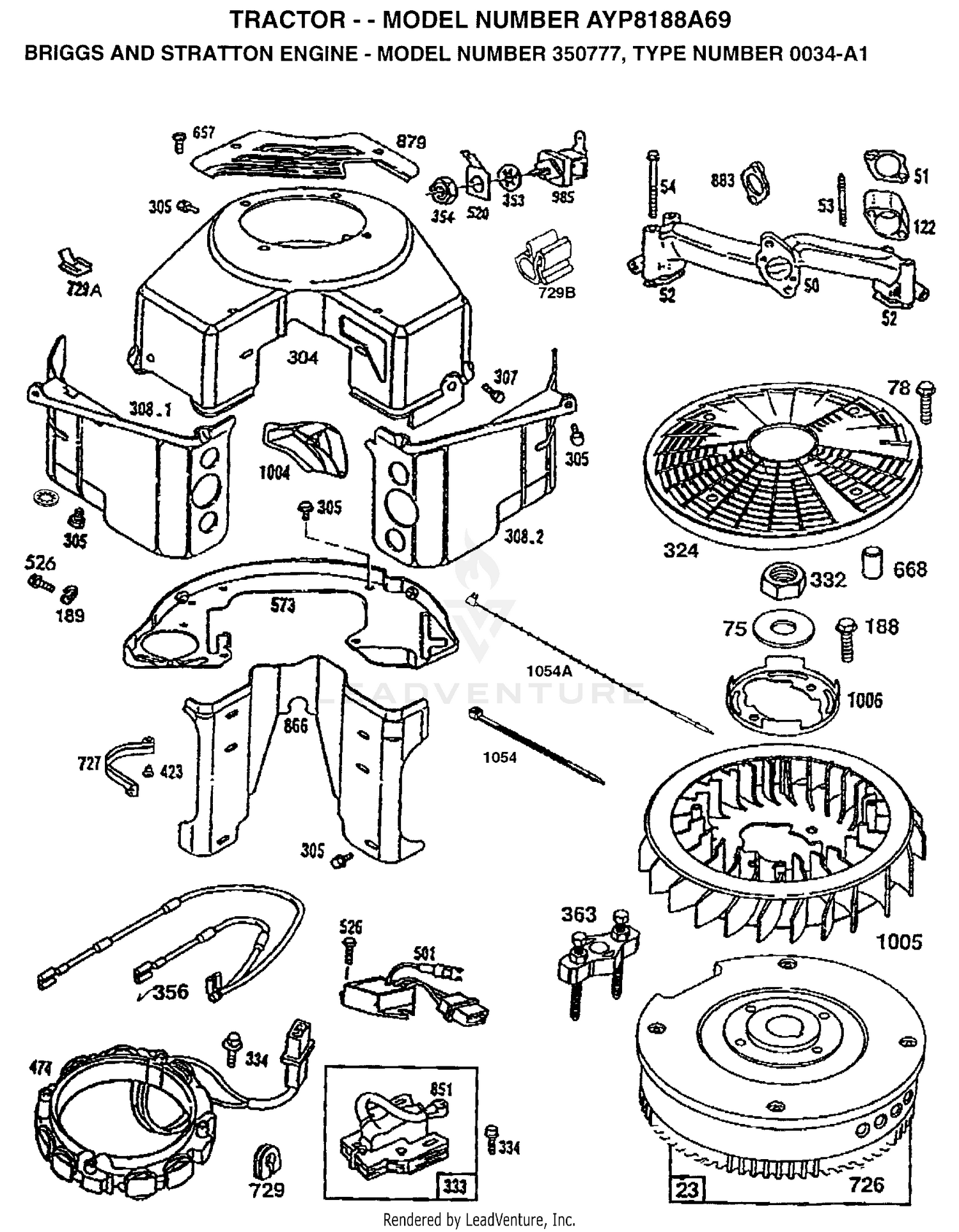

| Ref | Part Number | Description |
|---|
| 1 |
807787 |
CYLINDER ASSEMBLY Price: Call Us |
| 2 |
805107 |
BEARING, CYLINDER Price: Call Us |
| 3 |
805101 |
SEAL, OIL Price: Call Us |
| 7 |
805653 |
GASKET, CYLINDER HEAD Price: Call Us |
| 8 |
807795 |
BREATHER ASSEMBLY Price: Call Us |
| 9 |
805379 |
GASKET, BREATHER Price: Call Us |
| 10 |
805751 |
SCREW Price: Call Us |
| 11 |
805362 |
TUBE, BREATHER Price: Call Us |
| 12 |
805112 |
GASKET, CRANKCASE COVER Price: Call Us |
| 13 |
805097 |
SCREW, CYLINDER HEAD Price: Call Us |
| 15 |
805048 |
PLUG, OIL DRAIN Price: Call Us |
| 16 |
807779 |
CRANKSHAFT Price: Call Us |
| 16 |
94196 |
KEY, TIMING GEAR Price: Call Us |
| 18 |
807638 |
COVER ASSEMBLY, CRANKCASE Price: Call Us |
| 20 |
805049 |
SEAL, OIL Price: Call Us |
| 22 |
805696 |
SCREW, CRANKCASE COVER Price: Call Us |
| 23 |
808132 |
FLYWHEEL, MAGNETO Price: Call Us |
| 24 |
805016 |
KEY, FLYWHEEL Price: Call Us |
| 25 |
807888 |
PISTON ASSEMBLY, STANDARD SIZE Price: Call Us |
| 25 |
807991 |
PISTON ASSEMBLY Price: Call Us |
| 25 |
807992 |
PISTON ASSEMBLY Price: Call Us |
| 25 |
807993 |
PISTON ASSEMBLY Price: Call Us |
| 26 |
807889 |
RING SET, PISTON, STANDARD SIZE Price: Call Us |
| 26 |
807994 |
RING SET, PISTON Price: Call Us |
| 26 |
807995 |
RING SET, PISTON Price: Call Us |
| 26 |
807996 |
RING SET, PISTON Price: Call Us |
| 27 |
805099 |
LOCK, PISTON PIN Price: Call Us |
| 28 |
807886 |
PIN ASSEMBLY, PISTON, STANDARD Price: Call Us |
| 29 |
807900 |
ROD ASSEMBLY, CONNECTING Price: Call Us |
| 32 |
805395 |
SCREW, CONNECTING ROD Price: Call Us |
| 33 |
805089 |
VALVE, EXHAUST Price: Call Us |
| 34 |
805090 |
VALVE, INTAKE Price: Call Us |
| 35 |
805078 |
SPRING, VALVE Price: Call Us |
| 37 |
805506 |
COVER, STARTER Price: Call Us |
| 40 |
805092 |
RETAINER, VALVE SPRING Price: Call Us |
| 42 |
805161 |
RETAINER, VALVE Price: Call Us |
| 45 |
262679 |
TAPPET, VALVE Price: Call Us |
| 46 |
807542 |
GEAR, CAM Price: Call Us |
| 50 |
805772 |
MANIFOLD, INTAKE Price: Call Us |
| 51 |
805700 |
GASKET, CARBURETOR MOUNTING Price: Call Us |
| 52 |
805023 |
GASKET, INTAKE MANIFOLD Price: Call Us |
| 53 |
805669 |
SCREW, SEMS Price: Call Us |
| 54 |
805006 |
SCREW, SEMS Price: Call Us |
| 75 |
805007 |
WASHER, SPRING Price: Call Us |
| 78 |
805447 |
SCREW, SEMS Price: Call Us |
| 84 |
914889 |
PLUG, PIPE Price: Call Us |
| 87 |
805054 |
SEAL, GOVERNOR SHAFT Price: Call Us |
| 95 |
805561 |
SCREW, VALVE MOUNTING Price: Call Us |
| 95A |
94466 |
SCREW, VALVE MOUNTING Price: Call Us |
| 98 |
807705 |
SCREW, THROTTLE ADJUSTING Price: Call Us |
| 104 |
805586 |
PIN, FLOAT HINGE Price: Call Us |
| 105 |
807706 |
VALVE, FUEL INLET Price: Call Us |
| 108 |
805562 |
VALVE, CHOKE Price: Call Us |
| 116 |
805058 |
O-RING, OIL PUMP Price: Call Us |
| 116A |
805198 |
O-RING, CRANKCASE COVER Price: Call Us |
| 116B |
224531 |
WASHER, BOWL Price: Call Us |
| 117 |
806109 |
JET, MAIN Price: Call Us |
| 118 |
808374 |
VALVE, IDLE ADJ NEEDLE Price: Call Us |
| 121 |
807708 |
CARBURETOR OVERHAUL KIT Price: Call Us |
| 122 |
805674 |
SPACER, CARBURETOR Price: Call Us |
| 125 |
808372 |
CARBURETOR ASSEMBLY Price: Call Us |
| 127 |
805570 |
PLUG, WELCH Price: Call Us |
| 127A |
805571 |
PLUG, WELCH Price: Call Us |
| 130 |
808572 |
VALVE, THROTTLE Price: Call Us |
| 131 |
808375 |
SHAFT, THROTTLE ASM Price: Call Us |
| 133 |
807710 |
FLOAT ASSEMBLY, CARBURETOR Price: Call Us |
| 141 |
807711 |
SHAFT, CHOKE Price: Call Us |
| 142 |
806110 |
NOZZLE, CARBURETOR Price: Call Us |
| 161 |
807857 |
BASE ASSEMBLY, AIR CLEANER Price: Call Us |
| 166 |
805343 |
STUD, ROCKER ARM Price: Call Us |
| 166A |
805073 |
STUD, OIL FILTER ADAPTER Price: Call Us |
| 167 |
805420 |
WASHER, VALVE COVER Price: Call Us |
| 171 |
805019 |
NUT, NYLOCK Price: Call Us |
| 187 |
296004 |
PIPE, FUEL Price: Call Us |
| 187 |
393815 |
HOSE (CUT TO SUIT) Price: Call Us |
| 188 |
94627 |
SCREW, SEMS 3/4" Price: Call Us |
| 188A |
805247 |
SCREW, STARTER MOUNTING Price: Call Us |
| 189 |
805449 |
LOCK WASHER Price: Call Us |
| 192 |
807623 |
SCREW, VALVE ADJUSTMENT Price: Call Us |
| 201 |
805480 |
LINK, GOVERNOR Price: Call Us |
| 209 |
805462 |
SPRING, GOVERNOR Price: Call Us |
| 209A |
805453 |
SPRING, GOVERNED IDLE Price: Call Us |
| 216 |
805439 |
LINK, CHOKE Price: Call Us |
| 222 |
808195 |
BRACKET, GOVERNOR CONTROL Price: Call Us |
| 227 |
807528 |
LEVER ASSEMBLY, GOVERNOR Price: Call Us |
| 232 |
805465 |
SPRING, GOVERNOR LINK Price: Call Us |
| 240 |
493629 |
FILTER, FUEL (IN FUEL LINE TO TANK) Price: Call Us |
| 243 |
805964 |
SCREEN, OIL Price: Call Us |
| 254 |
807713 |
DRAIN, CARBURETOR BOWL Price: Call Us |
| 265 |
221535 |
CLAMP Price: Call Us |
| 271 |
808145 |
BRACKET, CHOKE CONTROL Price: Call Us |
| 277 |
805018 |
WASHER Price: Call Us |
| 304 |
808220 |
HOUSING, BLOWER, BLACK Price: Call Us |
| 305 |
805406 |
SCREW, SEMS Price: Call Us |
| 307 |
805025 |
SCREW, SEMS Price: Call Us |
| 309 |
494990 |
MOTOR, STARTING Price: Call Us |
| 310 |
94004 |
BOLT Price: Call Us |
| 324 |
494439 |
SCREEN, ROTATING Price: Call Us |
| 332 |
806028 |
NUT, HEX Price: Call Us |
| 333 |
492341 |
ARMATURE, MAGNETO Price: Call Us |
| 334 |
806104 |
SCREW, MOUNTING Price: Call Us |
| 337 |
491055 |
PLUG, SPARK Price: Call Us |
| 351 |
805169 |
SCREW Price: Call Us |
| 353 |
94791 |
WASHER, LOCK Price: Call Us |
| 353A |
806101 |
WASHER, LOCK, INTERNAL TOOTH Price: Call Us |
| 354 |
90576 |
NUT, HEX Price: Call Us |
| 354A |
810078 |
NUT, HEX WASHER HEAD Price: Call Us |
| 356 |
493792 |
WIRE ASSEMBLY, GROUND Price: Call Us |
| 358 |
807887 |
GASKET SET Price: Call Us |
| 363 |
19203 |
PULLER, FLYWHEEL Price: Call Us |
| 387 |
808322 |
PUMP, FUEL Price: Call Us |
| 423 |
805260 |
SCREW, SEMS Price: Call Us |
| 445 |
394018 |
CARTRIDGE, AIR CLEANER Price: Call Us |
| 467 |
491875 |
KNOB, AIR CLEANER Price: Call Us |
| 474 |
393295 |
STATOR, ALTERNATOR Price: Call Us |
| 501 |
394890 |
REGULATOR, ALTERNATOR Price: Call Us |
| 510 |
495878 |
STARTER DRIVE GROUP Price: Call Us |
| 513 |
398003 |
CLUTCH ASSEMBLY Price: Call Us |
| 520 |
93722 |
TERMINAL, SPADE Price: Call Us |
| 523 |
807985 |
DIPSTICK Price: Call Us |
| 524 |
805011 |
SEAL, FILLER TUBE Price: Call Us |
| 525 |
807611 |
TUBE, OIL FILLER Price: Call Us |
| 526 |
805448 |
SCREW, REGULATOR MOUNTING Price: Call Us |
| 527 |
223167 |
CLAMP, FUEL PUMP Price: Call Us |
| 535 |
272490 |
ELEMENT, FILTER Price: Call Us |
| 537 |
805655 |
GASKET, AIR CLEANER Price: Call Us |
| 544 |
490309 |
ARMATURE ASSEMBLY Price: Call Us |
| 552 |
805412 |
BUSHING, GOVERNOR SHAFT Price: Call Us |
| 552A |
805413 |
BUSHING, GOVERNOR SHAFT Price: Call Us |
| 562 |
805381 |
BOLT Price: Call Us |
| 572 |
805197 |
BAFFLE, BREATHER Price: Call Us |
| 573 |
807663 |
BACK PLATE ASSEMBLY Price: Call Us |
| 592 |
805383 |
NUT, HEX Price: Call Us |
| 601 |
93053 |
CLAMP, HOSE, GREEN Price: Call Us |
| 613 |
805158 |
SCREW, SEMS Price: Call Us |
| 614 |
806096 |
PIN, COTTER Price: Call Us |
| 615 |
808578 |
RETAINER Price: Call Us |
| 615A |
808577 |
RETAINER Price: Call Us |
| 616 |
807596 |
FORK, GOVERNOR Price: Call Us |
| 634 |
805416 |
WASHER, GOVERNOR SHAFT Price: Call Us |
| 634A |
805580 |
COLLAR, CHOKE Price: Call Us |
| 634B |
805574 |
COLLAR, THROTTLE Price: Call Us |
| 634C |
806079 |
SEAL, THROTTLE SHAFT Price: Call Us |
| 634D |
805576 |
WASHER, THROTTLE Price: Call Us |
| 635 |
805529 |
ELBOW, SPARK PLUG Price: Call Us |
| 642 |
807862 |
COVER ASSEMBLY, AIR CLEANER Price: Call Us |
| 643 |
805631 |
PLATE, AIR FILTER Price: Call Us |
| 657 |
805009 |
SCREW, SEMS Price: Call Us |
| 668 |
805402 |
SPACER, ROTATING SCREEN Price: Call Us |
| 718 |
805103 |
DOWEL, CRANKCASE Price: Call Us |
| 722 |
805483 |
SEAL, BREATHER SCREW Price: Call Us |
| 726 |
807805 |
GEAR, FLYWHEEL RING Price: Call Us |
| 727 |
805505 |
SHIELD, STARTER Price: Call Us |
| 729 |
805641 |
GROMMET, IGNITION CABLE Price: Call Us |
| 729A |
224356 |
CLIP, DEBRIS Price: Call Us |
| 729B |
280470 |
CLIP, WIRE Price: Call Us |
| 741 |
805675 |
GEAR, TIMING Price: Call Us |
| 783 |
280104 |
GEAR, STARTER Price: Call Us |
| 788 |
807685 |
BRACKET, FUEL PUMP Price: Call Us |
| 801 |
394856 |
CAP, DRIVE Price: Call Us |
| 802 |
494988 |
CAP ASSEMBLY Price: Call Us |
| 803 |
494205 |
HOUSING ASSEMBLY Price: Call Us |
| 819 |
805057 |
SCREW, SEMS Price: Call Us |
| 823 |
805317 |
SCREW, MOUNTING Price: Call Us |
| 842 |
270920 |
SEAL, OIL FILLER CAP Price: Call Us |
| 851 |
473880 |
TERMINAL, IGNITION CABLE Price: Call Us |
| 862 |
807859 |
BRACKET, AIR CLEANER Price: Call Us |
| 864 |
805083 |
LINER, EXHAUST PORT Price: Call Us |
| 866 |
805738 |
VALLEY, COVER, AIR GUIDE Price: Call Us |
| 868 |
805094 |
SEAL, VALVE GUIDE Price: Call Us |
| 869 |
805085 |
SEAT, INTAKE VALVE Price: Call Us |
| 870 |
805086 |
SEAT, EXHAUST VALVE Price: Call Us |
| 871 |
805084 |
GUIDE, VALVE Price: Call Us |
| 876 |
495877 |
RETAINER AND PIN Price: Call Us |
| 879 |
805841 |
COVER Price: Call Us |
| 883 |
805024 |
GASKET, EXHAUST MANIFOLD Price: Call Us |
| 896 |
94288 |
ROLL PIN Price: Call Us |
| 918 |
393815 |
HOSE (CUT TO SUIT) Price: Call Us |
| 947 |
808154 |
SOLENOID Price: Call Us |
| 975 |
807913 |
BOWL, FUEL ASSEMBLY Price: Call Us |
| 977 |
807916 |
GASKET SET, CARBURETOR Price: Call Us |
| 978 |
805250 |
GASKET, OIL FILTER ADAPTOR Price: Call Us |
| 982 |
805030 |
SCREW, SEMS Price: Call Us |
| 985 |
398525 |
INSULATOR ASSEMBLY Price: Call Us |
| 1004 |
805632 |
TUBE, AIR INLET Price: Call Us |
| 1005 |
808082 |
FAN, FLYWHEEL Price: Call Us |
| 1006 |
224413 |
RETAINER, FAN Price: Call Us |
| 1013 |
805581 |
SEAL, CHOKE SHAFT Price: Call Us |
| 1014 |
807963 |
SHIELD, CARBURETOR Price: Call Us |
| 1022 |
806039 |
GASKET, VALVE COVER Price: Call Us |
| 1023 |
805100 |
COVER, VALVE Price: Call Us |
| 1023 |
807665 |
COVER, VALVE Price: Call Us |
| 1024 |
807546 |
OIL PUMP ASSEMBLY Price: Call Us |
| 1025 |
805313 |
SLIDER, GOVERNOR Price: Call Us |
| 1026 |
805352 |
ROD, PUSH, INTAKE Price: Call Us |
| 1026A |
805617 |
ROD, PUSH, EXHAUST Price: Call Us |
| 1027 |
492932 |
FILTER, OIL Price: Call Us |
| 1028 |
805292 |
ADAPTER, OIL FILTER Price: Call Us |
| 1029 |
808096 |
ARM, ROCKER Price: Call Us |
| 1030 |
805342 |
SHAFT, ROCKER ARM Price: Call Us |
| 1031 |
805341 |
SUPPORT, ROCKER ARM Price: Call Us |
| 1033 |
807910 |
OVERHAUL KIT, VALVE Price: Call Us |
| 1036 |
807688 |
BREATHER GASKET SET Price: Call Us |
| 1037 |
807217 |
BALL, CHOKE LOCATOR Price: Call Us |
| 1054 |
280275 |
TIE, CABLE Price: Call Us |
| 1054A |
270723 |
TIE, CABLE Price: Call Us |
| 1058 |
272104 |
MANUAL, OPERATOR'S Price: Call Us |
