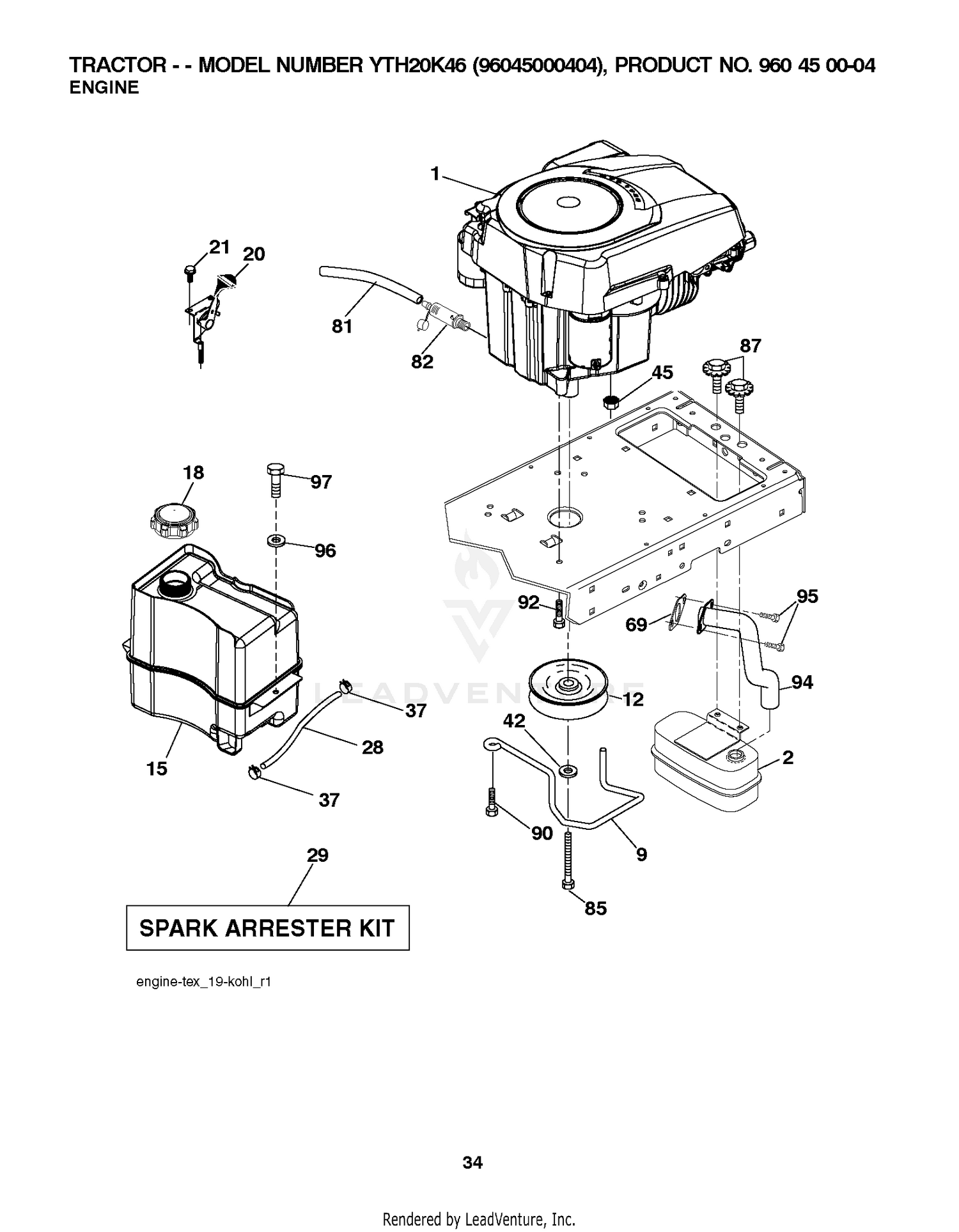

| Ref | Part Number | Description |
|---|
| 2 |
105-3992-03 |
BRACKET-BULKHEAD Price: $45.94 |
| 2 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S Price: $39.99 |
| 4 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 5 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 6 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 7 |
140-6431 |
PIVOT PIN ASM This part replaces 95-7158. Price: $37.92 |
| 8 |
87-3470 |
BUMPER Price: $18.89 |
| 9 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 9 |
532194319 |
KEEPER.BELT.ENGINE.3.25 (3 2) Price: $11.99 |
| 10 |
63-7400 |
WASHER-REBOUND Price: $1.70 |
| 11 |
105-9827 |
SHAFT Price: $77.02 |
| 12 |
136-3385 |
NO.2 LIFTARM ASM This part replaces 105-9202. Price: $800.50 |
| 12 |
532405140 |
PULLEY.ENGINE.5.0.PD Price: $44.99 |
| 13 |
136-3387 |
NO. 3 LIFTARM ASM This part replaces 105-9203. Price: $800.50 |
| 14 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 15 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 15 |
581290101 |
TANK.ASSEMBL.2.5GAL.NON-EPA This part replaces 532407489. Price: $99.99 |
| 16 |
127-6428 |
LIFT CYLINDER ASM This part replaces 107-1978. Price: $655.93 |
| 17 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 18 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532197725. Price: $22.99 |
| 19 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 20 |
532401508 |
CONTROL.TH/CK.COBRA.KO Price: $24.99 |
| 20 |
92-7548 |
PIN-CYLINDER Price: $16.62 |
| 21 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 21 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 23 |
131-4201 |
PIN-PIVOT This part replaces 104-5525. Price: $20.50 |
| 24 |
323-7 |
SCREW-HH Price: $0.65 |
| 25 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 26 |
323-4 |
SCREW-HH Price: $1.02 |
| 27 |
105-9839 |
STOP-ROTATION, NO. 2 AND 3 Price: $67.21 |
| 28 |
3245-1 |
SCREW-SET, HSH Price: $0.54 |
| 28 |
587044822 |
HOSE.1/4".LOW.PERM.FUEL.LN.22" This part replaces 532401137. Price: $9.99 |
| 29 |
131-7765-0P |
SUPPORT-BUMPER, REAR This part replaces 119-3941-03. Price: $77.14 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 31 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 33 |
136-3510 |
CARRIER FRAME ASM This part replaces 115-3453. Price: $664.28 |
| 34 |
112-9900-03 |
GUARD-FOOT Price: $82.81 |
| 35 |
323-52 |
SCREW-HH Price: $3.63 |
| 36 |
93-8806 |
WASHER-HARDENED Price: $1.62 |
| 37 |
105-9823 |
BUSHING-CARRIER Price: $5.52 |
| 38 |
105-9822 |
SPACER Price: $3.16 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 69 |
532185909 |
GASKET.EXHAUST.KOHLER Price: $7.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
537171877 |
BOLT 5/1618UNC X 3/4 W/ SEMS Price: $1.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 94 |
583955301 |
TUBE.EXHAUST.KOHLER.COURAGE This part replaces 532188654. Price: $27.99 |
| 95 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
