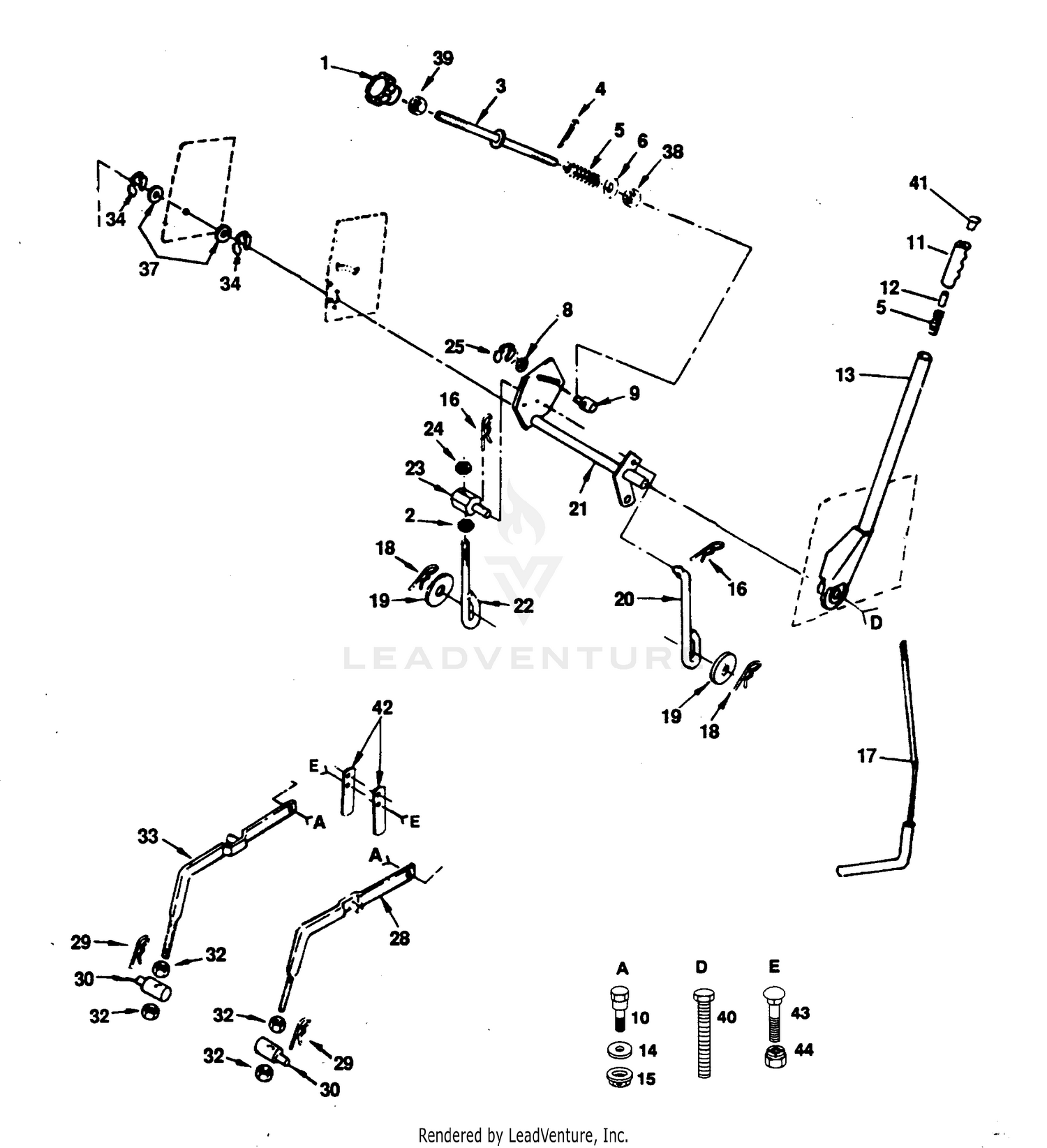

| Ref | Part Number | Description |
|---|
| 1 |
532121891 |
Knob, Depth Adjustment (AYP part number) Price: $3.99 |
| 2 |
873610700 |
NUT.ASF.HEX.7/16 This part replaces 873360700. Price: $3.99 |
| 3 |
532110729 |
Rod, Adjust, Lift (AYP part number) Price: $18.99 |
| 4 |
876020308 |
Pin, Cotter 3/32 x 1/2 (AYP part number) Price: $1.99 |
| 5 |
532002876 |
SPRING This part replaces 532124874. Price: $3.99 |
| 6 |
819131016 |
Washer 13/32 x 5/8 x 16 Ga. (AYP part number) Price: $3.99 |
| 7 |
28-1060 |
DISCONTINUED Price: Call Us |
| 8 |
28-0930 |
THRUST WASHER Price: $130.68 |
| 8 |
819151216 |
Washer 15/32 x 3/4 x 16 Ga. (AYP part number) Price: Call Us |
| 9 |
532110810 |
Trunnion Price: $14.99 |
| 10 |
28-0870 |
DISCONTINUED Price: Call Us |
| 10 |
532105848 |
Bolt, Shoulder 3/8-16 (AYP part number) Price: $2.02 |
| 11 |
11-5790 |
KEY-SQUARE Price: $17.50 |
| 11 |
532109413 |
Grip Handle (AYP part number) Price: $2.99 |
| 12 |
28-0940 |
DISCONTINUED Price: Call Us |
| 12 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532122364. Price: $5.99 |
| 13 |
28-0860 |
BEARING Price: $82.16 |
| 14 |
28-1050 |
DISCONTINUED Price: Call Us |
| 14 |
532110739 |
Spring Washer (AYP part number) Price: $2.99 |
| 15 |
873680600 |
LOCKNUT This part replaces 873980600. Price: $1.99 |
| 16 |
28-0880 |
DISCONTINUED Price: Call Us |
| 16 |
532124670 |
Retainer, Spring (AYP part number) Price: $5.99 |
| 17 |
28-0890 |
DISCONTINUED Price: Call Us |
| 17 |
532121006 |
Rod, Lever (AYP part number) Price: $19.99 |
| 18 |
32140-55 |
DISCONTINUED This part replaces 3211-33. Price: Call Us |
| 18 |
532004921 |
Spring, Retainer (AYP part number) This part replaces 532124961. Price: $3.99 |
| 19 |
532052160 |
Washer (AYP part number) This part replaces 819171516. Price: $3.99 |
| 20 |
532110029 |
Link, Lift (AYP part number) Price: $3.45 |
| 21 |
532131925 |
Shaft, Lift (AYP part number) Price: $3.33 |
| 22 |
28-1100 |
COMMUTATOR SERVICE AS Price: $690.95 |
| 22 |
532110448 |
Link Lift, Adjust (AYP part number) Price: $7.99 |
| 23 |
532110447 |
Trunnion, Lift (AYP part number) Price: $9.99 |
| 24 |
873610700 |
NUT.ASF.HEX.7/16 This part replaces 873710700. Price: $3.99 |
| 25 |
812000037 |
Klip Ring (AYP part number) Price: $3.99 |
| 28 |
532121598 |
Arm, Suspension R.H. (AYP part number) Price: $14.99 |
| 29 |
532009135 |
Retainer, Spring (AYP part number) This part replaces 532124960. Price: $2.99 |
| 30 |
532175689 |
TRUNNION This part replaces 532106308. Price: $2.99 |
| 32 |
873350800 |
NUT.HEX.JAM.1/2-13 This part replaces 873220800. Price: $1.99 |
| 33 |
532121599 |
Arm, Suspension, L.H. (AYP part number) Price: $21.14 |
| 34 |
812000022 |
E - Ring, Truarc (AYP part number) Price: $3.99 |
| 37 |
819292016 |
Washer 29/32 x 1-1/4 x 16 Ga. (AYP part number) Price: $3.99 |
| 38 |
532110807 |
Nut, Special (AYP part number) Price: $3.99 |
| 39 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $3.99 |
| 40 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 874780624. Price: $3.99 |
| 41 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 42 |
532121252 |
Upstop, Mower (AYP part number) Price: $2.99 |
| 43 |
872110608 |
BOLT D This part replaces 872140608. Price: $3.99 |
