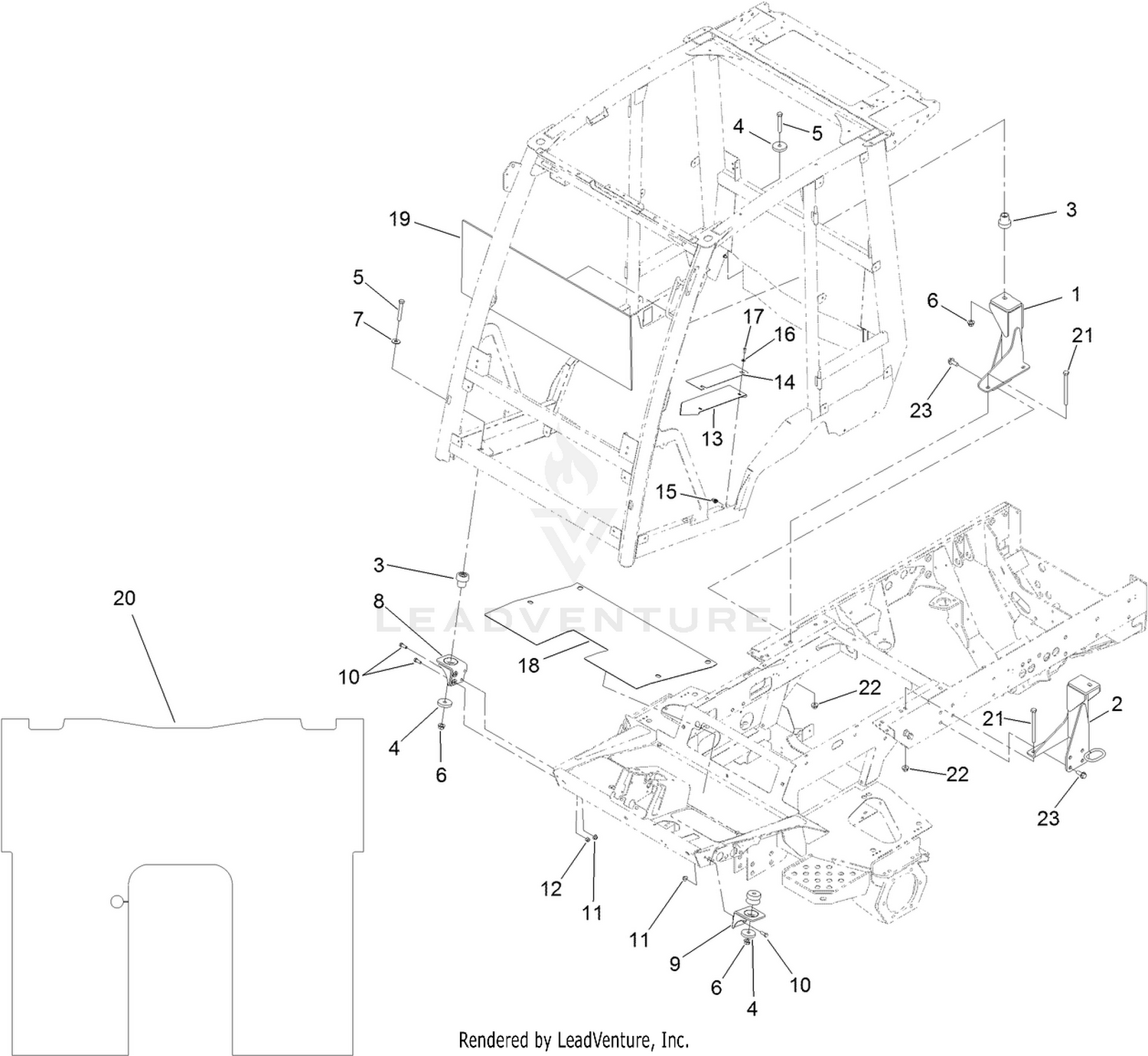

Frame Mount Assembly
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 130-0330-03 | RH REAR MOUNT ASM Price: $218.54 |
| 2 | 130-0331-03 | LH REAR MOUNT ASM Price: $218.54 |
| 3 | 110-5954 | MOUNT-CENTER, BONDED Price: $65.28 |
| 4 | 115-5519 | WASHER-PLAIN Price: $7.28 |
| 5 | 112-7264 | SCREW-HH Price: $3.11 |
| 6 | 99-5107 | NUT-LOCK Price: $1.77 |
| 7 | 3256-6 | WASHER-FLAT Price: $0.34 |
| 8 | 130-0379-03 | RH FRONT MOUNT ASM Price: $222.97 |
| 9 | 130-0380-03 | LH FRONT MOUNT ASM Price: $235.12 |
| 10 | 323-6 | SCREW-HH Price: $0.66 |
| 11 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 12 | 3296-39 | NUT-LOCK, NI Price: $2.29 |
| 13 | 132-3255-03 | BRACKET-STEP Price: $49.94 |
| 14 | 132-3256 | PAD-ADHESIVE Price: $12.48 |
| 15 | 107069 | CLIP Price: $1.79 |
| 16 | 3256-1 | WASHER-FLAT Price: $0.39 |
| 17 | 3274-69 | SCREW-HSBH Price: $0.43 |
| 18 | 132-3254 | TREAD-FLOOR Price: $124.82 |
| 19 | 132-3261 | PANEL-UPHOLSTERY, REAR Price: $104.02 |
| 20 | 132-3265 | BLANKET-INSULATION Price: $589.15 |
| 21 | 325-20 | SCREW-HH Price: $6.29 |
| 22 | 32128-49 | NUT-HHF Price: $1.04 |
