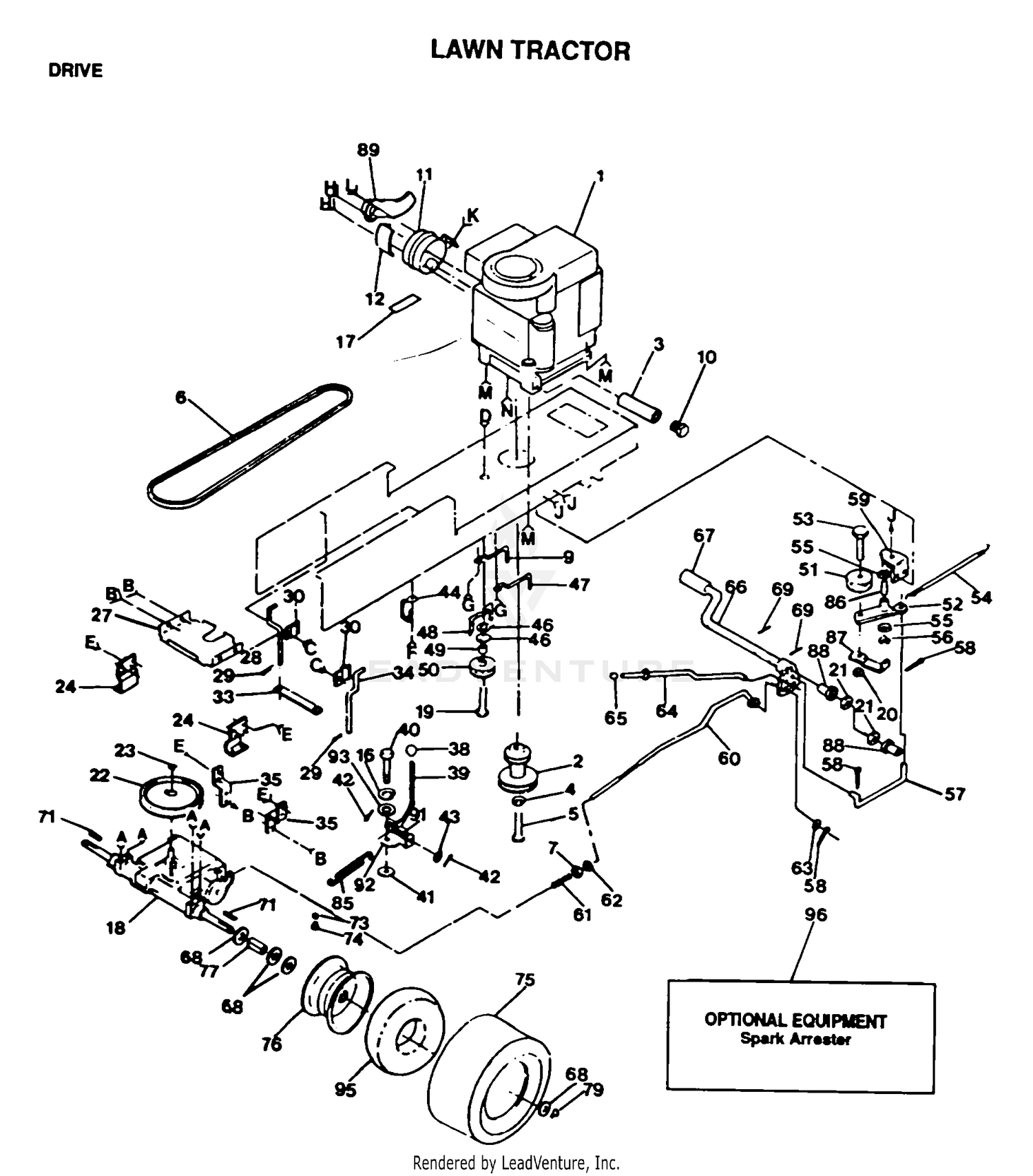

| Ref | Part Number | Description |
|---|
| 1 |
121797X |
ENGINE Price: Call Us |
| 1 |
33115-016 |
SCREW-HH Price: $0.75 |
| 2 |
104-5492-0P |
BRACKET-FILTER HEAD This part replaces 104-5492-03. Price: $91.72 |
| 2 |
105731X |
SUB= 137326 Price: Call Us |
| 3 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 4 |
10040700 |
LOCKWASHER Price: Call Us |
| 4 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 5 |
104-5493-03 |
BRACKET-MOUNT, VALVE Price: $43.44 |
| 5 |
74770720 |
SUB= 71130720 Price: Call Us |
| 6 |
125907X |
BELT-V.90.0.GD.DR Price: Call Us |
| 6 |
32128-20 |
NUT-HF Price: $0.99 |
| 7 |
340-148 |
FITTING-TEE Price: $186.40 |
| 7 |
73800600 |
NUT Price: Call Us |
| 8 |
93-2242 |
FILTER-OIL Price: $290.90 |
| 9 |
104-5471-03 |
BRACKET-VALVE, FILTER Price: $33.44 |
| 9 |
121218X |
KEEPER BELT ENGLH Price: Call Us |
| 10 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 11 |
101273M |
MUFFLER LTV Price: Call Us |
| 11 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 12 |
101159L |
SHIELD HEAT LTV Price: Call Us |
| 12 |
323-12 |
SCREW-HH This part replaces 322-48. Price: $1.14 |
| 13 |
104-5467-03 |
BRACKET-MOUNT, VALVE Price: $48.15 |
| 15 |
32128-33 |
NUT-HF Price: $0.25 |
| 16 |
10040400 |
LOCKWASHER Price: Call Us |
| 16 |
321-14 |
SCREW-HH Price: $0.55 |
| 17 |
104-5516-0P |
SUPPORT-TUBE This part replaces 104-5516-01. Price: $9.23 |
| 17 |
108761X |
DECAL Price: Call Us |
| 18 |
120896X |
SUB= 142594 Price: Call Us |
| 18 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 19 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 19 |
74760644 |
BOLT Price: Call Us |
| 20 |
353-990 |
PLUG ASM Price: $10.01 |
| 20 |
73680600 |
SUB= 73690600 Price: Call Us |
| 21 |
19211616 |
WASHER LT Price: Call Us |
| 22 |
104-5515 |
MANIFOLD-JUNCTION, LIFT Price: $410.01 |
| 22 |
123666X |
PULLEY TRANS Price: Call Us |
| 23 |
12000028 |
SUB= 2267J Price: Call Us |
| 24 |
109167X |
BRACKET LT Price: Call Us |
| 24 |
2412-150 |
CLIP-J Price: $1.63 |
| 25 |
105-9868 |
DISCONTINUED Price: Call Us |
| 26 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 27 |
108171X |
BRKT SUPPORT LT Price: Call Us |
| 27 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 28 |
123662X |
KEEPER BELT LH Price: Call Us |
| 29 |
4921H |
SPRING.RETAINER Price: Call Us |
| 30 |
106190X |
CLAMP LT Price: Call Us |
| 33 |
123770X |
STRAP LOCATOR Price: Call Us |
| 34 |
123663X |
KEEPER BELTRH Price: Call Us |
| 35 |
121520X |
STRAP TORQUE Price: Call Us |
| 38 |
106279X |
CONTROL KNOB LT Price: Call Us |
| 39 |
124461X |
ROD SHIFTER Price: Call Us |
| 40 |
71040412 |
SUB= 74550412 Price: Call Us |
| 41 |
105701X |
WASH-SHFT PLT LT Price: Call Us |
| 42 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 43 |
19151216 |
WASHER Price: Call Us |
| 44 |
104777X |
SUB= 140312 Price: Call Us |
| 46 |
19131312 |
WASHER Price: Call Us |
| 48 |
109070X |
BELT KEEPER LT Price: Call Us |
| 49 |
4470J |
SPACER T Price: Call Us |
| 50 |
123674X |
PULLEY.IDLER.FLAT Price: Call Us |
| 51 |
123766X |
SUB= 139245 Price: Call Us |
| 52 |
123789X |
ARM IDLER Price: Call Us |
| 53 |
74760624 |
SUB= 74930624 Price: Call Us |
| 55 |
110812X |
WASHER LT Price: Call Us |
| 56 |
12000039 |
KLIP RING Price: Call Us |
| 58 |
76020412 |
COTTER PIN Price: Call Us |
| 59 |
123102X |
BRKT ASM Price: Call Us |
| 60 |
110437X |
BRAKE ROD LT Price: Call Us |
| 61 |
106888X |
SPRING ROD LT Price: Call Us |
| 62 |
73350600 |
NUT Price: Call Us |
| 63 |
19131316 |
WASHER Price: Call Us |
| 64 |
125638X |
SUB= 128904 Price: Call Us |
| 65 |
7733J |
SUB= 71673 Price: Call Us |
| 66 |
122424X |
SUB= 149001 Price: Call Us |
| 67 |
8883R |
PEDAL COVER T Price: Call Us |
| 68 |
121749X |
WASHER Price: Call Us |
| 69 |
1572H |
SUB= 2882J Price: Call Us |
| 71 |
123583X |
SQUARE KEY Price: Call Us |
| 73 |
59192 |
VALVE CAP Price: Call Us |
| 74 |
65139 |
VALVE STEM LT Price: Call Us |
| 75 |
126182X |
TIRE Price: Call Us |
| 76 |
124160X311 |
RIM Price: Call Us |
| 77 |
109502X |
SPACER LT Price: Call Us |
| 79 |
12000001 |
E-RING LT Price: Call Us |
| 85 |
110422X |
SUB= 146682 Price: Call Us |
| 87 |
123205X |
RETAIN BELT Price: Call Us |
| 88 |
120183X |
NYLON BEARING Price: Call Us |
| 89 |
108767X |
DEFLECTOR MUFFLER Price: Call Us |
| 92 |
106919X |
PLATE SHIFT LT Price: Call Us |
| 93 |
19091210 |
WASHER LT Price: Call Us |
| 95 |
7152J |
TUBE.18X9.5-8 Price: Call Us |
