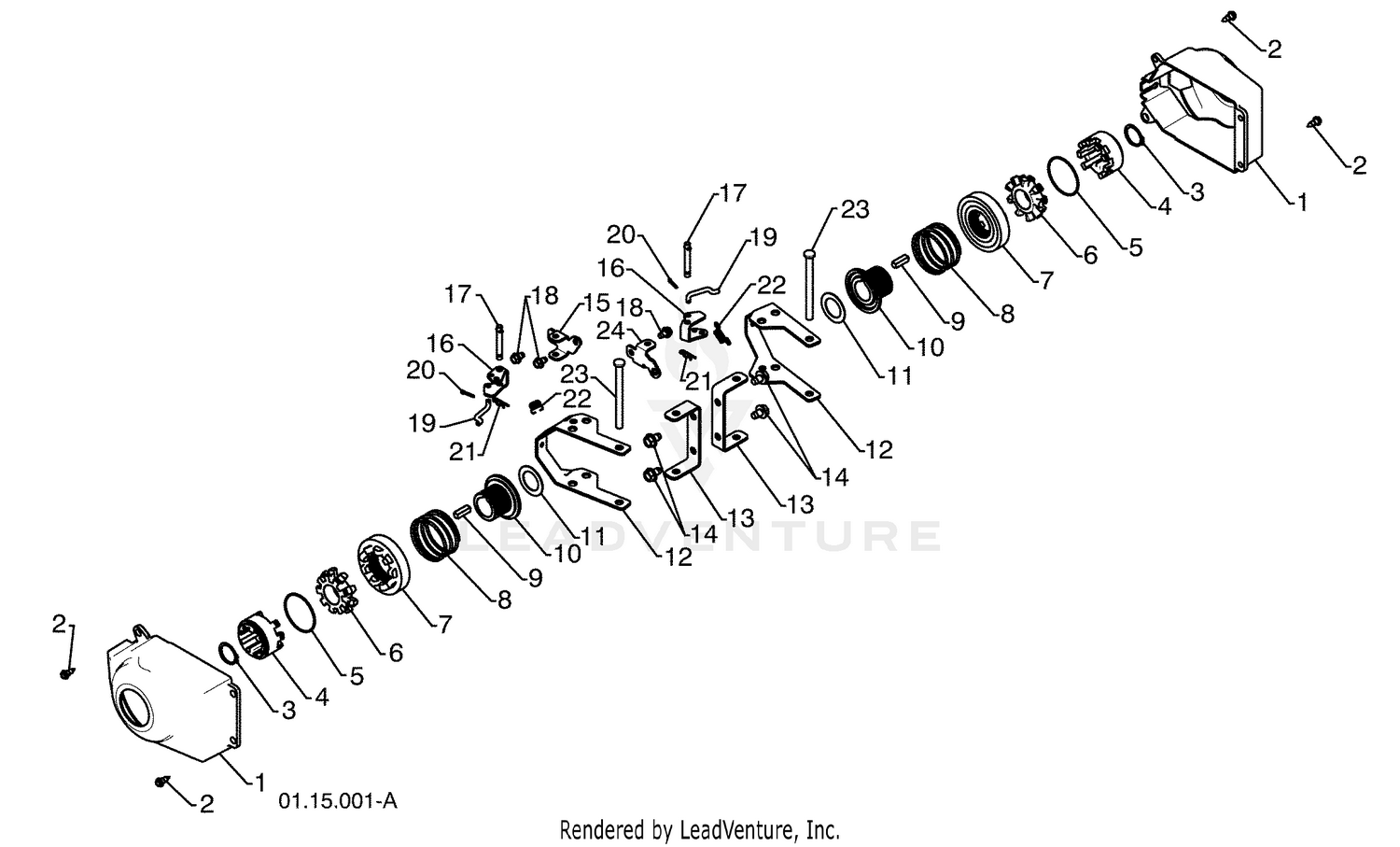

| Ref | Part Number | Description |
|---|
| 1 |
3217-7 |
NUT-HEX Price: $0.28 |
| 1 |
532405161 |
COVER, POWER STEERING Price: $8.99 |
| 2 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 2 |
594975601 |
Screws This part replaces 532184471. Price: $1.99 |
| 3 |
812000045 |
RING Price: $5.99 |
| 3 |
92-9701 |
SHAFT-CRUISE Price: $101.17 |
| 4 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 4 |
581645001 |
DRIVER.WHEEL This part replaces 532192126. Price: $27.99 |
| 5 |
42-1720 |
CORE-FIELD, COIL Price: $387.41 |
| 5 |
532182466 |
RING, WIRE RETAINER Price: $3.99 |
| 6 |
321-3 |
SCREW-HH Price: $0.28 |
| 6 |
532187622 |
LOBE WHEEL Price: $32.99 |
| 7 |
581644901 |
SLIDE.CLUTCH.SNOW This part replaces 532194941. Price: $34.99 |
| 8 |
532179139 |
SPRING, CLUTCH SLIDE Price: $4.99 |
| 9 |
532189282 |
KEY, SQUARE 1/4 X .875 Price: $4.99 |
| 9 |
99-5348 |
PLATE-CLUTCH Price: $61.10 |
| 10 |
43-6320 |
COLLAR Price: $24.71 |
| 10 |
581645101 |
LOBE.AXLE This part replaces 532194940. Price: $8.99 |
| 11 |
532007396 |
WASHER RACE BEARING THRUST This part replaces 532174697. Price: $3.99 |
| 11 |
69-9390 |
SHAFT-PEDAL Price: $71.62 |
| 12 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 12 |
532445266 |
YOKE.WELDMENT.STEER.BLACK This part replaces 532199519. Price: $17.99 |
| 13 |
32128-20 |
NUT-HF Price: $0.99 |
| 13 |
532184197 |
BRACKET.STEER.PNT.BLACK Price: $4.99 |
| 14 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 14 |
69-9030 |
POST-DEVICE, NEUTRAL Price: $39.15 |
| 15 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 15 |
532194943 |
BRACKET.STEER.PIVOT.RH This part replaces 532199511. Price: $3.99 |
| 16 |
532194944 |
BELLCRANK.STEER.YZP This part replaces 532199518. Price: $3.99 |
| 16 |
74-2700-03 |
CONTROL ROD ASM This part replaces 74-2700. Price: $132.44 |
| 17 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 17 |
532181847 |
PIN, STEERING BELLCRANK Price: $4.99 |
| 18 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 18 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 19 |
3220-5 |
NUT-JAM Price: $0.65 |
| 19 |
532405077 |
LINK.STEER.YOKE Price: $7.99 |
| 20 |
21-0141 |
RH BALL JOINT ASM Price: $109.12 |
| 20 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 21 |
3220-3 |
NUT-HJ Price: $0.28 |
| 21 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 22 |
532193885 |
SPRING LATCH Price: $3.99 |
| 23 |
3272-7 |
PIN-COTTER Price: $0.25 |
| 23 |
532182015 |
PIN, STEERING LEVER Price: $2.99 |
| 24 |
99-5347 |
Pedal-Traction Price: Call Us |
| 25 |
71-0440 |
ABRASIVE-PEDAL Price: $15.80 |
| 26 |
3245-32 |
SCREW-HSH Price: $3.59 |
| 27 |
43-6200 |
SPRING-COMPRESSION Price: $20.42 |
| 28 |
256-273 |
BUSHING-FLANGE Price: $4.55 |
| 29 |
71-0450 |
ABRASIVE-PEDAL, REAR Price: $10.39 |
| 30 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
