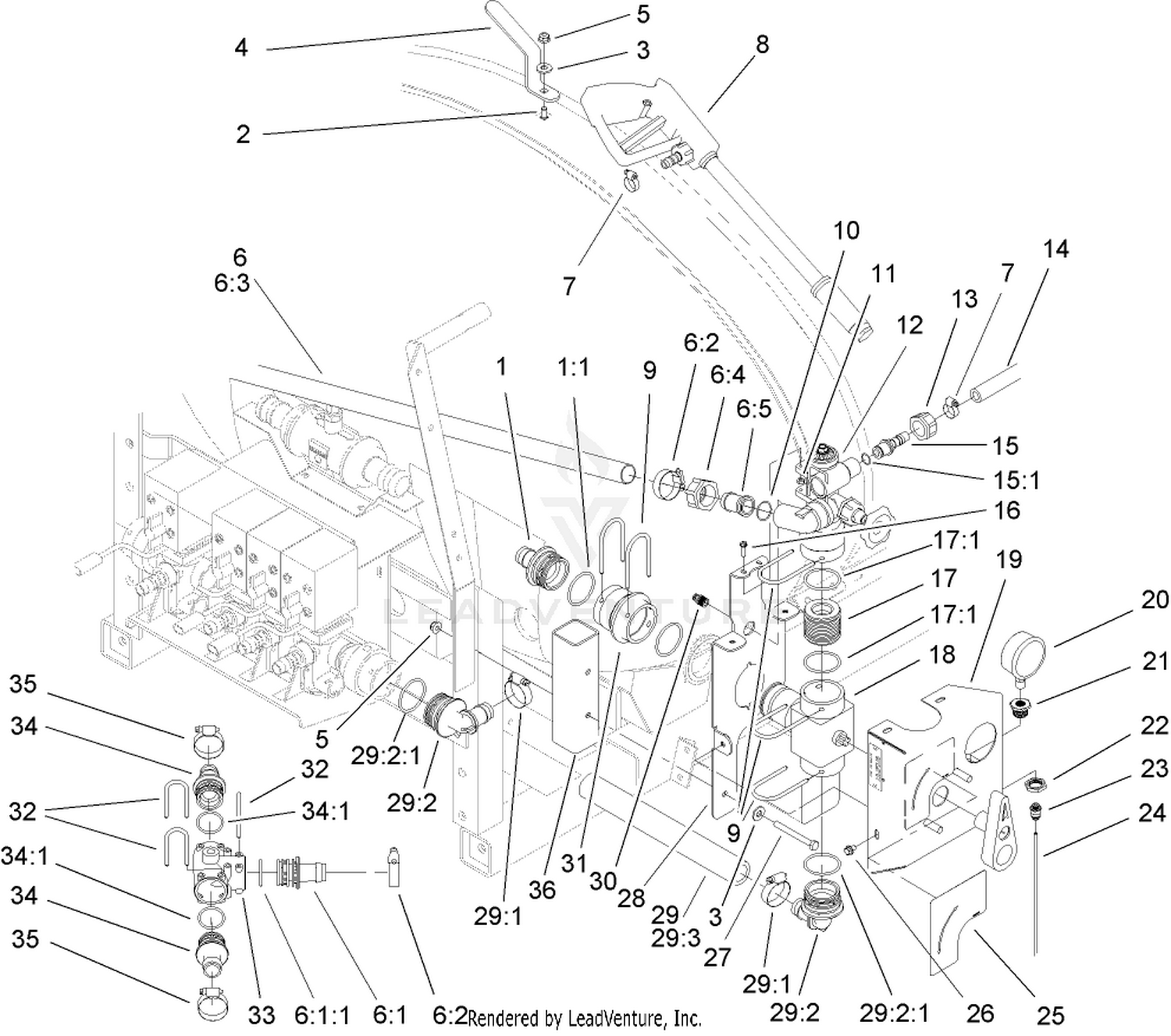

| Ref | Part Number | Description |
|---|
| 1 |
106-4932 |
HOSEBARB-STRAIGHT Price: $42.25 |
| 2 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 3 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 4 |
40153-03 |
HOOK-HOSE This part replaces 40153. Price: $24.35 |
| 5 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 7 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 8 |
100-6733 |
SPRAYER-HANDHELD Price: $257.98 |
| 9 |
100-8635 |
FORK Price: $4.91 |
| 10 |
100-6655 |
GASKET Price: $10.22 |
| 11 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 12 |
106-5096 |
MANIFOLD ASM Price: $684.85 |
| 13 |
99-0850 |
NUT Price: $10.38 |
| 14 |
107-8751 |
HOSE-SPRAY GUN Price: $105.53 |
| 15 |
106-5205 |
HOSEBARB ASM Price: $21.49 |
| 16 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 17 |
106-4947 |
CONNECTOR Price: $18.42 |
| 18 |
106-5095 |
BALL VALVE ASM Price: $674.33 |
| 19 |
119-4969-03 |
COVER This part replaces 106-5203-03. Price: $168.46 |
| 20 |
120-8547 |
GAUGE-PRESSURE This part replaces 100-8576. Price: $172.62 |
| 21 |
100-8665 |
REDUCER-GAUGE, PRESSURE Price: $62.08 |
| 22 |
100-8666 |
NUT-REDUCER Price: $11.29 |
| 23 |
100-8667 |
COUPLER-REDUCER Price: $47.60 |
| 24 |
106-5225 |
TUBE-PRESSURE GAUGE Price: $9.13 |
| 25 |
106-5211 |
DECAL-SPRAY CONTROL Price: $36.39 |
| 26 |
3234-26 |
SCREW-HHF Price: $2.69 |
| 27 |
322-14 |
SCREW-HH Price: $1.01 |
| 28 |
106-5201-03 |
BRACKET ASM Price: $147.50 |
| 30 |
100-8674 |
COUPLER-TUBE Price: $60.10 |
| 31 |
100-7050 |
BULKHEAD Price: $126.57 |
| 32 |
100-6708 |
FORK Price: $5.54 |
| 33 |
104-9041 |
TEE Price: $65.38 |
| 34 |
106-4935 |
HOSEBARB ASM Price: $35.72 |
| 35 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
