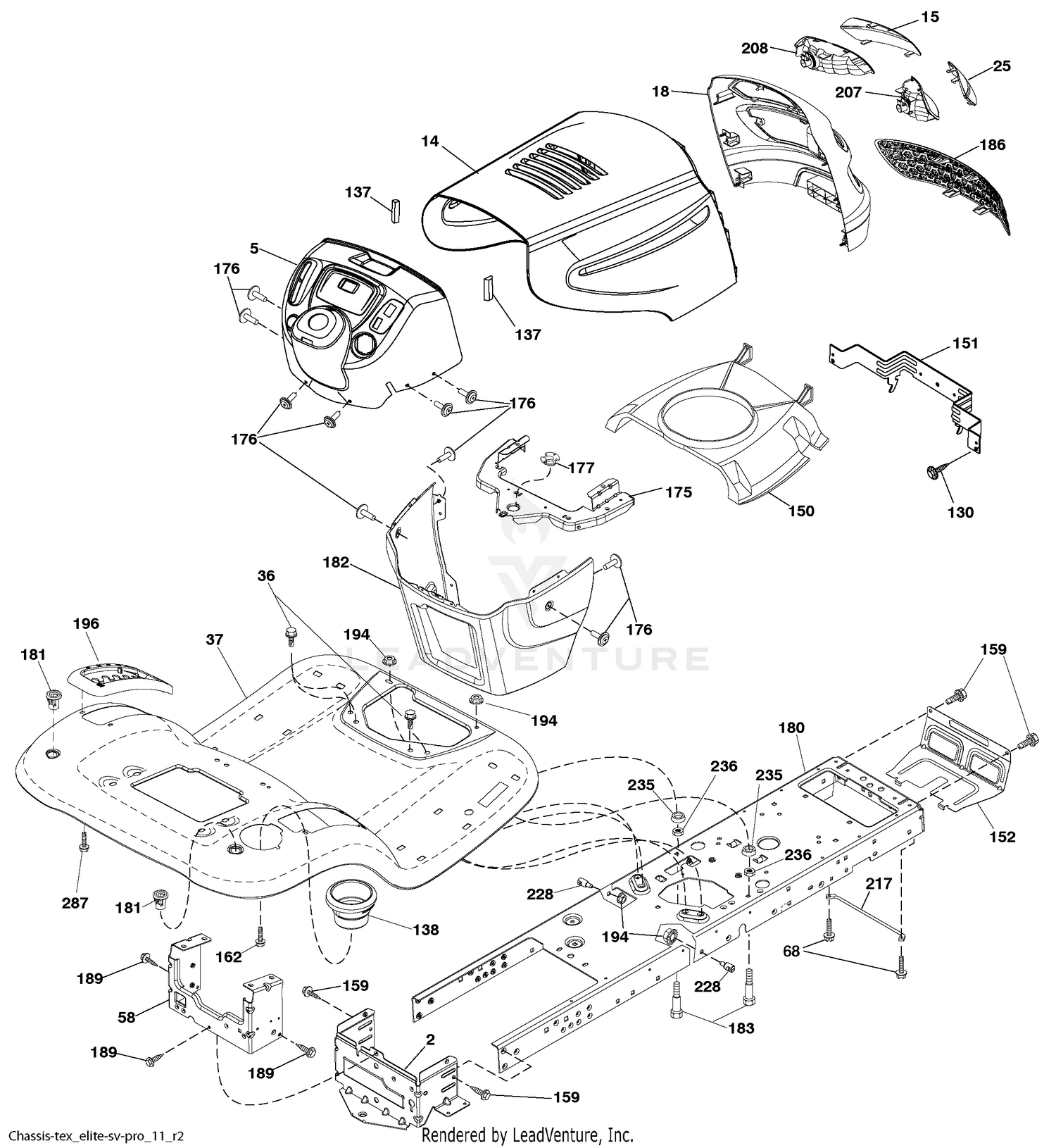

| Ref | Part Number | Description |
|---|
| 2 |
412282 |
Drawbar Lower Price: Call Us |
| 5 |
197783X428 |
Dash Price: Call Us |
| 10 |
112-7018 |
VALVE-INLET This part replaces 98-9494. Price: $41.87 |
| 14 |
183393X428 |
Hood Price: Call Us |
| 15 |
183834X599 |
Lens Grille LH Price: Call Us |
| 20 |
120-2564 |
VALVE-EXHAUST This part replaces 98-9495. Price: $34.21 |
| 25 |
183835X599 |
Lens Grille RH Price: Call Us |
| 30 |
98-9648 |
SPRING-VALVE Price: $13.49 |
| 36 |
17060512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 37 |
414872X428 |
Fender Price: Call Us |
| 40 |
107-9092 |
RETAINER-SPRING Price: $2.58 |
| 50 |
117-7572 |
COLLET-SPRING, VALVE This part replaces 98-9390. Price: $9.43 |
| 58 |
412280 |
Drawbar Upper Price: Call Us |
| 60 |
99-8385 |
SEAL-STEM, VALVE Price: $7.29 |
| 68 |
17490508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 70 |
98-9497 |
CAP-VALVE Price: $8.36 |
| 80 |
105-3790 |
R-ARM SHAFT ASM Price: $28.61 |
| 90 |
100-1762 |
BOLT This part replaces 100-9265. Price: $1.68 |
| 100 |
98-9505 |
BRACKET-ARM, ROCKER Price: $22.17 |
| 110 |
105-3758 |
PIN-SPRING Price: $0.57 |
| 120 |
98-9507 |
WASHER-SHAFT, ROCKER ARM Price: $0.85 |
| 130 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 130 |
416358 |
Screw #10 x 0.750 Price: Call Us |
| 137 |
184921 |
Bumper Hood Price: Call Us |
| 138 |
193224X428 |
Cupholder Price: Call Us |
| 140 |
98-9504 |
SPRING-ARM, ROCKER Price: $0.66 |
| 150 |
184322 |
Duct Heat Hood Price: Call Us |
| 151 |
407807 |
Bracket Pivot Price: Call Us |
| 152 |
194329 |
Shield Browning/Debris Price: Call Us |
| 159 |
17000612 |
Screw Hexwsh Thdrol 3/8-16 x 3/4 Price: Call Us |
| 160 |
98-9501 |
ROCKER ARM ASM Price: $28.78 |
| 162 |
142432 |
Screw Hex Wsh Hi-Lo 1/4 x 1/2 Price: Call Us |
| 170 |
98-9502 |
SCREW-ADJUSTING Price: $2.78 |
| 175 |
193243 |
Crossmember Price: Call Us |
| 176 |
400776 |
Screw 10-24 x 5/8 Wshd Qdrx Price: Call Us |
| 177 |
195228 |
Bushing Steering Price: Call Us |
| 180 |
194260 |
Chassis Price: Call Us |
| 180 |
98-9503 |
NUT Price: $1.33 |
| 181 |
193102X428 |
Bushing Mtg. Fender Crgo. Price: Call Us |
| 182 |
193057 |
Dash Lower Price: Call Us |
| 183 |
74780520 |
Bolt Fin Hex 5/16-18 x 1-1/4 Price: Call Us |
| 186 |
183829X428 |
Insert Grille Price: Call Us |
| 189 |
17000512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 190 |
98-9506 |
STUD Price: $5.98 |
| 194 |
73900500 |
Nut Lock Hex Flange 5/16-18 Price: Call Us |
| 196 |
414581 |
Console Asm. Deck Lift Price: Call Us |
| 200 |
98-9393 |
NUT Price: $2.72 |
| 207 |
183833 |
Bezel Grille RH Price: Call Us |
| 208 |
183832 |
Bezel Grille LH Price: Call Us |
| 217 |
409167 |
Rod Pivot Hood Price: Call Us |
| 228 |
195161 |
Stud Fastener Price: Call Us |
| 235 |
406129 |
Spacer Fender Price: Call Us |
| 236 |
73930500 |
Nut Center Lock 5/16-18 Price: Call Us |
